Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,336,479
ssj_ops@100% per JVM = 167,060
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 6, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Mar 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,323,254
Calibration 2     1,336,685
Calibration 3     1,341,223
ssj_ops@calibrated=1,338,954
100% 99.8% 1,338,954 1,336,479
90% 90.4% 1,205,059 1,210,633
80% 80.2% 1,071,163 1,073,565
70% 70.1% 937,268 938,294
60% 60.1% 803,372 804,470
50% 50.1% 669,477 671,015
40% 40.1% 535,582 536,360
30% 30.0% 401,686 401,675
20% 20.0% 267,791 268,009
10% 10.0% 133,895 134,386
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2670
CPU Characteristics: 8-Core, 2.60 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.3 GHz)
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-10600E ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-QTG213U7OFT.001 168,101
WIN-QTG213U7OFT.002 166,072
WIN-QTG213U7OFT.003 168,453
WIN-QTG213U7OFT.004 165,632
WIN-QTG213U7OFT.005 167,823
WIN-QTG213U7OFT.006 166,124
WIN-QTG213U7OFT.007 168,057
WIN-QTG213U7OFT.008 166,217
ssj_ops@100% 1,336,479
ssj_ops@100% per JVM 167,060

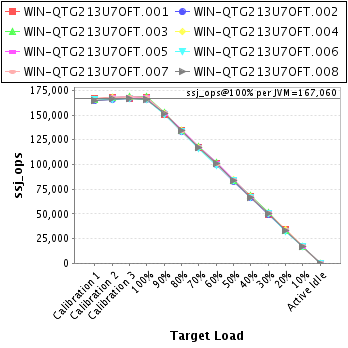

Graph of per-instance results
JVM 'WIN-QTG213U7OFT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,374
Calibration 2     167,304
Calibration 3     167,143
ssj_ops@calibrated=167,224
100% 100.5% 167,224 168,101
90% 90.0% 150,501 150,499
80% 80.4% 133,779 134,516
70% 70.0% 117,057 116,990
60% 60.3% 100,334 100,781
50% 50.3% 83,612 84,110
40% 40.4% 66,889 67,637
30% 29.7% 50,167 49,679
20% 20.5% 33,445 34,240
10% 9.9% 16,722 16,584
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,465
Calibration 2     166,078
Calibration 3     166,932
ssj_ops@calibrated=166,505
100% 99.7% 166,505 166,072
90% 91.0% 149,854 151,565
80% 80.2% 133,204 133,608
70% 70.6% 116,553 117,525
60% 60.0% 99,903 99,860
50% 50.0% 83,252 83,170
40% 39.8% 66,602 66,350
30% 29.9% 49,951 49,750
20% 19.9% 33,301 33,074
10% 9.9% 16,650 16,510
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,734
Calibration 2     167,915
Calibration 3     169,076
ssj_ops@calibrated=168,496
100% 100.0% 168,496 168,453
90% 90.4% 151,646 152,277
80% 80.0% 134,796 134,803
70% 69.9% 117,947 117,734
60% 60.4% 101,097 101,709
50% 49.7% 84,248 83,693
40% 40.4% 67,398 68,143
30% 30.2% 50,549 50,922
20% 19.9% 33,699 33,508
10% 9.9% 16,850 16,624
Active Idle   0 0

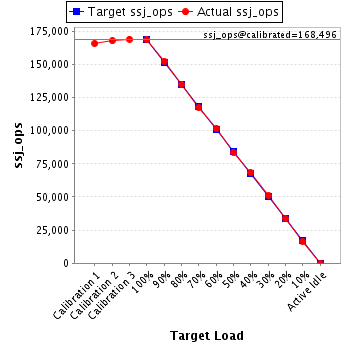

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,609
Calibration 2     167,768
Calibration 3     167,013
ssj_ops@calibrated=167,390
100% 98.9% 167,390 165,632
90% 90.4% 150,651 151,254
80% 80.0% 133,912 133,921
70% 70.0% 117,173 117,176
60% 60.0% 100,434 100,351
50% 50.5% 83,695 84,541
40% 40.1% 66,956 67,090
30% 29.9% 50,217 50,014
20% 20.5% 33,478 34,300
10% 10.1% 16,739 16,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,094
Calibration 2     167,932
Calibration 3     168,697
ssj_ops@calibrated=168,314
100% 99.7% 168,314 167,823
90% 90.0% 151,483 151,552
80% 80.4% 134,651 135,352
70% 70.0% 117,820 117,798
60% 60.4% 100,989 101,677
50% 50.2% 84,157 84,563
40% 39.9% 67,326 67,076
30% 30.0% 50,494 50,458
20% 19.9% 33,663 33,558
10% 10.1% 16,831 16,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,339
Calibration 2     165,254
Calibration 3     166,902
ssj_ops@calibrated=166,078
100% 100.0% 166,078 166,124
90% 90.4% 149,470 150,147
80% 80.3% 132,862 133,342
70% 69.9% 116,254 116,018
60% 59.5% 99,647 98,883
50% 50.2% 83,039 83,366
40% 40.3% 66,431 66,846
30% 30.2% 49,823 50,131
20% 19.5% 33,216 32,353
10% 10.2% 16,608 16,889
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,260
Calibration 2     168,187
Calibration 3     168,407
ssj_ops@calibrated=168,297
100% 99.9% 168,297 168,057
90% 90.5% 151,467 152,257
80% 79.4% 134,638 133,652
70% 70.1% 117,808 117,981
60% 59.5% 100,978 100,116
50% 49.9% 84,149 83,931
40% 39.6% 67,319 66,608
30% 30.0% 50,489 50,513
20% 20.2% 33,659 33,929
10% 10.2% 16,830 17,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QTG213U7OFT.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,378
Calibration 2     166,247
Calibration 3     167,053
ssj_ops@calibrated=166,650
100% 99.7% 166,650 166,217
90% 90.7% 149,985 151,081
80% 80.6% 133,320 134,371
70% 70.2% 116,655 117,070
60% 60.7% 99,990 101,092
50% 50.2% 83,325 83,640
40% 40.0% 66,660 66,611
30% 30.1% 49,995 50,209
20% 19.8% 33,330 33,048
10% 10.0% 16,665 16,707
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
