SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd RH2288 V2 | SPECpower_ssj2008 = 4,590 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 6, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Dec-2011 | Publication: | Mar 28, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

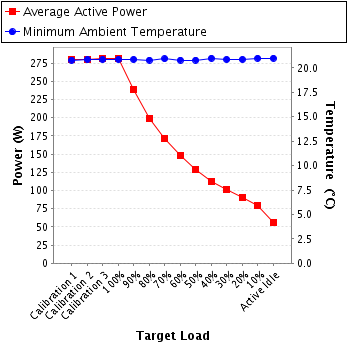

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 280 | 20.8 |
| Calibration 2 | 281 | 20.9 |
| Calibration 3 | 281 | 20.9 |
| 100% | 282 | 20.9 |
| 90% | 238 | 20.9 |
| 80% | 200 | 20.8 |
| 70% | 172 | 20.9 |
| 60% | 148 | 20.8 |
| 50% | 128 | 20.8 |
| 40% | 112 | 21.0 |
| 30% | 102 | 20.9 |
| 20% | 90.5 | 20.9 |
| 10% | 79.4 | 21.0 |
| Active Idle | 55.6 | 21.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K630156 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | B11004997-0007 |
| Date of Calibration: | 20-Jun-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 225 | 300.0 | 1.25 | 2.0 | 0.992 | 280 | 0.6% |
| Calibration 2 | 226 | 300.0 | 1.25 | 2.0 | 0.990 | 281 | 0.6% |
| Calibration 3 | 227 | 300.0 | 1.25 | 2.0 | 0.988 | 281 | 0.6% |
| 100% | 228 | 300.0 | 1.25 | 2.0 | 0.988 | 282 | 0.6% |
| 90% | 227 | 300.0 | 1.08 | 2.0 | 0.983 | 238 | 0.7% |
| 80% | 226 | 300.0 | 0.900 | 1.0 | 0.980 | 200 | 0.6% |
| 70% | 226 | 300.0 | 0.774 | 1.0 | 0.980 | 172 | 0.6% |
| 60% | 226 | 300.0 | 0.662 | 1.0 | 0.988 | 148 | 0.6% |
| 50% | 226 | 300.0 | 0.577 | 1.0 | 0.983 | 128 | 0.7% |
| 40% | 226 | 300.0 | 0.509 | 1.0 | 0.978 | 112 | 0.7% |
| 30% | 225 | 300.0 | 0.464 | 0.5 | 0.973 | 102 | 0.6% |
| 20% | 225 | 300.0 | 0.417 | 0.5 | 0.965 | 90.5 | 0.6% |
| 10% | 224 | 300.0 | 0.371 | 0.5 | 0.955 | 79.4 | 0.7% |
| Active Idle | 224 | 300.0 | 0.271 | 0.5 | 0.918 | 55.6 | 0.8% |
