Dell Inc. PowerEdge R620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,236,124
ssj_ops@100% per JVM = 154,516
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 17, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Mar 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,229,037
Calibration 2     1,239,362
Calibration 3     1,240,542
ssj_ops@calibrated=1,239,952
100% 99.7% 1,239,952 1,236,124
90% 89.8% 1,115,957 1,113,736
80% 80.3% 991,961 995,366
70% 69.7% 867,966 864,465
60% 60.2% 743,971 746,371
50% 50.0% 619,976 619,810
40% 40.0% 495,981 496,059
30% 30.2% 371,986 374,226
20% 20.1% 247,990 248,701
10% 10.0% 123,995 124,454
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R620
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: 1U
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3, B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 495
Power Supply Details: Dell P/N 13MD5
Disk Drive: 1 x 100GB SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Dual Port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver plan set in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: X48 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
OrcaPT-Power.001 153,163
OrcaPT-Power.002 153,877
OrcaPT-Power.003 155,889
OrcaPT-Power.004 155,059
OrcaPT-Power.005 154,300
OrcaPT-Power.006 154,389
OrcaPT-Power.007 154,887
OrcaPT-Power.008 154,560
ssj_ops@100% 1,236,124
ssj_ops@100% per JVM 154,516

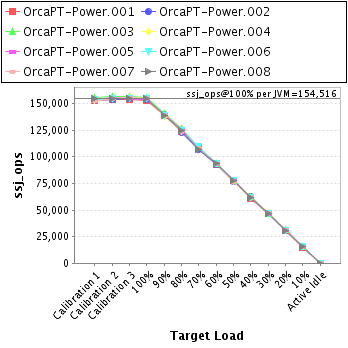

Graph of per-instance results
JVM 'OrcaPT-Power.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,612
Calibration 2     154,214
Calibration 3     153,792
ssj_ops@calibrated=154,003
100% 99.5% 154,003 153,163
90% 89.8% 138,603 138,341
80% 80.4% 123,202 123,749
70% 70.0% 107,802 107,759
60% 60.3% 92,402 92,829
50% 50.3% 77,002 77,463
40% 39.7% 61,601 61,190
30% 30.2% 46,201 46,582
20% 20.1% 30,801 30,904
10% 9.9% 15,400 15,220
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,262
Calibration 2     154,226
Calibration 3     154,652
ssj_ops@calibrated=154,439
100% 99.6% 154,439 153,877
90% 90.5% 138,995 139,693
80% 79.7% 123,551 123,078
70% 69.2% 108,107 106,910
60% 59.9% 92,663 92,435
50% 49.6% 77,219 76,610
40% 40.8% 61,775 63,013
30% 30.4% 46,332 46,964
20% 20.2% 30,888 31,165
10% 10.0% 15,444 15,428
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,382
Calibration 2     156,306
Calibration 3     156,931
ssj_ops@calibrated=156,618
100% 99.5% 156,618 155,889
90% 90.0% 140,956 140,964
80% 80.7% 125,295 126,444
70% 69.3% 109,633 108,580
60% 59.7% 93,971 93,576
50% 49.9% 78,309 78,083
40% 39.9% 62,647 62,485
30% 29.9% 46,985 46,856
20% 20.1% 31,324 31,473
10% 10.1% 15,662 15,782
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,301
Calibration 2     154,936
Calibration 3     155,295
ssj_ops@calibrated=155,116
100% 100.0% 155,116 155,059
90% 89.1% 139,604 138,233
80% 80.1% 124,092 124,223
70% 70.0% 108,581 108,507
60% 60.3% 93,069 93,573
50% 49.7% 77,558 77,111
40% 39.6% 62,046 61,447
30% 30.7% 46,535 47,693
20% 19.8% 31,023 30,734
10% 10.4% 15,512 16,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,120
Calibration 2     155,606
Calibration 3     154,978
ssj_ops@calibrated=155,292
100% 99.4% 155,292 154,300
90% 89.9% 139,763 139,619
80% 80.9% 124,234 125,601
70% 69.7% 108,705 108,307
60% 59.9% 93,175 93,076
50% 50.6% 77,646 78,604
40% 39.8% 62,117 61,776
30% 29.7% 46,588 46,046
20% 20.3% 31,058 31,592
10% 9.9% 15,529 15,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,727
Calibration 2     154,914
Calibration 3     154,326
ssj_ops@calibrated=154,620
100% 99.9% 154,620 154,389
90% 90.1% 139,158 139,246
80% 80.4% 123,696 124,275
70% 70.7% 108,234 109,331
60% 60.6% 92,772 93,750
50% 50.4% 77,310 77,923
40% 40.2% 61,848 62,126
30% 30.3% 46,386 46,848
20% 20.0% 30,924 30,990
10% 9.9% 15,462 15,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,147
Calibration 2     154,761
Calibration 3     155,528
ssj_ops@calibrated=155,144
100% 99.8% 155,144 154,887
90% 89.6% 139,630 138,970
80% 79.6% 124,116 123,504
70% 69.6% 108,601 108,036
60% 60.2% 93,087 93,332
50% 49.4% 77,572 76,654
40% 40.1% 62,058 62,289
30% 30.2% 46,543 46,927
20% 20.2% 31,029 31,386
10% 10.1% 15,514 15,701
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'OrcaPT-Power.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,486
Calibration 2     154,399
Calibration 3     155,039
ssj_ops@calibrated=154,719
100% 99.9% 154,719 154,560
90% 89.6% 139,247 138,670
80% 80.5% 123,775 124,492
70% 69.2% 108,303 107,036
60% 60.6% 92,831 93,801
50% 50.0% 77,360 77,362
40% 39.9% 61,888 61,734
30% 29.9% 46,416 46,310
20% 19.7% 30,944 30,456
10% 10.0% 15,472 15,469
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
