SPECpower_ssj2008 Host 'WIN-K1IRTERJUTK' Performance Report

SPECpower_ssj2008

Host 'WIN-K1IRTERJUTK' Performance Report

Fujitsu PRIMERGY RX300 S7 (Intel Xeon E5-2660)			ssj_ops@100% = 1,343,300 ssj_ops@100% per JVM = 83,956
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Paderborn, NRW, Germany	Test Date:	Feb 16, 2012
Hardware Availability:	Apr-2012	Software Availability:	Dec-2011	Publication:	Mar 21, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,338,204
Calibration 2			1,345,144
Calibration 3			1,343,491
ssj_ops@calibrated=1,344,317
100%	99.9%	1,344,317	1,343,300
90%	90.0%	1,209,886	1,209,714
80%	80.2%	1,075,454	1,078,110
70%	69.8%	941,022	938,069
60%	60.2%	806,590	808,997
50%	50.1%	672,159	673,417
40%	40.0%	537,727	537,643
30%	30.0%	403,295	403,053
20%	20.0%	268,863	269,431
10%	9.9%	134,432	133,103
Active Idle		0	0

System Under Test

Set: 'RX300 S7'

Set Identifier:	RX300 S7
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX300 S7 (Intel Xeon E5-2660)
Form Factor:	2U
CPU Name:	Intel Xeon E5-2660
CPU Characteristics:	8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz):	2200
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1, 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	32
# and size of DIMM:	8 x 4096 MB
Memory Details:	4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W):	1 x 450
Power Supply Details:	Fujitsu Technology Solutions S26113-E575-E10
Disk Drive:	1 x 32GB, SSD, 2.5" SATA, S26361-F3298-E320
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version:	Version 6.1.7601 Service Pack 1 Build 7601
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC00000000]
JVM Instances:	16
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	R1.1.0
Management Firmware Version:	6.45
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	ServerView Agents for Windows, ServerView RAID Manager

Boot Firmware Settings

Set "Adjacent Sector Prefetch = Disable" in BIOS.
Set "Hardware Prefetch = Disable" in BIOS.
Set "DCU Streamer Prefetch = Disable" in BIOS.
Set "Memory Speed = Low-Voltage optimized" in BIOS. (effective memory frequency = 1333MHz)
Set "USB Configuration = Disable External Ports" in BIOS.
Set "QPI Link Speed = 6.4GT/s" in BIOS.
Set "P-State coordination = SW_ANY" in BIOS.
Set "Intel Virtualization Technology = Disable" in BIOS.
Set "SAS/SATA OpROM = LSI MegaRAID" in BIOS.
Set "ASPM Support = Auto" in BIOS.

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

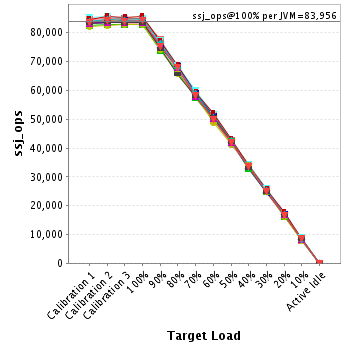

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-K1IRTERJUTK.001	85,048
WIN-K1IRTERJUTK.002	83,435
WIN-K1IRTERJUTK.003	83,840
WIN-K1IRTERJUTK.004	83,635
WIN-K1IRTERJUTK.005	83,036
WIN-K1IRTERJUTK.006	85,009
WIN-K1IRTERJUTK.007	83,056
WIN-K1IRTERJUTK.008	85,121
WIN-K1IRTERJUTK.009	85,535
WIN-K1IRTERJUTK.010	83,926
WIN-K1IRTERJUTK.011	82,858
WIN-K1IRTERJUTK.012	82,863
WIN-K1IRTERJUTK.013	83,558
WIN-K1IRTERJUTK.014	84,524
WIN-K1IRTERJUTK.015	83,476
WIN-K1IRTERJUTK.016	84,379
ssj_ops@100%	1,343,300
ssj_ops@100% per JVM	83,956

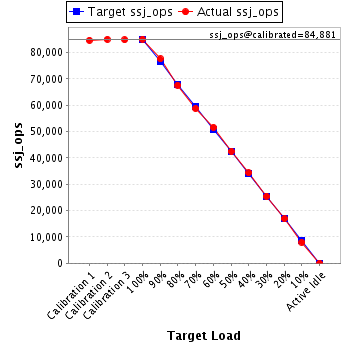

JVM 'WIN-K1IRTERJUTK.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			84,652
Calibration 2			84,983
Calibration 3			84,779
ssj_ops@calibrated=84,881
100%	100.2%	84,881	85,048
90%	91.4%	76,393	77,550
80%	79.6%	67,905	67,565
70%	69.2%	59,417	58,738
60%	60.7%	50,929	51,504
50%	50.0%	42,441	42,465
40%	40.4%	33,952	34,268
30%	30.0%	25,464	25,479
20%	19.9%	16,976	16,915
10%	9.4%	8,488	7,966
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,304
Calibration 2			83,657
Calibration 3			83,617
ssj_ops@calibrated=83,637
100%	99.8%	83,637	83,435
90%	90.9%	75,273	75,998
80%	80.0%	66,909	66,921
70%	70.5%	58,546	58,977
60%	59.8%	50,182	49,981
50%	49.3%	41,818	41,201
40%	40.0%	33,455	33,462
30%	29.8%	25,091	24,896
20%	20.0%	16,727	16,737
10%	10.1%	8,364	8,458
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,397
Calibration 2			83,766
Calibration 3			83,571
ssj_ops@calibrated=83,668
100%	100.2%	83,668	83,840
90%	89.1%	75,302	74,584
80%	80.0%	66,935	66,964
70%	69.5%	58,568	58,120
60%	60.4%	50,201	50,575
50%	50.5%	41,834	42,277
40%	39.7%	33,467	33,200
30%	30.4%	25,101	25,457
20%	20.3%	16,734	16,982
10%	10.1%	8,367	8,424
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

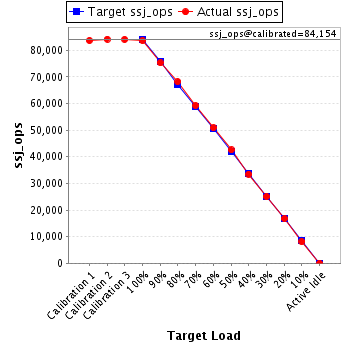

JVM 'WIN-K1IRTERJUTK.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,704
Calibration 2			84,187
Calibration 3			84,121
ssj_ops@calibrated=84,154
100%	99.4%	84,154	83,635
90%	89.5%	75,739	75,296
80%	81.0%	67,323	68,182
70%	70.5%	58,908	59,290
60%	60.4%	50,492	50,860
50%	50.6%	42,077	42,588
40%	39.8%	33,662	33,523
30%	29.8%	25,246	25,100
20%	19.9%	16,831	16,786
10%	9.7%	8,415	8,133
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,379
Calibration 2			83,469
Calibration 3			83,476
ssj_ops@calibrated=83,473
100%	99.5%	83,473	83,036
90%	91.1%	75,125	76,060
80%	80.4%	66,778	67,121
70%	69.9%	58,431	58,311
60%	60.5%	50,084	50,523
50%	50.3%	41,736	41,949
40%	40.4%	33,389	33,701
30%	29.6%	25,042	24,693
20%	19.3%	16,695	16,143
10%	9.8%	8,347	8,172
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			85,256
Calibration 2			85,700
Calibration 3			84,898
ssj_ops@calibrated=85,299
100%	99.7%	85,299	85,009
90%	90.8%	76,769	77,444
80%	80.4%	68,239	68,598
70%	70.1%	59,709	59,833
60%	60.6%	51,179	51,732
50%	49.4%	42,649	42,115
40%	40.0%	34,120	34,147
30%	30.6%	25,590	26,098
20%	19.9%	17,060	16,974
10%	10.3%	8,530	8,774
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

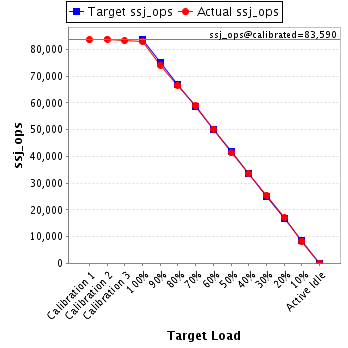

JVM 'WIN-K1IRTERJUTK.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,605
Calibration 2			83,886
Calibration 3			83,295
ssj_ops@calibrated=83,590
100%	99.4%	83,590	83,056
90%	88.7%	75,231	74,161
80%	79.8%	66,872	66,722
70%	70.5%	58,513	58,913
60%	60.1%	50,154	50,236
50%	49.4%	41,795	41,328
40%	40.2%	33,436	33,591
30%	30.3%	25,077	25,362
20%	20.3%	16,718	17,008
10%	9.9%	8,359	8,235
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,847
Calibration 2			84,686
Calibration 3			85,048
ssj_ops@calibrated=84,867
100%	100.3%	84,867	85,121
90%	90.5%	76,380	76,805
80%	79.7%	67,893	67,664
70%	69.5%	59,407	59,007
60%	60.5%	50,920	51,344
50%	50.2%	42,433	42,588
40%	40.5%	33,947	34,377
30%	29.7%	25,460	25,213
20%	20.6%	16,973	17,462
10%	9.9%	8,487	8,375
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			84,749
Calibration 2			85,490
Calibration 3			85,337
ssj_ops@calibrated=85,413
100%	100.1%	85,413	85,535
90%	90.0%	76,872	76,851
80%	80.2%	68,331	68,513
70%	69.4%	59,789	59,291
60%	60.7%	51,248	51,862
50%	50.3%	42,707	42,949
40%	39.5%	34,165	33,770
30%	30.0%	25,624	25,603
20%	20.5%	17,083	17,528
10%	9.9%	8,541	8,486
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,627
Calibration 2			83,673
Calibration 3			84,192
ssj_ops@calibrated=83,933
100%	100.0%	83,933	83,926
90%	89.3%	75,539	74,939
80%	81.3%	67,146	68,201
70%	70.1%	58,753	58,868
60%	60.6%	50,360	50,875
50%	49.9%	41,966	41,892
40%	39.3%	33,573	32,970
30%	29.5%	25,180	24,732
20%	20.3%	16,787	17,066
10%	9.9%	8,393	8,295
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

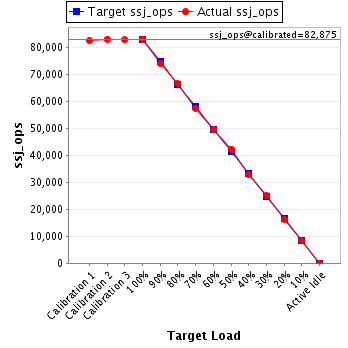

JVM 'WIN-K1IRTERJUTK.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			82,535
Calibration 2			83,028
Calibration 3			82,721
ssj_ops@calibrated=82,875
100%	100.0%	82,875	82,858
90%	89.2%	74,587	73,944
80%	80.2%	66,300	66,495
70%	69.4%	58,012	57,496
60%	59.8%	49,725	49,539
50%	51.0%	41,437	42,232
40%	39.7%	33,150	32,922
30%	30.1%	24,862	24,974
20%	19.6%	16,575	16,249
10%	10.1%	8,287	8,333
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			82,196
Calibration 2			82,554
Calibration 3			82,929
ssj_ops@calibrated=82,741
100%	100.1%	82,741	82,863
90%	89.6%	74,467	74,124
80%	79.6%	66,193	65,825
70%	70.4%	57,919	58,227
60%	58.8%	49,645	48,693
50%	50.0%	41,371	41,388
40%	41.2%	33,097	34,062
30%	30.2%	24,822	25,011
20%	19.8%	16,548	16,358
10%	9.5%	8,274	7,828
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,089
Calibration 2			83,692
Calibration 3			83,594
ssj_ops@calibrated=83,643
100%	99.9%	83,643	83,558
90%	90.5%	75,279	75,680
80%	81.0%	66,914	67,791
70%	69.4%	58,550	58,039
60%	60.2%	50,186	50,390
50%	49.9%	41,821	41,776
40%	40.0%	33,457	33,479
30%	30.3%	25,093	25,349
20%	20.3%	16,729	16,995
10%	9.8%	8,364	8,185
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,914
Calibration 2			84,613
Calibration 3			84,356
ssj_ops@calibrated=84,484
100%	100.0%	84,484	84,524
90%	90.5%	76,036	76,426
80%	80.3%	67,588	67,851
70%	69.6%	59,139	58,767
60%	59.7%	50,691	50,464
50%	50.5%	42,242	42,622
40%	39.5%	33,794	33,340
30%	30.0%	25,345	25,378
20%	20.0%	16,897	16,895
10%	9.8%	8,448	8,294
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,389
Calibration 2			83,578
Calibration 3			83,509
ssj_ops@calibrated=83,544
100%	99.9%	83,544	83,476
90%	89.2%	75,189	74,526
80%	78.6%	66,835	65,682
70%	69.3%	58,481	57,881
60%	60.6%	50,126	50,669
50%	50.5%	41,772	42,201
40%	39.7%	33,417	33,186
30%	29.7%	25,063	24,808
20%	19.9%	16,709	16,651
10%	10.2%	8,354	8,558
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-K1IRTERJUTK.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			83,558
Calibration 2			84,182
Calibration 3			84,049
ssj_ops@calibrated=84,116
100%	100.3%	84,116	84,379
90%	89.6%	75,704	75,327
80%	80.9%	67,293	68,015
70%	69.3%	58,881	58,311
60%	59.1%	50,469	49,750
50%	49.7%	42,058	41,845
40%	40.0%	33,646	33,646
30%	29.6%	25,235	24,899
20%	19.8%	16,823	16,682
10%	10.2%	8,412	8,587
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
