Fujitsu PRIMERGY RX300 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,032 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Feb 16, 2012
Hardware Availability: Apr-2012 Software Availability: Dec-2011 Publication: Mar 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 244 20.6
Calibration 2 245 20.6
Calibration 3 245 20.6
100% 245 20.6
90% 217 20.6
80% 187 20.6
70% 156 20.6
60% 134 20.6
50% 117 20.6
40% 105 20.5
30% 94.9 20.5
20% 85.3 20.5
10% 74.9 20.5
Active Idle 53.1 20.6

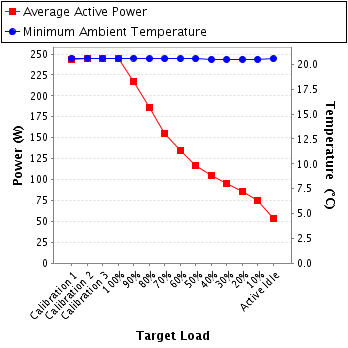

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU-1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 250.0 1.08 2.5 0.990 244 0.1%
Calibration 2 228 250.0 1.08 2.5 0.990 245 0.1%
Calibration 3 229 250.0 1.08 2.5 0.990 245 0.1%
100% 229 250.0 1.08 2.5 0.990 245 0.1%
90% 229 250.0 0.969 2.5 0.986 217 0.2%
80% 229 250.0 0.837 2.5 0.982 187 0.2%
70% 229 250.0 0.696 2.5 0.981 156 0.2%
60% 228 250.0 0.601 2.5 0.980 134 0.2%
50% 228 250.0 0.526 2.5 0.978 117 0.3%
40% 228 250.0 0.474 2.5 0.975 105 0.3%
30% 227 250.0 0.429 2.5 0.971 94.9 0.3%
20% 228 250.0 0.388 2.5 0.966 85.3 0.4%
10% 229 250.0 0.342 0.6 0.958 74.9 0.1%
Active Idle 229 250.0 0.251 0.6 0.924 53.1 0.2%
Power details for pwr1
