IBM Corporation IBM System x3500 M4 SPECpower_ssj2008 = 4,708 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Mar 3, 2012
Hardware Availability: Mar-2012 Software Availability: Jun-2012 Publication: Mar 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 1,426,130 247 5,784
90% 89.9% 1,286,180 233 5,526
80% 80.0% 1,143,879 217 5,273
70% 70.0% 1,000,861 196 5,117
60% 60.1% 860,117 169 5,091
50% 50.0% 714,413 142 5,024
40% 40.0% 572,760 123 4,672
30% 29.9% 427,709 107 4,016
20% 19.8% 283,661 94.7 2,997
10% 9.9% 141,753 85.7 1,655
Active Idle 0 56.6 0
∑ssj_ops / ∑power = 4,708

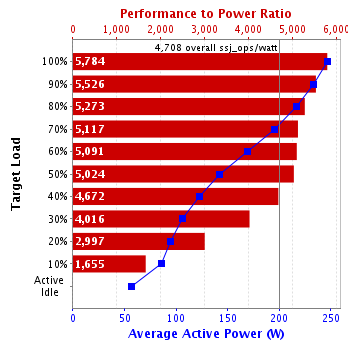

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3500 M4
Form Factor: 5U
CPU Name: Intel Xeon E5-2680
CPU Characteristics: 8-Core, 2.70 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 1Rx8 PC3L-10600E; slots 1, 4, 9, 12, 13, 16, 21 and 24 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: IBM 750w PSU(43X3313)
Disk Drive: 1 x 1TB 2.5 SATA(IBM P/N: 81Y9732)
Disk Controller: none
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows 7 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 111M
Management Firmware Version: 25K
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IBM Corporation
Model: x3650 M3
CPU Description: Intel Xeon L5506
Memory amount (GB): 24
Software
Operating System (OS): Windows 2008 R2 SP1
JVM Vendor: IBM
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
CCS Version: 1.2.5
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 11-05-BAC-032-05
Date of Calibration: 06-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Digi, Inc.
Model: Watchport/H USB
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 247 21.3
90% 233 21.4
80% 217 21.5
70% 196 21.7
60% 169 21.8
50% 142 21.8
40% 123 21.8
30% 107 21.8
20% 94.7 21.9
10% 85.7 21.9
Active Idle 56.6 21.9
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.3 63
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,385,786
Calibration 2     1,430,282
Calibration 3     1,430,036
ssj_ops@calibrated=1,430,159
100% 99.7% 1,430,159 1,426,130
90% 89.9% 1,287,143 1,286,180
80% 80.0% 1,144,127 1,143,879
70% 70.0% 1,001,112 1,000,861
60% 60.1% 858,096 860,117
50% 50.0% 715,080 714,413
40% 40.0% 572,064 572,760
30% 29.9% 429,048 427,709
20% 19.8% 286,032 283,661
10% 9.9% 143,016 141,753
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
