SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR385 F1 | SPECpower_ssj2008 = 2,506 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jan 23, 2011 |
| Hardware Availability: | Jan-2012 | Software Availability: | Dec-2010 | Publication: | Mar 14, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

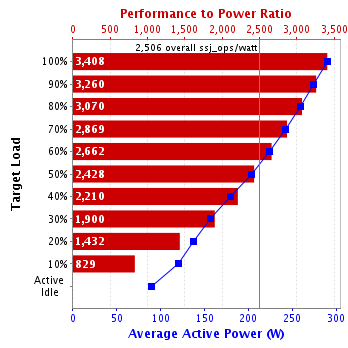

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 987,946 | 290 | 3,408 |
| 90% | 90.0% | 892,932 | 274 | 3,260 |
| 80% | 80.1% | 794,852 | 259 | 3,070 |
| 70% | 70.0% | 694,471 | 242 | 2,869 |
| 60% | 60.2% | 596,663 | 224 | 2,662 |
| 50% | 49.9% | 495,157 | 204 | 2,428 |
| 40% | 40.0% | 396,846 | 180 | 2,210 |
| 30% | 30.1% | 298,426 | 157 | 1,900 |
| 20% | 19.8% | 196,207 | 137 | 1,432 |
| 10% | 10.0% | 99,534 | 120 | 829 |
| Active Idle | 0 | 89.8 | 0 | |
| ∑ssj_ops / ∑power = | 2,506 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR385 F1 |
| Form Factor: | 2U |
| CPU Name: | AMD Opteron 6238 |
| CPU Characteristics: | 12-Core, 2.60 GHz, 16 MB L3 cache |
| CPU Frequency (MHz): | 2600 |
| CPU(s) Enabled: | 24 cores, 2 chips, 12 cores/chip |
| Hardware Threads: | 24 (1 / core) |
| CPU(s) Orderable: | 2,4 chips |
| Primary Cache: | 384 KB I + 192 KB D on chip per chip |
| Secondary Cache: | 12 MB I+D on chip per chip, 2 MB shared / 2 cores |
| Tertiary Cache: | 16 MB I+D on chip per chip, 8 MB shard / 6 cores |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 8 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 720 |
| Power Supply Details: | PWS-721P-1R |
| Disk Drive: | 1 x 300GB SATA 10K RPM 2.5" HDD, Acer part #TC.32700.088 |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp |
| JVM Affinity: | start /affinity [0x7, 0x38, 0x1C0, 0xE00, 0x7000, 0x38000, 0x1C0000, 0xE00000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P03T01 |
| Management Firmware Version: | 1.40 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR160 F1 |
| CPU Description: | Intel L5520 |
| Memory amount (GB): | 3 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-205-07 |
| Date of Calibration: | 16-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 290 | 24.4 |
| 90% | 274 | 24.3 |
| 80% | 259 | 24.0 |
| 70% | 242 | 24.1 |
| 60% | 224 | 24.4 |
| 50% | 204 | 24.6 |
| 40% | 180 | 24.6 |
| 30% | 157 | 24.6 |
| 20% | 137 | 24.7 |
| 10% | 120 | 24.7 |
| Active Idle | 89.8 | 24.7 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 24.0 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 987,893 | ||
| Calibration 2 | 992,352 | ||
| Calibration 3 | 991,265 | ||
| ssj_ops@calibrated=991,808 | |||
| 100% | 99.6% | 991,808 | 987,946 |
| 90% | 90.0% | 892,627 | 892,932 |
| 80% | 80.1% | 793,447 | 794,852 |
| 70% | 70.0% | 694,266 | 694,471 |
| 60% | 60.2% | 595,085 | 596,663 |
| 50% | 49.9% | 495,904 | 495,157 |
| 40% | 40.0% | 396,723 | 396,846 |
| 30% | 30.1% | 297,542 | 298,426 |
| 20% | 19.8% | 198,362 | 196,207 |
| 10% | 10.0% | 99,181 | 99,534 |
| Active Idle | 0 | 0 | |
