NEC Corporation Express5800/T120b-E ssj_ops@100% = 865,618
ssj_ops@100% per JVM = 72,135
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Nov 22, 2011
Hardware Availability: Mar-2011 Software Availability: Apr-2011 Publication: Dec 14, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     868,898
Calibration 2     874,875
Calibration 3     868,274
ssj_ops@calibrated=871,575
100% 99.3% 871,575 865,618
90% 90.3% 784,417 786,688
80% 80.1% 697,260 698,051
70% 69.7% 610,102 607,826
60% 59.8% 522,945 521,391
50% 50.1% 435,787 436,757
40% 39.7% 348,630 345,919
30% 30.1% 261,472 262,071
20% 20.2% 174,315 176,061
10% 10.0% 87,157 86,784
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/T120b-E (Intel Xeon X5650, 2.66 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/T120b-E
Form Factor: Tower
CPU Name: Intel Xeon X5650
CPU Characteristics: 6 core, 2.66 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2666
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600R ECC CL9; slots CPU1_DIMM1, CPU1_DIMM2, CPU1_DIMM3, CPU2_DIMM1, CPU2_DIMM2 and CPU2_DIMM3 populated
Power Supply Quantity and Rating (W): 1 x 665
Power Supply Details: Delta DPS-665AB C, NEC P/N: N8181-78
Disk Drive: 1 x 100GB SSD SATA, NEC P/N:N8150-707
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: 1 x Internal SATA Cable, NEC P/N:K410-232(00); 1 x 2.5-inch HDD Cage, NEC P/N:N8154-24
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -Xms1500m -Xmx1500m -Xmn1350m -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 4.6.3A19
Management Firmware Version: 1.19
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
T120b-E.001 70,099
T120b-E.002 72,119
T120b-E.003 72,323
T120b-E.004 70,973
T120b-E.005 72,531
T120b-E.006 72,738
T120b-E.007 72,094
T120b-E.008 71,633
T120b-E.009 72,123
T120b-E.010 71,925
T120b-E.011 74,072
T120b-E.012 72,988
ssj_ops@100% 865,618
ssj_ops@100% per JVM 72,135

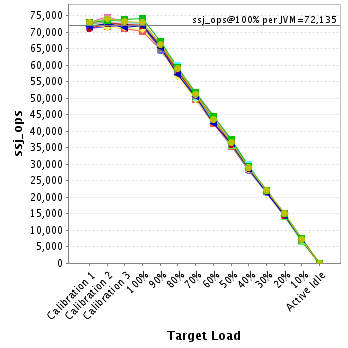

Graph of per-instance results
JVM 'T120b-E.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,556
Calibration 2     71,896
Calibration 3     71,022
ssj_ops@calibrated=71,459
100% 98.1% 71,459 70,099
90% 90.5% 64,313 64,706
80% 80.8% 57,167 57,706
70% 69.3% 50,021 49,540
60% 59.2% 42,875 42,331
50% 49.6% 35,730 35,466
40% 39.9% 28,584 28,536
30% 30.2% 21,438 21,604
20% 21.0% 14,292 14,991
10% 10.2% 7,146 7,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,253
Calibration 2     71,619
Calibration 3     72,183
ssj_ops@calibrated=71,901
100% 100.3% 71,901 72,119
90% 89.6% 64,711 64,435
80% 80.5% 57,521 57,846
70% 69.4% 50,330 49,870
60% 59.8% 43,140 42,980
50% 49.5% 35,950 35,573
40% 39.2% 28,760 28,161
30% 30.0% 21,570 21,537
20% 19.9% 14,380 14,299
10% 10.2% 7,190 7,307
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,632
Calibration 2     72,114
Calibration 3     72,043
ssj_ops@calibrated=72,079
100% 100.3% 72,079 72,323
90% 90.8% 64,871 65,454
80% 80.3% 57,663 57,848
70% 69.8% 50,455 50,285
60% 60.9% 43,247 43,878
50% 49.4% 36,039 35,589
40% 39.9% 28,832 28,730
30% 30.4% 21,624 21,925
20% 19.8% 14,416 14,274
10% 9.3% 7,208 6,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,834
Calibration 2     71,371
Calibration 3     71,311
ssj_ops@calibrated=71,341
100% 99.5% 71,341 70,973
90% 91.2% 64,207 65,046
80% 79.4% 57,073 56,622
70% 69.5% 49,939 49,596
60% 60.1% 42,805 42,890
50% 50.9% 35,671 36,324
40% 39.8% 28,536 28,421
30% 30.5% 21,402 21,769
20% 20.1% 14,268 14,364
10% 10.1% 7,134 7,190
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,964
Calibration 2     74,834
Calibration 3     73,005
ssj_ops@calibrated=73,919
100% 98.1% 73,919 72,531
90% 89.9% 66,527 66,484
80% 79.4% 59,135 58,678
70% 70.1% 51,744 51,829
60% 60.5% 44,352 44,719
50% 50.1% 36,960 37,039
40% 38.9% 29,568 28,742
30% 30.2% 22,176 22,299
20% 20.1% 14,784 14,887
10% 9.9% 7,392 7,315
Active Idle   0 0

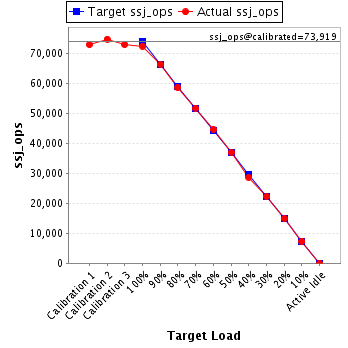

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,087
Calibration 2     73,878
Calibration 3     72,830
ssj_ops@calibrated=73,354
100% 99.2% 73,354 72,738
90% 89.3% 66,019 65,500
80% 81.7% 58,683 59,963
70% 68.0% 51,348 49,878
60% 59.1% 44,012 43,348
50% 50.1% 36,677 36,755
40% 40.7% 29,342 29,837
30% 29.6% 22,006 21,682
20% 19.7% 14,671 14,478
10% 9.8% 7,335 7,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,884
Calibration 2     73,226
Calibration 3     72,757
ssj_ops@calibrated=72,991
100% 98.8% 72,991 72,094
90% 89.7% 65,692 65,479
80% 78.5% 58,393 57,291
70% 70.4% 51,094 51,366
60% 60.0% 43,795 43,817
50% 50.7% 36,496 37,042
40% 39.6% 29,197 28,902
30% 30.1% 21,897 21,953
20% 20.2% 14,598 14,753
10% 10.2% 7,299 7,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,638
Calibration 2     72,915
Calibration 3     72,367
ssj_ops@calibrated=72,641
100% 98.6% 72,641 71,633
90% 89.0% 65,377 64,672
80% 80.9% 58,113 58,764
70% 69.5% 50,849 50,509
60% 60.0% 43,585 43,602
50% 50.2% 36,321 36,469
40% 40.1% 29,056 29,096
30% 30.0% 21,792 21,790
20% 20.3% 14,528 14,723
10% 9.6% 7,264 6,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,299
Calibration 2     72,648
Calibration 3     72,216
ssj_ops@calibrated=72,432
100% 99.6% 72,432 72,123
90% 91.0% 65,189 65,934
80% 80.0% 57,946 57,974
70% 70.8% 50,702 51,287
60% 60.1% 43,459 43,525
50% 49.9% 36,216 36,139
40% 39.7% 28,973 28,721
30% 30.1% 21,730 21,821
20% 19.9% 14,486 14,427
10% 10.2% 7,243 7,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,804
Calibration 2     72,595
Calibration 3     71,467
ssj_ops@calibrated=72,031
100% 99.9% 72,031 71,925
90% 90.9% 64,828 65,484
80% 79.3% 57,625 57,126
70% 70.3% 50,422 50,614
60% 58.8% 43,219 42,355
50% 50.4% 36,016 36,309
40% 39.7% 28,812 28,621
30% 29.9% 21,609 21,539
20% 20.3% 14,406 14,587
10% 9.9% 7,203 7,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,894
Calibration 2     73,543
Calibration 3     73,905
ssj_ops@calibrated=73,724
100% 100.5% 73,724 74,072
90% 91.2% 66,352 67,231
80% 80.3% 58,979 59,232
70% 70.2% 51,607 51,761
60% 60.3% 44,234 44,463
50% 50.9% 36,862 37,521
40% 39.6% 29,490 29,231
30% 29.8% 22,117 21,962
20% 20.5% 14,745 15,141
10% 10.2% 7,372 7,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T120b-E.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,053
Calibration 2     74,236
Calibration 3     73,168
ssj_ops@calibrated=73,702
100% 99.0% 73,702 72,988
90% 89.9% 66,332 66,262
80% 80.1% 58,962 59,001
70% 69.6% 51,591 51,293
60% 59.0% 44,221 43,481
50% 49.6% 36,851 36,531
40% 39.2% 29,481 28,920
30% 30.1% 22,111 22,191
20% 20.5% 14,740 15,137
10% 9.9% 7,370 7,291
Active Idle   0 0

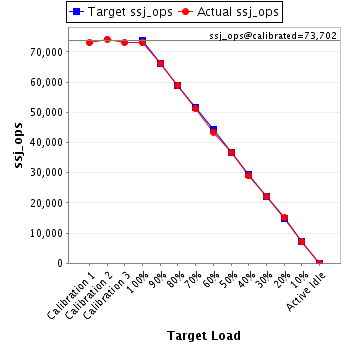

Graph of results
See the JVM Instance Performance Report for additional details.
