SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/R120b-1 | SPECpower_ssj2008 = 2,707 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Nov 17, 2011 |
| Hardware Availability: | Feb-2011 | Software Availability: | Apr-2011 | Publication: | Dec 14, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

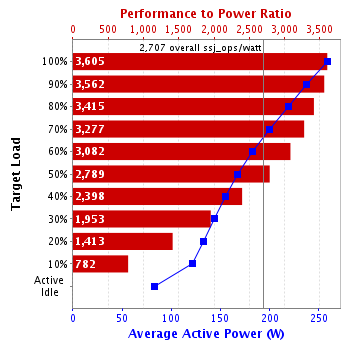

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 932,485 | 259 | 3,605 |
| 90% | 90.1% | 844,873 | 237 | 3,562 |
| 80% | 79.9% | 748,836 | 219 | 3,415 |
| 70% | 69.8% | 654,569 | 200 | 3,277 |
| 60% | 60.0% | 562,173 | 182 | 3,082 |
| 50% | 49.9% | 468,087 | 168 | 2,789 |
| 40% | 39.7% | 372,390 | 155 | 2,398 |
| 30% | 30.0% | 280,823 | 144 | 1,953 |
| 20% | 20.0% | 187,744 | 133 | 1,413 |
| 10% | 10.1% | 95,073 | 122 | 782 |
| Active Idle | 0 | 82.9 | 0 | |
| ∑ssj_ops / ∑power = | 2,707 | |||
| Set Identifier: | sut |
| Set Description: | Express5800/R120b-1 (Intel Xeon X5675, 3.06 GHz) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/R120b-1 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | 6 core, 3.06 GHz, 12 MB L3 Cache |
| CPU Frequency (MHz): | 3066 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4GB 2Rx4 PC3L-10600R ECC CL9; slots CPU1_DIMM1, CPU1_DIMM2, CPU1_DIMM3, CPU2_DIMM1, CPU2_DIMM2 and CPU2_DIMM3 populated |
| Power Supply Quantity and Rating (W): | 1 x 650 |
| Power Supply Details: | Delta DPS-650RB |
| Disk Drive: | 1 x 100GB SSD SATA, NEC P/N:N8150-707 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25 |
| JVM Command-line Options: | -Xms1500m -Xmx1500m -Xmn1350m -XX:+AggressiveOpts -XX:+UseCompressedStrings -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 |
| JVM Affinity: | start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000] |
| JVM Instances: | 12 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 4.6.2C18 |
| Management Firmware Version: | 1.28 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/R120b-2 |
| CPU Description: | Intel Xeon X5670 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Standard Edition Service Pack 2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) Client VM on Windows, version 1.6.0_25 |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928025 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-12299 |
| Date of Calibration: | 9-Aug-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 259 | 20.1 |
| 90% | 237 | 20.1 |
| 80% | 219 | 20.2 |
| 70% | 200 | 20.2 |
| 60% | 182 | 20.2 |
| 50% | 168 | 20.1 |
| 40% | 155 | 20.1 |
| 30% | 144 | 20.1 |
| 20% | 133 | 20.2 |
| 10% | 122 | 20.2 |
| Active Idle | 82.9 | 20.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 100V / 50 Hz / 1 phase / 2 wires | 20.1 | 52 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 934,830 | ||
| Calibration 2 | 939,596 | ||
| Calibration 3 | 935,576 | ||
| ssj_ops@calibrated=937,586 | |||
| 100% | 99.5% | 937,586 | 932,485 |
| 90% | 90.1% | 843,828 | 844,873 |
| 80% | 79.9% | 750,069 | 748,836 |
| 70% | 69.8% | 656,310 | 654,569 |
| 60% | 60.0% | 562,552 | 562,173 |
| 50% | 49.9% | 468,793 | 468,087 |
| 40% | 39.7% | 375,034 | 372,390 |
| 30% | 30.0% | 281,276 | 280,823 |
| 20% | 20.0% | 187,517 | 187,744 |
| 10% | 10.1% | 93,759 | 95,073 |
| Active Idle | 0 | 0 | |
