IBM Corporation IBM System x3755 M3 ssj_ops@100% = 2,242,893
ssj_ops@100% per JVM = 140,181
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nangang, Taipei, Taiwan Test Date: Nov 4, 2011
Hardware Availability: Dec-2011 Software Availability: Mar-2011 Publication: Nov 30, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,205,050
Calibration 2     2,250,049
Calibration 3     2,243,818
ssj_ops@calibrated=2,246,933
100% 99.8% 2,246,933 2,242,893
90% 90.1% 2,022,240 2,025,294
80% 80.0% 1,797,547 1,797,742
70% 70.0% 1,572,853 1,572,792
60% 59.8% 1,348,160 1,343,532
50% 50.0% 1,123,467 1,123,790
40% 40.0% 898,773 897,715
30% 30.0% 674,080 674,531
20% 20.0% 449,387 448,391
10% 10.0% 224,693 225,278
Active Idle   0 0

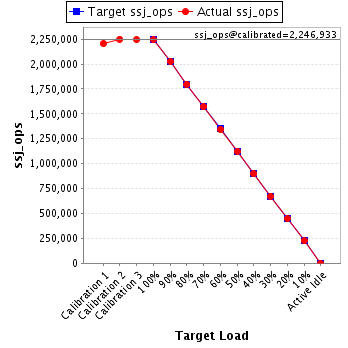

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3755 M3
Form Factor: 2U
CPU Name: AMD Opteron 6276 (2.30 GHz)
CPU Characteristics: 16-Core, 2.3GHz, 16 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29 and 31 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: IBM PN 49Y4934
Disk Drive: 1 x 250GB SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: Service Pack 1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvm pwa6460sr5-20090406_01(SR5) (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, 0F, 00F, 000F, 0000F, 00000F, 000000F, 0000000F, 00000000F, 000000000F, 0000000000F, 00000000000F, 000000000000F, 0000000000000F, 00000000000000F, 000000000000000F]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 154b
Management Firmware Version: ayoo32f
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
x3755m3-1.001 138,538
x3755m3-1.002 140,122
x3755m3-1.003 138,649
x3755m3-1.004 143,756
x3755m3-1.005 140,392
x3755m3-1.006 141,560
x3755m3-1.007 139,722
x3755m3-1.008 139,781
x3755m3-1.009 138,704
x3755m3-1.010 140,596
x3755m3-1.011 140,408
x3755m3-1.012 141,323
x3755m3-1.013 139,249
x3755m3-1.014 139,184
x3755m3-1.015 140,047
x3755m3-1.016 140,862
ssj_ops@100% 2,242,893
ssj_ops@100% per JVM 140,181

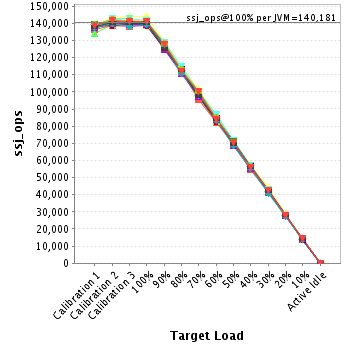

Graph of per-instance results
JVM 'x3755m3-1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,455
Calibration 2     138,489
Calibration 3     138,339
ssj_ops@calibrated=138,414
100% 100.1% 138,414 138,538
90% 91.3% 124,572 126,423
80% 80.6% 110,731 111,607
70% 69.2% 96,890 95,805
60% 59.5% 83,048 82,325
50% 50.1% 69,207 69,354
40% 39.7% 55,366 54,972
30% 29.7% 41,524 41,090
20% 20.0% 27,683 27,719
10% 9.8% 13,841 13,606
Active Idle   0 0

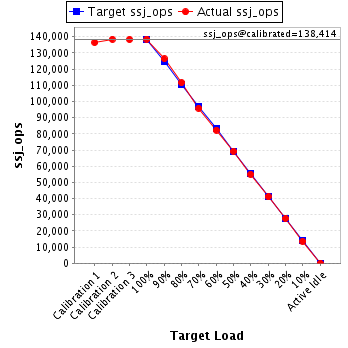

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,148
Calibration 2     140,382
Calibration 3     140,116
ssj_ops@calibrated=140,249
100% 99.9% 140,249 140,122
90% 90.5% 126,224 126,938
80% 79.8% 112,199 111,956
70% 69.8% 98,174 97,875
60% 59.9% 84,149 83,955
50% 49.6% 70,124 69,610
40% 40.4% 56,100 56,719
30% 30.1% 42,075 42,263
20% 20.3% 28,050 28,449
10% 9.9% 14,025 13,825
Active Idle   0 0

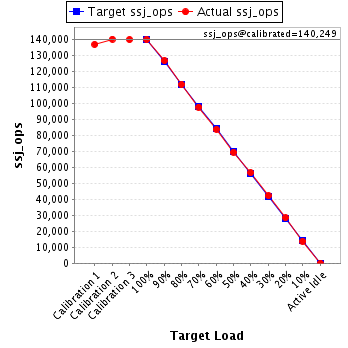

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,097
Calibration 2     139,030
Calibration 3     139,197
ssj_ops@calibrated=139,113
100% 99.7% 139,113 138,649
90% 90.2% 125,202 125,521
80% 80.7% 111,291 112,262
70% 69.8% 97,379 97,066
60% 59.5% 83,468 82,745
50% 50.3% 69,557 70,011
40% 39.9% 55,645 55,562
30% 30.1% 41,734 41,834
20% 20.1% 27,823 27,952
10% 10.0% 13,911 13,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,719
Calibration 2     143,554
Calibration 3     144,056
ssj_ops@calibrated=143,805
100% 100.0% 143,805 143,756
90% 90.0% 129,424 129,393
80% 79.9% 115,044 114,963
70% 70.5% 100,663 101,435
60% 59.8% 86,283 86,039
50% 49.5% 71,902 71,201
40% 39.9% 57,522 57,405
30% 30.6% 43,141 43,949
20% 20.1% 28,761 28,963
10% 9.9% 14,380 14,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,594
Calibration 2     140,485
Calibration 3     140,489
ssj_ops@calibrated=140,487
100% 99.9% 140,487 140,392
90% 89.6% 126,438 125,855
80% 79.8% 112,390 112,097
70% 69.8% 98,341 98,070
60% 59.8% 84,292 84,053
50% 50.7% 70,243 71,293
40% 39.5% 56,195 55,520
30% 30.3% 42,146 42,527
20% 20.3% 28,097 28,566
10% 10.0% 14,049 14,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,448
Calibration 2     142,919
Calibration 3     143,020
ssj_ops@calibrated=142,970
100% 99.0% 142,970 141,560
90% 90.2% 128,673 128,901
80% 80.3% 114,376 114,848
70% 69.9% 100,079 99,966
60% 60.8% 85,782 86,909
50% 49.9% 71,485 71,375
40% 39.7% 57,188 56,803
30% 30.1% 42,891 43,038
20% 19.6% 28,594 27,960
10% 9.8% 14,297 14,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,657
Calibration 2     140,894
Calibration 3     137,960
ssj_ops@calibrated=139,427
100% 100.2% 139,427 139,722
90% 89.8% 125,484 125,147
80% 80.0% 111,542 111,577
70% 70.0% 97,599 97,591
60% 59.4% 83,656 82,797
50% 50.5% 69,714 70,435
40% 39.9% 55,771 55,598
30% 30.2% 41,828 42,161
20% 20.0% 27,885 27,887
10% 10.2% 13,943 14,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,251
Calibration 2     140,254
Calibration 3     139,298
ssj_ops@calibrated=139,776
100% 100.0% 139,776 139,781
90% 90.9% 125,798 127,097
80% 80.5% 111,821 112,555
70% 69.9% 97,843 97,739
60% 60.3% 83,866 84,342
50% 49.8% 69,888 69,657
40% 40.8% 55,910 57,041
30% 30.5% 41,933 42,607
20% 19.9% 27,955 27,842
10% 10.0% 13,978 13,974
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,015
Calibration 2     138,700
Calibration 3     139,197
ssj_ops@calibrated=138,948
100% 99.8% 138,948 138,704
90% 90.0% 125,054 125,021
80% 79.9% 111,159 111,038
70% 70.2% 97,264 97,503
60% 59.4% 83,369 82,584
50% 50.6% 69,474 70,336
40% 40.3% 55,579 56,053
30% 29.9% 41,685 41,537
20% 20.1% 27,790 27,917
10% 10.1% 13,895 14,064
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,567
Calibration 2     141,127
Calibration 3     140,654
ssj_ops@calibrated=140,890
100% 99.8% 140,890 140,596
90% 90.2% 126,801 127,139
80% 80.3% 112,712 113,074
70% 69.4% 98,623 97,847
60% 59.9% 84,534 84,401
50% 50.4% 70,445 70,962
40% 39.9% 56,356 56,263
30% 29.6% 42,267 41,659
20% 19.8% 28,178 27,958
10% 10.0% 14,089 14,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,131
Calibration 2     140,282
Calibration 3     140,876
ssj_ops@calibrated=140,579
100% 99.9% 140,579 140,408
90% 90.1% 126,521 126,664
80% 80.0% 112,463 112,413
70% 70.5% 98,405 99,171
60% 59.5% 84,347 83,704
50% 50.6% 70,290 71,119
40% 39.9% 56,232 56,072
30% 29.7% 42,174 41,795
20% 19.8% 28,116 27,808
10% 10.3% 14,058 14,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,281
Calibration 2     142,390
Calibration 3     141,912
ssj_ops@calibrated=142,151
100% 99.4% 142,151 141,323
90% 90.1% 127,936 128,089
80% 79.6% 113,721 113,085
70% 70.4% 99,506 100,145
60% 59.8% 85,291 84,996
50% 49.5% 71,075 70,425
40% 39.7% 56,860 56,496
30% 29.9% 42,645 42,517
20% 19.6% 28,430 27,931
10% 10.2% 14,215 14,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,450
Calibration 2     139,675
Calibration 3     139,569
ssj_ops@calibrated=139,622
100% 99.7% 139,622 139,249
90% 89.4% 125,660 124,780
80% 79.3% 111,698 110,723
70% 69.8% 97,735 97,504
60% 59.9% 83,773 83,627
50% 49.4% 69,811 68,926
40% 39.7% 55,849 55,471
30% 30.1% 41,887 42,017
20% 20.0% 27,924 27,897
10% 10.2% 13,962 14,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,416
Calibration 2     139,800
Calibration 3     138,188
ssj_ops@calibrated=138,994
100% 100.1% 138,994 139,184
90% 90.4% 125,095 125,600
80% 79.8% 111,195 110,897
70% 70.3% 97,296 97,774
60% 59.9% 83,397 83,258
50% 49.6% 69,497 68,927
40% 39.9% 55,598 55,408
30% 29.4% 41,698 40,861
20% 19.8% 27,799 27,549
10% 10.1% 13,899 13,978
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,887
Calibration 2     140,377
Calibration 3     140,148
ssj_ops@calibrated=140,263
100% 99.8% 140,263 140,047
90% 89.2% 126,237 125,053
80% 80.3% 112,210 112,615
70% 69.4% 98,184 97,333
60% 59.8% 84,158 83,909
50% 49.7% 70,131 69,675
40% 40.1% 56,105 56,276
30% 30.2% 42,079 42,310
20% 20.2% 28,053 28,292
10% 9.9% 14,026 13,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'x3755m3-1.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,935
Calibration 2     141,692
Calibration 3     140,798
ssj_ops@calibrated=141,245
100% 99.7% 141,245 140,862
90% 90.4% 127,120 127,673
80% 79.3% 112,996 112,033
70% 70.8% 98,871 99,968
60% 59.4% 84,747 83,890
50% 49.9% 70,622 70,484
40% 39.7% 56,498 56,054
30% 30.0% 42,373 42,366
20% 19.6% 28,249 27,701
10% 10.1% 14,124 14,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
