Dell Inc. PowerEdge M915 ssj_ops@100% = 2,235,854
ssj_ops@100% per JVM = 139,741
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 29, 2011
Hardware Availability: Nov-2011 Software Availability: Feb-2011 Publication: Nov 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,215,855
Calibration 2     2,239,844
Calibration 3     2,236,479
ssj_ops@calibrated=2,238,162
100% 99.9% 2,238,162 2,235,854
90% 90.6% 2,014,345 2,028,006
80% 79.9% 1,790,529 1,788,878
70% 70.2% 1,566,713 1,570,838
60% 60.0% 1,342,897 1,342,229
50% 50.0% 1,119,081 1,118,503
40% 40.1% 895,265 897,104
30% 30.0% 671,448 671,309
20% 19.9% 447,632 445,356
10% 10.0% 223,816 224,324
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M915
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M915
Form Factor: Blade
CPU Name: AMD Opteron 6276 (2.30 GHz)
CPU Characteristics: 16 Core, 2.30 GHz, 16 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1-A4, B1-B4, C1-C4, D1-D4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.3.0
Management Firmware Version: iDRAC 3.30 build 17
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • HT1 set in BIOS.
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
  • NIC 3 and 4 disabled in BIOS.
  • Core Boost Technology Disabled in BIOS.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M915-07.001 140,878
    M915-07.002 140,080
    M915-07.003 140,433
    M915-07.004 138,079
    M915-07.005 140,197
    M915-07.006 139,413
    M915-07.007 138,837
    M915-07.008 140,053
    M915-07.009 141,899
    M915-07.010 141,602
    M915-07.011 139,106
    M915-07.012 139,330
    M915-07.013 139,200
    M915-07.014 138,933
    M915-07.015 138,654
    M915-07.016 139,160
    ssj_ops@100% 2,235,854
    ssj_ops@100% per JVM 139,741

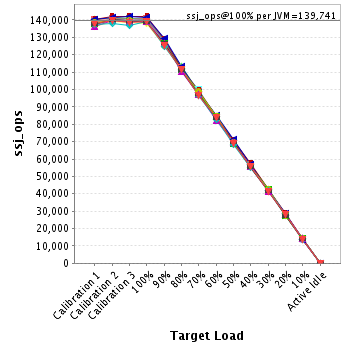

    Graph of per-instance results
    JVM 'M915-07.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,435
    Calibration 2     140,642
    Calibration 3     140,928
    ssj_ops@calibrated=140,785
    100% 100.1% 140,785 140,878
    90% 90.9% 126,707 127,987
    80% 80.1% 112,628 112,833
    70% 70.2% 98,550 98,775
    60% 59.8% 84,471 84,202
    50% 50.2% 70,393 70,711
    40% 40.2% 56,314 56,598
    30% 29.9% 42,236 42,066
    20% 19.8% 28,157 27,898
    10% 10.1% 14,079 14,240
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,836
    Calibration 2     139,618
    Calibration 3     139,974
    ssj_ops@calibrated=139,796
    100% 100.2% 139,796 140,080
    90% 91.3% 125,817 127,689
    80% 80.2% 111,837 112,096
    70% 70.2% 97,857 98,085
    60% 59.8% 83,878 83,604
    50% 50.7% 69,898 70,869
    40% 40.0% 55,919 55,868
    30% 30.0% 41,939 41,974
    20% 19.7% 27,959 27,589
    10% 9.9% 13,980 13,873
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,242
    Calibration 2     141,314
    Calibration 3     140,751
    ssj_ops@calibrated=141,033
    100% 99.6% 141,033 140,433
    90% 91.1% 126,929 128,465
    80% 80.4% 112,826 113,460
    70% 70.1% 98,723 98,840
    60% 59.9% 84,620 84,500
    50% 49.8% 70,516 70,281
    40% 40.4% 56,413 57,047
    30% 30.1% 42,310 42,396
    20% 19.8% 28,207 27,876
    10% 9.9% 14,103 13,988
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,076
    Calibration 2     138,860
    Calibration 3     138,540
    ssj_ops@calibrated=138,700
    100% 99.6% 138,700 138,079
    90% 90.5% 124,830 125,567
    80% 80.0% 110,960 111,018
    70% 71.1% 97,090 98,566
    60% 59.8% 83,220 83,004
    50% 50.1% 69,350 69,493
    40% 40.4% 55,480 55,988
    30% 30.2% 41,610 41,885
    20% 19.7% 27,740 27,265
    10% 9.9% 13,870 13,764
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     138,579
    Calibration 2     140,161
    Calibration 3     139,802
    ssj_ops@calibrated=139,982
    100% 100.2% 139,982 140,197
    90% 90.2% 125,983 126,269
    80% 79.8% 111,985 111,683
    70% 69.7% 97,987 97,604
    60% 60.2% 83,989 84,232
    50% 50.5% 69,991 70,698
    40% 39.6% 55,993 55,475
    30% 29.7% 41,994 41,633
    20% 20.1% 27,996 28,111
    10% 9.9% 13,998 13,917
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,216
    Calibration 2     139,714
    Calibration 3     139,498
    ssj_ops@calibrated=139,606
    100% 99.9% 139,606 139,413
    90% 90.0% 125,645 125,612
    80% 79.8% 111,685 111,438
    70% 71.5% 97,724 99,886
    60% 60.2% 83,764 84,038
    50% 49.6% 69,803 69,282
    40% 40.1% 55,842 56,018
    30% 29.8% 41,882 41,623
    20% 19.6% 27,921 27,390
    10% 10.0% 13,961 14,025
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,177
    Calibration 2     139,446
    Calibration 3     138,975
    ssj_ops@calibrated=139,211
    100% 99.7% 139,211 138,837
    90% 90.1% 125,290 125,452
    80% 80.1% 111,369 111,506
    70% 70.5% 97,448 98,164
    60% 60.0% 83,527 83,513
    50% 49.7% 69,605 69,237
    40% 39.8% 55,684 55,345
    30% 30.0% 41,763 41,742
    20% 20.1% 27,842 27,957
    10% 10.2% 13,921 14,253
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     139,328
    Calibration 2     140,239
    Calibration 3     140,946
    ssj_ops@calibrated=140,592
    100% 99.6% 140,592 140,053
    90% 91.1% 126,533 128,109
    80% 79.7% 112,474 112,084
    70% 70.4% 98,415 98,997
    60% 60.2% 84,355 84,617
    50% 50.2% 70,296 70,513
    40% 40.4% 56,237 56,756
    30% 30.2% 42,178 42,393
    20% 19.7% 28,118 27,645
    10% 10.1% 14,059 14,227
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,326
    Calibration 2     142,052
    Calibration 3     142,043
    ssj_ops@calibrated=142,048
    100% 99.9% 142,048 141,899
    90% 90.6% 127,843 128,756
    80% 78.9% 113,638 112,008
    70% 69.9% 99,433 99,281
    60% 59.4% 85,229 84,341
    50% 49.7% 71,024 70,627
    40% 40.3% 56,819 57,181
    30% 30.0% 42,614 42,552
    20% 20.2% 28,410 28,703
    10% 10.0% 14,205 14,160
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     140,446
    Calibration 2     141,432
    Calibration 3     142,095
    ssj_ops@calibrated=141,764
    100% 99.9% 141,764 141,602
    90% 91.3% 127,587 129,367
    80% 79.8% 113,411 113,110
    70% 69.5% 99,234 98,483
    60% 59.9% 85,058 84,979
    50% 50.2% 70,882 71,151
    40% 40.2% 56,705 56,919
    30% 29.7% 42,529 42,105
    20% 20.1% 28,353 28,436
    10% 9.7% 14,176 13,750
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     138,264
    Calibration 2     139,480
    Calibration 3     139,047
    ssj_ops@calibrated=139,264
    100% 99.9% 139,264 139,106
    90% 90.8% 125,337 126,476
    80% 80.0% 111,411 111,457
    70% 70.1% 97,485 97,641
    60% 60.6% 83,558 84,424
    50% 49.6% 69,632 69,032
    40% 40.1% 55,705 55,897
    30% 30.4% 41,779 42,289
    20% 19.7% 27,853 27,488
    10% 10.2% 13,926 14,269
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     138,575
    Calibration 2     139,573
    Calibration 3     139,686
    ssj_ops@calibrated=139,630
    100% 99.8% 139,630 139,330
    90% 89.7% 125,667 125,259
    80% 80.0% 111,704 111,675
    70% 70.7% 97,741 98,672
    60% 60.5% 83,778 84,415
    50% 49.9% 69,815 69,744
    40% 40.0% 55,852 55,798
    30% 30.4% 41,889 42,492
    20% 19.8% 27,926 27,679
    10% 10.3% 13,963 14,349
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     136,424
    Calibration 2     139,467
    Calibration 3     139,088
    ssj_ops@calibrated=139,278
    100% 99.9% 139,278 139,200
    90% 90.7% 125,350 126,379
    80% 79.4% 111,422 110,532
    70% 69.9% 97,494 97,297
    60% 58.9% 83,567 82,068
    50% 50.1% 69,639 69,751
    40% 40.1% 55,711 55,822
    30% 29.7% 41,783 41,398
    20% 20.0% 27,856 27,786
    10% 10.2% 13,928 14,143
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,494
    Calibration 2     138,249
    Calibration 3     136,973
    ssj_ops@calibrated=137,611
    100% 101.0% 137,611 138,933
    90% 90.6% 123,850 124,682
    80% 80.9% 110,089 111,327
    70% 70.2% 96,328 96,603
    60% 60.1% 82,567 82,759
    50% 49.5% 68,805 68,137
    40% 40.2% 55,044 55,374
    30% 30.5% 41,283 41,903
    20% 20.3% 27,522 27,968
    10% 9.9% 13,761 13,576
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,661
    Calibration 2     140,023
    Calibration 3     139,631
    ssj_ops@calibrated=139,827
    100% 99.2% 139,827 138,654
    90% 90.7% 125,844 126,756
    80% 79.5% 111,861 111,200
    70% 69.6% 97,879 97,292
    60% 59.7% 83,896 83,413
    50% 49.9% 69,913 69,823
    40% 39.5% 55,931 55,166
    30% 29.6% 41,948 41,419
    20% 19.6% 27,965 27,466
    10% 10.0% 13,983 13,913
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M915-07.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     137,776
    Calibration 2     139,573
    Calibration 3     138,501
    ssj_ops@calibrated=139,037
    100% 100.1% 139,037 139,160
    90% 90.0% 125,133 125,180
    80% 80.2% 111,229 111,451
    70% 69.5% 97,326 96,652
    60% 60.5% 83,422 84,120
    50% 49.7% 69,518 69,155
    40% 40.2% 55,615 55,852
    30% 29.8% 41,711 41,437
    20% 20.2% 27,807 28,100
    10% 10.0% 13,904 13,876
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
