Hitachi, Ltd. BS2000 Server Blade E57A2 SPECpower_ssj2008 = 1,586 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Oct 19, 2011
Hardware Availability: Jun-2011 Software Availability: Feb-2011 Publication: Nov 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,936 21.7
Calibration 2 3,950 21.7
Calibration 3 3,953 21.6
100% 3,948 21.6
90% 3,782 21.6
80% 3,607 21.6
70% 3,437 21.6
60% 3,254 21.6
50% 3,044 21.6
40% 2,847 21.6
30% 2,687 21.6
20% 2,545 21.6
10% 2,412 21.6
Active Idle 2,024 21.6

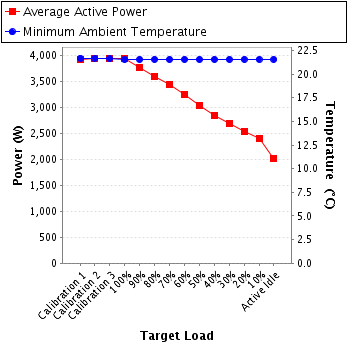

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Tchnology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 27-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to BS2000 Chassis
Power Analyzer pwr2
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91L816380
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Tchnology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B113590
Date of Calibration: 08-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Connected to AMS2300
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.02.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 203 300.0 18.3 20.0 0.995 3,694 0.3%
Calibration 2 202 300.0 18.4 20.0 0.995 3,708 0.3%
Calibration 3 201 300.0 18.5 20.0 0.995 3,711 0.3%
100% 201 300.0 18.5 20.0 0.995 3,705 0.3%
90% 202 300.0 17.6 20.0 0.995 3,539 0.3%
80% 202 300.0 16.8 20.0 0.994 3,365 0.3%
70% 202 300.0 16.0 20.0 0.993 3,195 0.3%
60% 202 300.0 15.0 20.0 0.993 3,012 0.3%
50% 202 300.0 14.0 20.0 0.992 2,801 0.3%
40% 202 300.0 13.0 20.0 0.990 2,605 0.4%
30% 202 300.0 12.2 20.0 0.989 2,444 0.4%
20% 202 300.0 11.5 20.0 0.988 2,303 0.4%
10% 202 300.0 10.9 20.0 0.987 2,170 0.4%
Active Idle 202 300.0 8.97 20.0 0.980 1,781 0.5%

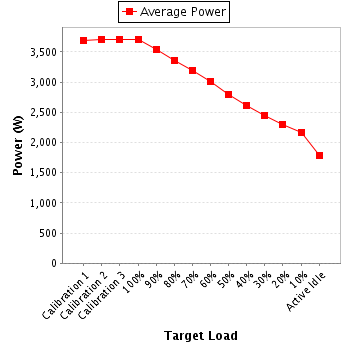

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 1.32 2.0 0.892 242 0.4%
Calibration 2 205 300.0 1.32 2.0 0.893 242 0.4%
Calibration 3 204 300.0 1.33 2.0 0.894 242 0.4%
100% 204 300.0 1.33 2.0 0.894 242 0.4%
90% 205 300.0 1.32 2.0 0.893 242 0.4%
80% 204 300.0 1.33 2.0 0.894 242 0.4%
70% 204 300.0 1.33 2.0 0.895 242 0.4%
60% 204 300.0 1.33 2.0 0.895 242 0.4%
50% 204 300.0 1.33 2.0 0.895 242 0.4%
40% 204 300.0 1.33 2.0 0.895 242 0.4%
30% 203 300.0 1.33 2.0 0.895 242 0.4%
20% 203 300.0 1.33 2.0 0.895 242 0.4%
10% 203 300.0 1.33 2.0 0.895 242 0.4%
Active Idle 203 300.0 1.33 2.0 0.895 242 0.4%

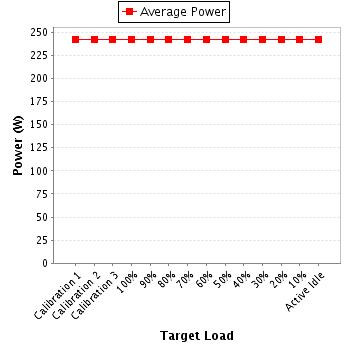

Power details for pwr2
