Huawei Technologies Co., Ltd RH2285 ssj_ops@100% = 738,788
ssj_ops@100% per JVM = 123,131
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 19, 2011
Hardware Availability: Mar-2010 Software Availability: Mar-2011 Publication: Nov 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     734,342
Calibration 2     742,103
Calibration 3     740,930
ssj_ops@calibrated=741,517
100% 99.6% 741,517 738,788
90% 90.1% 667,365 668,198
80% 80.3% 593,213 595,701
70% 69.7% 519,062 516,689
60% 60.0% 444,910 445,017
50% 50.1% 370,758 371,736
40% 40.1% 296,607 297,433
30% 30.2% 222,455 223,780
20% 20.0% 148,303 148,428
10% 10.1% 74,152 74,831
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2285
Form Factor: 2U
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.26GHz, 12MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC RDIMM, slot A1, A2, B1, B2, populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA SA:E64511-309
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port BCM 5709 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1625m -Xms2000m -Xmx2000m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: BV28
Management Firmware Version: V026
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-6L1VTPPOMTE.001 122,178
WIN-6L1VTPPOMTE.002 124,937
WIN-6L1VTPPOMTE.003 123,081
WIN-6L1VTPPOMTE.004 124,382
WIN-6L1VTPPOMTE.005 122,311
WIN-6L1VTPPOMTE.006 121,897
ssj_ops@100% 738,788
ssj_ops@100% per JVM 123,131

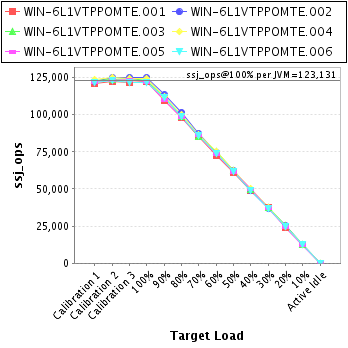

Graph of per-instance results
JVM 'WIN-6L1VTPPOMTE.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,152
Calibration 2     122,446
Calibration 3     121,491
ssj_ops@calibrated=121,968
100% 100.2% 121,968 122,178
90% 90.0% 109,772 109,750
80% 80.2% 97,575 97,786
70% 69.8% 85,378 85,165
60% 59.4% 73,181 72,439
50% 50.1% 60,984 61,066
40% 40.2% 48,787 49,009
30% 30.6% 36,591 37,273
20% 19.9% 24,394 24,271
10% 10.5% 12,197 12,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6L1VTPPOMTE.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,458
Calibration 2     124,689
Calibration 3     124,961
ssj_ops@calibrated=124,825
100% 100.1% 124,825 124,937
90% 90.9% 112,342 113,498
80% 81.4% 99,860 101,573
70% 70.0% 87,377 87,318
60% 59.7% 74,895 74,551
50% 50.0% 62,412 62,423
40% 39.4% 49,930 49,183
30% 29.7% 37,447 37,111
20% 20.1% 24,965 25,143
10% 10.0% 12,482 12,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6L1VTPPOMTE.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,925
Calibration 2     123,504
Calibration 3     124,554
ssj_ops@calibrated=124,029
100% 99.2% 124,029 123,081
90% 90.1% 111,626 111,801
80% 79.7% 99,223 98,814
70% 68.9% 86,820 85,473
60% 60.5% 74,417 74,982
50% 50.6% 62,014 62,718
40% 39.9% 49,612 49,519
30% 30.4% 37,209 37,743
20% 20.3% 24,806 25,240
10% 10.2% 12,403 12,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6L1VTPPOMTE.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,716
Calibration 2     125,225
Calibration 3     124,582
ssj_ops@calibrated=124,903
100% 99.6% 124,903 124,382
90% 89.6% 112,413 111,943
80% 80.3% 99,923 100,257
70% 69.2% 87,432 86,396
60% 60.5% 74,942 75,521
50% 49.8% 62,452 62,143
40% 40.5% 49,961 50,559
30% 30.0% 37,471 37,489
20% 19.9% 24,981 24,826
10% 9.9% 12,490 12,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6L1VTPPOMTE.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,189
Calibration 2     123,024
Calibration 3     123,491
ssj_ops@calibrated=123,257
100% 99.2% 123,257 122,311
90% 89.1% 110,931 109,813
80% 79.7% 98,606 98,228
70% 69.8% 86,280 86,083
60% 59.6% 73,954 73,423
50% 50.0% 61,629 61,637
40% 40.6% 49,303 50,103
30% 30.2% 36,977 37,170
20% 19.5% 24,651 24,095
10% 9.9% 12,326 12,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6L1VTPPOMTE.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,902
Calibration 2     123,215
Calibration 3     121,852
ssj_ops@calibrated=122,534
100% 99.5% 122,534 121,897
90% 90.9% 110,280 111,394
80% 80.8% 98,027 99,043
70% 70.4% 85,774 86,255
60% 60.5% 73,520 74,100
50% 50.4% 61,267 61,747
40% 40.0% 49,013 49,060
30% 30.2% 36,760 36,995
20% 20.3% 24,507 24,853
10% 10.1% 12,253 12,386
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
