Hewlett-Packard Company ProLiant DL360 G7 (3.07 GHz, Intel Xeon X5675 processor) ssj_ops@100% = 911,658
ssj_ops@100% per JVM = 151,943
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jul 12, 2011
Hardware Availability: May-2011 Software Availability: May-2011 Publication: Oct 19, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     910,400
Calibration 2     908,100
Calibration 3     913,434
ssj_ops@calibrated=910,767
100% 100.1% 910,767 911,658
90% 90.7% 819,690 826,022
80% 79.9% 728,614 728,004
70% 69.7% 637,537 634,920
60% 60.1% 546,460 547,755
50% 50.1% 455,384 456,679
40% 40.1% 364,307 365,433
30% 30.0% 273,230 273,162
20% 20.1% 182,153 182,621
10% 10.0% 91,077 91,114
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: ProLiant DL360 G7
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G7 (3.07 GHz, Intel Xeon X5675 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5675
CPU Characteristics: 6 Core, 3.07 Ghz, 12 MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, slots 3 and 6 populated on each processor
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: HP part# 593188-B21
Disk Drive: 1 x 120 GB SFF SSD SATA, HP Part#:572073-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 2 x Embedded HP NC382i Dual-port gigabit server adapters
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: HP Chipset SATA Cable Kit, HP part#627121-B21
Software
Power Management: Power Saver Profile in OS
Operating System (OS): Windows 2008 X64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_25-b06) Java HotSpot(TM) 64-Bit Server VM (build 20.0-b11, mixed mode)
JVM Command-line Options: -server -Xmx1875m -Xms1875m -Xmn1500m -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P68 05.05.11
Management Firmware Version: 1.25
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
Persistant Mouse and Keyboard Disabled
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-E9H6TE2UMNG.001 148,718
WIN-E9H6TE2UMNG.002 151,761
WIN-E9H6TE2UMNG.003 155,217
WIN-E9H6TE2UMNG.004 151,604
WIN-E9H6TE2UMNG.005 151,647
WIN-E9H6TE2UMNG.006 152,711
ssj_ops@100% 911,658
ssj_ops@100% per JVM 151,943

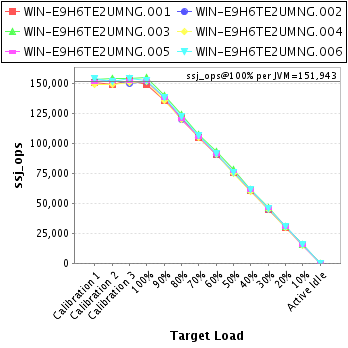

Graph of per-instance results
JVM 'WIN-E9H6TE2UMNG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,756
Calibration 2     148,909
Calibration 3     152,191
ssj_ops@calibrated=150,550
100% 98.8% 150,550 148,718
90% 90.3% 135,495 135,989
80% 80.5% 120,440 121,199
70% 69.9% 105,385 105,296
60% 60.2% 90,330 90,637
50% 50.4% 75,275 75,837
40% 40.3% 60,220 60,699
30% 29.8% 45,165 44,934
20% 20.0% 30,110 30,037
10% 10.2% 15,055 15,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

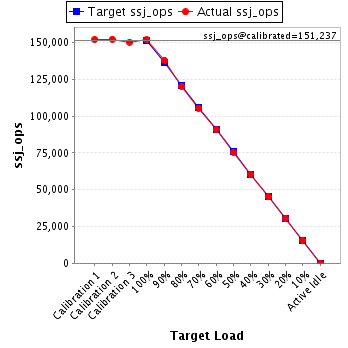

JVM 'WIN-E9H6TE2UMNG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,007
Calibration 2     152,212
Calibration 3     150,262
ssj_ops@calibrated=151,237
100% 100.3% 151,237 151,761
90% 91.2% 136,113 137,953
80% 79.5% 120,990 120,300
70% 69.7% 105,866 105,410
60% 60.1% 90,742 90,894
50% 49.9% 75,618 75,461
40% 40.0% 60,495 60,562
30% 29.9% 45,371 45,153
20% 20.3% 30,247 30,729
10% 10.3% 15,124 15,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E9H6TE2UMNG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,126
Calibration 2     154,503
Calibration 3     154,469
ssj_ops@calibrated=154,486
100% 100.5% 154,486 155,217
90% 90.7% 139,037 140,122
80% 80.3% 123,589 124,020
70% 69.8% 108,140 107,765
60% 60.5% 92,692 93,418
50% 50.5% 77,243 77,975
40% 40.1% 61,794 61,904
30% 30.0% 46,346 46,297
20% 20.0% 30,897 30,969
10% 9.9% 15,449 15,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E9H6TE2UMNG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,204
Calibration 2     149,377
Calibration 3     150,643
ssj_ops@calibrated=150,010
100% 101.1% 150,010 151,604
90% 90.3% 135,009 135,431
80% 80.2% 120,008 120,310
70% 69.7% 105,007 104,553
60% 60.5% 90,006 90,691
50% 49.9% 75,005 74,894
40% 39.8% 60,004 59,738
30% 30.0% 45,003 44,995
20% 19.9% 30,002 29,848
10% 9.9% 15,001 14,799
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E9H6TE2UMNG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,545
Calibration 2     151,783
Calibration 3     151,994
ssj_ops@calibrated=151,889
100% 99.8% 151,889 151,647
90% 90.8% 136,700 137,971
80% 79.0% 121,511 119,974
70% 69.5% 106,322 105,593
60% 59.7% 91,133 90,744
50% 50.4% 75,944 76,605
40% 40.0% 60,755 60,824
30% 30.2% 45,567 45,910
20% 20.1% 30,378 30,584
10% 9.8% 15,189 14,864
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E9H6TE2UMNG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,763
Calibration 2     151,315
Calibration 3     153,876
ssj_ops@calibrated=152,596
100% 100.1% 152,596 152,711
90% 90.8% 137,336 138,556
80% 80.1% 122,077 122,201
70% 69.7% 106,817 106,302
60% 59.9% 91,557 91,371
50% 49.7% 76,298 75,907
40% 40.4% 61,038 61,705
30% 30.1% 45,779 45,873
20% 20.0% 30,519 30,454
10% 10.0% 15,260 15,332
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
