Hewlett-Packard Company ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) ssj_ops@100% = 7,299,642
ssj_ops@100% per Host = 912,455
ssj_ops@100% per JVM = 456,228
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 8, 2011
Hardware Availability: Feb-2011 Software Availability: May-2011 Publication: Oct 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,326,520
Calibration 2     7,343,590
Calibration 3     7,319,451
ssj_ops@calibrated=7,331,521
100% 99.6% 7,331,521 7,299,642
90% 90.0% 6,598,369 6,598,666
80% 80.1% 5,865,216 5,868,894
70% 70.0% 5,132,064 5,134,479
60% 60.1% 4,398,912 4,403,277
50% 50.0% 3,665,760 3,666,333
40% 39.9% 2,932,608 2,927,021
30% 30.0% 2,199,456 2,202,527
20% 20.0% 1,466,304 1,464,261
10% 10.0% 733,152 733,737
Active Idle   0 0

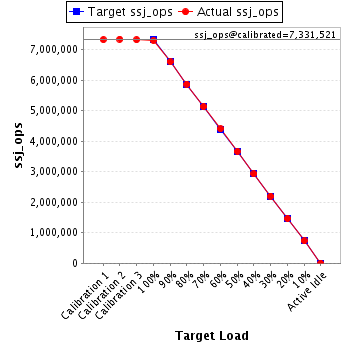

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
8 16 96 192 128 8 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant SL6500
Form Factor: 2U
Power Supply Quantity and Rating (W): 3 x 750
Power Supply Details: Part Number: 593831-B21
Network Switch: Hewlett-Packard Company ProCurve 3500yl-24G
Network Switch Details: 24 Port Gigabit
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the power measurement.
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: N/A
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor)
Form Factor: Blade
CPU Name: Intel Xeon X5675
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4 GB 2Rx8 PC3L-10600E-9, ECC, slots 1 & 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 120 GB SATA SSD, Part Number: 586587-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Embedded HP NC382i Dual-Port Multifunction Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (See SUT Notes)
Operating System (OS): Windows Server 2008 x64 Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java SE Runtime Environment (build 1.6.0_25-b06), Java HotSpot 64-Bit Server VM (build 20.0-b11, mixed mode)
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: O40 4/26/2011
Management Firmware Version: 4.22 2/7/2011
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
SL170sG6-1 916,762
SL170sG6-2 912,524
SL170sG6-3 917,391
SL170sG6-4 898,283
SL170sG6-5 911,697
SL170sG6-6 912,130
SL170sG6-7 918,781
SL170sG6-8 912,073
ssj_ops@100% 7,299,642
ssj_ops@100% per Host 912,455
ssj_ops@100% per JVM 456,228

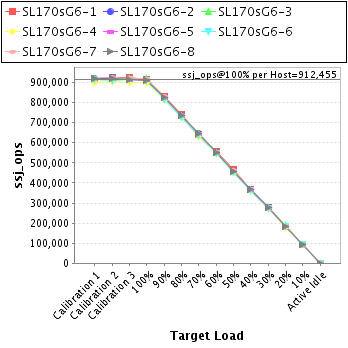

Graph of per-host results
Host 'SL170sG6-1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     915,284
Calibration 2     922,655
Calibration 3     923,002
ssj_ops@calibrated=922,828
100% 99.3% 922,828 916,762
90% 90.1% 830,545 831,797
80% 80.2% 738,263 740,283
70% 69.7% 645,980 643,487
60% 60.2% 553,697 555,107
50% 50.4% 461,414 464,940
40% 39.8% 369,131 367,610
30% 30.1% 276,848 278,000
20% 19.9% 184,566 183,353
10% 10.0% 92,283 92,650
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     920,077
Calibration 2     924,901
Calibration 3     913,325
ssj_ops@calibrated=919,113
100% 99.3% 919,113 912,524
90% 90.0% 827,202 827,387
80% 80.0% 735,291 735,713
70% 70.1% 643,379 644,029
60% 60.1% 551,468 551,963
50% 49.9% 459,557 458,914
40% 39.9% 367,645 367,063
30% 30.1% 275,734 276,601
20% 19.8% 183,823 182,414
10% 10.0% 91,911 91,601
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     921,161
Calibration 2     919,197
Calibration 3     918,705
ssj_ops@calibrated=918,951
100% 99.8% 918,951 917,391
90% 89.9% 827,056 825,758
80% 80.0% 735,161 735,306
70% 70.3% 643,266 645,583
60% 60.1% 551,371 552,475
50% 50.0% 459,475 459,136
40% 39.9% 367,580 367,033
30% 30.1% 275,685 276,944
20% 20.2% 183,790 186,065
10% 10.0% 91,895 91,466
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     899,003
Calibration 2     903,842
Calibration 3     900,563
ssj_ops@calibrated=902,202
100% 99.6% 902,202 898,283
90% 90.2% 811,982 813,628
80% 80.2% 721,762 723,444
70% 70.1% 631,542 632,862
60% 60.4% 541,321 544,761
50% 50.1% 451,101 451,985
40% 40.1% 360,881 361,797
30% 30.1% 270,661 272,001
20% 19.8% 180,440 179,051
10% 10.1% 90,220 91,049
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     915,382
Calibration 2     916,957
Calibration 3     914,143
ssj_ops@calibrated=915,550
100% 99.6% 915,550 911,697
90% 90.1% 823,995 825,028
80% 80.0% 732,440 732,203
70% 70.1% 640,885 641,719
60% 60.0% 549,330 549,227
50% 49.9% 457,775 457,178
40% 39.7% 366,220 363,838
30% 30.0% 274,665 274,597
20% 20.0% 183,110 183,142
10% 10.0% 91,555 91,389
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     917,327
Calibration 2     908,184
Calibration 3     916,115
ssj_ops@calibrated=912,150
100% 100.0% 912,150 912,130
90% 89.6% 820,935 817,115
80% 79.8% 729,720 728,141
70% 69.9% 638,505 638,008
60% 60.0% 547,290 547,545
50% 49.8% 456,075 454,010
40% 39.9% 364,860 363,669
30% 29.9% 273,645 273,077
20% 20.0% 182,430 182,853
10% 10.0% 91,215 91,231
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     917,688
Calibration 2     926,338
Calibration 3     921,217
ssj_ops@calibrated=923,777
100% 99.5% 923,777 918,781
90% 90.0% 831,399 831,571
80% 79.8% 739,022 737,231
70% 69.8% 646,644 644,561
60% 59.9% 554,266 553,008
50% 50.1% 461,889 463,064
40% 39.8% 369,511 367,795
30% 29.8% 277,133 275,631
20% 19.9% 184,755 183,499
10% 10.0% 92,378 92,817
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'SL170sG6-8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     920,598
Calibration 2     921,517
Calibration 3     912,381
ssj_ops@calibrated=916,949
100% 99.5% 916,949 912,073
90% 90.1% 825,254 826,383
80% 80.3% 733,559 736,573
70% 70.3% 641,864 644,230
60% 59.9% 550,169 549,192
50% 49.9% 458,475 457,106
40% 40.2% 366,780 368,216
30% 30.1% 275,085 275,676
20% 20.1% 183,390 183,884
10% 10.0% 91,695 91,533
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
