Hewlett-Packard Company ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) SPECpower_ssj2008 = 3,322 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 8, 2011
Hardware Availability: Feb-2011 Software Availability: May-2011 Publication: Oct 4, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,723 21.2
Calibration 2 1,759 21.2
Calibration 3 1,763 21.2
100% 1,761 21.2
90% 1,625 21.2
80% 1,481 21.2
70% 1,319 21.2
60% 1,174 21.2
50% 1,057 21.2
40% 960 21.2
30% 877 21.2
20% 794 21.2
10% 693 21.2
Active Idle 389 21.1

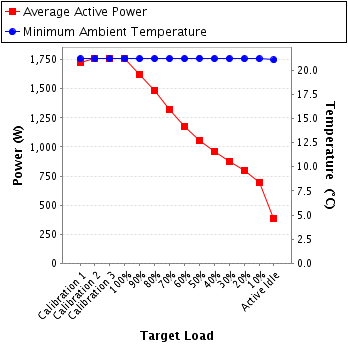

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: HP Metrology
Calibration Label: 705452
Date of Calibration: 7-Apr-2011
PTDaemon Host System: Same as CCS
PTDaemon Host OS: Same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: N/A
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Same as CCS
PTDaemon Host OS: Same as CCS
Setup Description: N/A
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 205 300.0 8.44 10.0 0.996 1,723 0.3%
Calibration 2 205 300.0 8.63 10.0 0.996 1,759 0.3%
Calibration 3 204 300.0 8.67 10.0 0.996 1,763 0.3%
100% 204 300.0 8.68 10.0 0.996 1,761 0.3%
90% 204 300.0 8.02 10.0 0.996 1,625 0.3%
80% 204 300.0 7.31 10.0 0.995 1,481 0.3%
70% 204 300.0 6.51 10.0 0.992 1,319 0.4%
60% 205 300.0 5.80 10.0 0.990 1,174 0.4%
50% 205 300.0 5.22 10.0 0.988 1,057 0.4%
40% 205 300.0 4.76 5.0 0.986 960 0.3%
30% 205 300.0 4.35 5.0 0.984 877 0.3%
20% 205 300.0 3.96 5.0 0.980 794 0.3%
10% 205 300.0 3.47 5.0 0.974 693 0.4%
Active Idle 205 300.0 2.03 5.0 0.937 389 0.6%

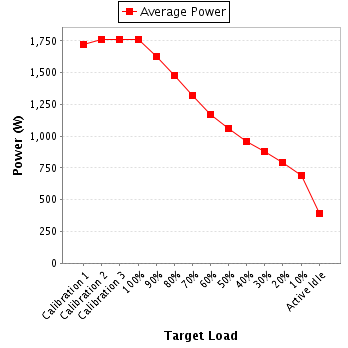

Power details for pwr1
