Hitachi, Ltd. HA8000/RS220 (AL) ssj_ops@100% = 914,922
ssj_ops@100% per JVM = 76,243
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 10, 2011
Hardware Availability: May-2011 Software Availability: Jun-2010 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     908,049
Calibration 2     920,778
Calibration 3     917,758
ssj_ops@calibrated=919,268
100% 99.5% 919,268 914,922
90% 90.0% 827,341 827,281
80% 80.0% 735,415 735,853
70% 69.8% 643,488 641,981
60% 60.0% 551,561 551,513
50% 50.0% 459,634 460,082
40% 40.1% 367,707 368,685
30% 30.1% 275,780 276,791
20% 19.9% 183,854 182,540
10% 9.9% 91,927 91,048
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS220 (AL)
Form Factor: 2U
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3066
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots DIMM_#02,#04.#06,#08,#10 and DIMM_#12 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: DELTA DPS-750QB (Hitachi P/N:GQ-BP2351)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70647G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000.C00000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 7TTSHE-F11
Management Firmware Version: 08.40
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-869MFVSA8FI.001 74,775
WIN-869MFVSA8FI.002 75,514
WIN-869MFVSA8FI.003 76,854
WIN-869MFVSA8FI.004 76,944
WIN-869MFVSA8FI.005 77,101
WIN-869MFVSA8FI.006 76,819
WIN-869MFVSA8FI.007 76,169
WIN-869MFVSA8FI.008 75,620
WIN-869MFVSA8FI.009 75,331
WIN-869MFVSA8FI.010 76,459
WIN-869MFVSA8FI.011 76,808
WIN-869MFVSA8FI.012 76,527
ssj_ops@100% 914,922
ssj_ops@100% per JVM 76,243

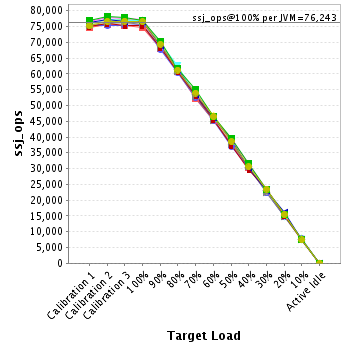

Graph of per-instance results
JVM 'WIN-869MFVSA8FI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,663
Calibration 2     75,666
Calibration 3     75,198
ssj_ops@calibrated=75,432
100% 99.1% 75,432 74,775
90% 90.1% 67,888 67,944
80% 80.5% 60,345 60,741
70% 69.4% 52,802 52,324
60% 59.8% 45,259 45,112
50% 49.7% 37,716 37,519
40% 40.1% 30,173 30,220
30% 30.3% 22,629 22,852
20% 19.7% 15,086 14,893
10% 9.8% 7,543 7,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,265
Calibration 2     75,429
Calibration 3     75,420
ssj_ops@calibrated=75,424
100% 100.1% 75,424 75,514
90% 89.9% 67,882 67,781
80% 80.1% 60,340 60,419
70% 69.8% 52,797 52,678
60% 60.2% 45,255 45,372
50% 49.2% 37,712 37,073
40% 40.4% 30,170 30,477
30% 29.5% 22,627 22,273
20% 19.8% 15,085 14,921
10% 10.3% 7,542 7,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,643
Calibration 2     76,829
Calibration 3     77,195
ssj_ops@calibrated=77,012
100% 99.8% 77,012 76,854
90% 90.4% 69,311 69,657
80% 79.8% 61,610 61,485
70% 70.2% 53,909 54,037
60% 59.6% 46,207 45,868
50% 49.9% 38,506 38,458
40% 40.3% 30,805 31,032
30% 29.9% 23,104 22,995
20% 19.8% 15,402 15,216
10% 10.1% 7,701 7,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,668
Calibration 2     76,808
Calibration 3     76,846
ssj_ops@calibrated=76,827
100% 100.2% 76,827 76,944
90% 89.7% 69,144 68,895
80% 80.3% 61,462 61,708
70% 70.2% 53,779 53,943
60% 60.9% 46,096 46,812
50% 50.7% 38,414 38,958
40% 40.4% 30,731 31,025
30% 29.5% 23,048 22,689
20% 20.0% 15,365 15,343
10% 10.0% 7,683 7,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,541
Calibration 2     77,938
Calibration 3     77,468
ssj_ops@calibrated=77,703
100% 99.2% 77,703 77,101
90% 89.7% 69,933 69,711
80% 79.1% 62,162 61,485
70% 69.7% 54,392 54,147
60% 59.9% 46,622 46,571
50% 50.3% 38,852 39,086
40% 40.6% 31,081 31,562
30% 30.0% 23,311 23,340
20% 19.8% 15,541 15,368
10% 9.9% 7,770 7,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,701
Calibration 2     77,165
Calibration 3     77,023
ssj_ops@calibrated=77,094
100% 99.6% 77,094 76,819
90% 90.4% 69,385 69,716
80% 81.3% 61,675 62,692
70% 68.9% 53,966 53,132
60% 60.0% 46,256 46,286
50% 50.0% 38,547 38,528
40% 39.8% 30,838 30,680
30% 30.2% 23,128 23,299
20% 19.1% 15,419 14,718
10% 9.9% 7,709 7,670
Active Idle   0 0

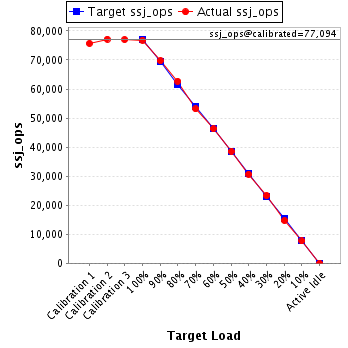

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,870
Calibration 2     76,697
Calibration 3     75,925
ssj_ops@calibrated=76,311
100% 99.8% 76,311 76,169
90% 89.5% 68,680 68,323
80% 80.1% 61,049 61,134
70% 69.8% 53,418 53,243
60% 60.1% 45,787 45,826
50% 50.3% 38,156 38,389
40% 40.0% 30,524 30,548
30% 30.9% 22,893 23,583
20% 19.8% 15,262 15,128
10% 9.6% 7,631 7,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,493
Calibration 2     75,953
Calibration 3     76,192
ssj_ops@calibrated=76,073
100% 99.4% 76,073 75,620
90% 89.9% 68,465 68,388
80% 80.0% 60,858 60,875
70% 69.3% 53,251 52,717
60% 59.4% 45,644 45,156
50% 49.8% 38,036 37,887
40% 40.4% 30,429 30,720
30% 29.5% 22,822 22,404
20% 19.6% 15,215 14,928
10% 9.8% 7,607 7,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,951
Calibration 2     76,088
Calibration 3     75,388
ssj_ops@calibrated=75,738
100% 99.5% 75,738 75,331
90% 90.1% 68,164 68,223
80% 80.3% 60,590 60,799
70% 70.2% 53,017 53,188
60% 60.1% 45,443 45,536
50% 49.2% 37,869 37,254
40% 39.2% 30,295 29,675
30% 30.8% 22,721 23,324
20% 19.8% 15,148 14,995
10% 10.1% 7,574 7,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,158
Calibration 2     77,330
Calibration 3     76,563
ssj_ops@calibrated=76,946
100% 99.4% 76,946 76,459
90% 89.8% 69,252 69,108
80% 80.0% 61,557 61,532
70% 69.7% 53,862 53,624
60% 59.9% 46,168 46,065
50% 50.4% 38,473 38,747
40% 39.6% 30,779 30,488
30% 30.1% 23,084 23,132
20% 20.8% 15,389 15,995
10% 10.0% 7,695 7,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,890
Calibration 2     78,236
Calibration 3     77,801
ssj_ops@calibrated=78,018
100% 98.4% 78,018 76,808
90% 89.9% 70,217 70,150
80% 79.2% 62,415 61,798
70% 70.5% 54,613 55,000
60% 59.4% 46,811 46,379
50% 50.8% 39,009 39,657
40% 40.7% 31,207 31,724
30% 30.0% 23,406 23,376
20% 20.0% 15,604 15,577
10% 9.8% 7,802 7,614
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-869MFVSA8FI.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,205
Calibration 2     76,640
Calibration 3     76,738
ssj_ops@calibrated=76,689
100% 99.8% 76,689 76,527
90% 90.5% 69,020 69,384
80% 79.8% 61,351 61,187
70% 70.3% 53,683 53,946
60% 60.7% 46,014 46,529
50% 50.2% 38,345 38,527
40% 39.8% 30,676 30,535
30% 30.7% 23,007 23,526
20% 20.2% 15,338 15,458
10% 9.6% 7,669 7,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
