SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH620 | SPECpower_ssj2008 = 3,152 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Jun 2, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Dec-2010 | Publication: | Jul 13, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

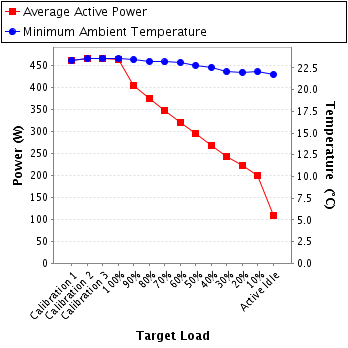

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 459 | 23.4 |
| Calibration 2 | 465 | 23.6 |
| Calibration 3 | 466 | 23.6 |
| 100% | 463 | 23.6 |
| 90% | 404 | 23.4 |
| 80% | 375 | 23.2 |
| 70% | 346 | 23.2 |
| 60% | 320 | 23.1 |
| 50% | 294 | 22.8 |
| 40% | 268 | 22.6 |
| 30% | 243 | 22.1 |
| 20% | 222 | 22.0 |
| 10% | 199 | 22.1 |
| Active Idle | 108 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91F522082 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 2GB11003462-0020 |
| Date of Calibration: | 4-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |

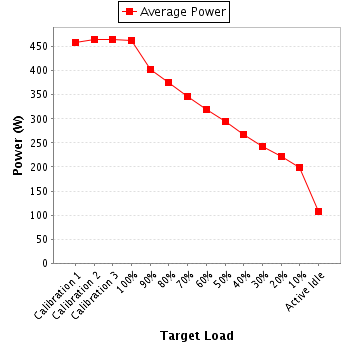

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 224 | 300.0 | 2.08 | 2.0 | 0.987 | 459 | 0.3% |
| Calibration 2 | 225 | 300.0 | 2.10 | 2.0 | 0.987 | 465 | 0.3% |
| Calibration 3 | 224 | 300.0 | 2.10 | 2.0 | 0.987 | 466 | 0.3% |
| 100% | 224 | 300.0 | 2.09 | 2.0 | 0.987 | 463 | 0.3% |
| 90% | 225 | 300.0 | 1.82 | 2.0 | 0.986 | 404 | 0.3% |
| 80% | 226 | 300.0 | 1.69 | 2.0 | 0.986 | 375 | 0.3% |
| 70% | 226 | 300.0 | 1.56 | 2.0 | 0.983 | 346 | 0.3% |
| 60% | 226 | 300.0 | 1.44 | 2.0 | 0.983 | 320 | 0.3% |
| 50% | 227 | 300.0 | 1.32 | 2.0 | 0.982 | 294 | 0.3% |
| 40% | 227 | 300.0 | 1.21 | 2.0 | 0.979 | 268 | 0.4% |
| 30% | 227 | 300.0 | 1.09 | 2.0 | 0.976 | 243 | 0.4% |
| 20% | 228 | 300.0 | 1.00 | 2.0 | 0.972 | 222 | 0.4% |
| 10% | 228 | 300.0 | 0.901 | 2.0 | 0.968 | 199 | 0.5% |
| Active Idle | 229 | 300.0 | 0.494 | 2.0 | 0.958 | 108 | 0.7% |
