SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M3 | SPECpower_ssj2008 = 3,152 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Feb 22, 2011 |
| Hardware Availability: | Mar-2011 | Software Availability: | Oct-2009 | Publication: | Apr 20, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

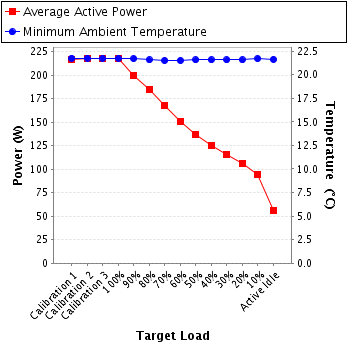

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 217 | 21.8 |
| Calibration 2 | 218 | 21.8 |
| Calibration 3 | 218 | 21.8 |
| 100% | 218 | 21.8 |
| 90% | 200 | 21.7 |
| 80% | 184 | 21.6 |
| 70% | 168 | 21.5 |
| 60% | 151 | 21.5 |
| 50% | 137 | 21.6 |
| 40% | 125 | 21.6 |
| 30% | 115 | 21.6 |
| 20% | 106 | 21.6 |
| 10% | 94.2 | 21.7 |
| Active Idle | 56.1 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-377-03 |
| Date of Calibration: | 23-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |

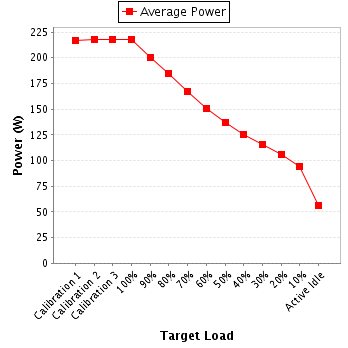

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.07 | 2.0 | 0.975 | 217 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.07 | 2.0 | 0.975 | 218 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.08 | 2.0 | 0.976 | 218 | 0.4% |
| 100% | 207 | 300.0 | 1.08 | 2.0 | 0.976 | 218 | 0.4% |
| 90% | 207 | 300.0 | 0.997 | 2.0 | 0.970 | 200 | 0.4% |
| 80% | 207 | 300.0 | 0.925 | 1.0 | 0.965 | 184 | 0.3% |
| 70% | 207 | 300.0 | 0.844 | 1.0 | 0.958 | 168 | 0.3% |
| 60% | 207 | 300.0 | 0.765 | 1.0 | 0.950 | 151 | 0.4% |
| 50% | 207 | 300.0 | 0.701 | 1.0 | 0.942 | 137 | 0.4% |
| 40% | 207 | 300.0 | 0.649 | 1.0 | 0.934 | 125 | 0.4% |
| 30% | 207 | 300.0 | 0.603 | 1.0 | 0.924 | 115 | 0.4% |
| 20% | 207 | 300.0 | 0.562 | 1.0 | 0.913 | 106 | 0.5% |
| 10% | 207 | 300.0 | 0.510 | 1.0 | 0.891 | 94.2 | 0.5% |
| Active Idle | 208 | 300.0 | 0.349 | 0.5 | 0.774 | 56.1 | 0.5% |
