SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH620 | SPECpower_ssj2008 = 3,041 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Feb 11, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Dec-2010 | Publication: | Mar 9, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

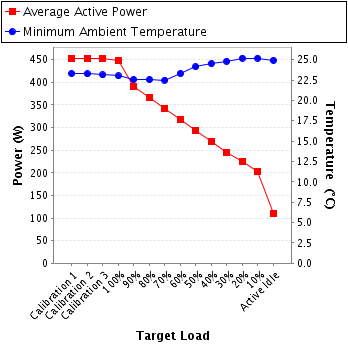

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 452 | 23.3 |
| Calibration 2 | 453 | 23.2 |
| Calibration 3 | 453 | 23.1 |
| 100% | 449 | 23.0 |
| 90% | 392 | 22.6 |
| 80% | 366 | 22.6 |
| 70% | 342 | 22.5 |
| 60% | 318 | 23.3 |
| 50% | 293 | 24.1 |
| 40% | 269 | 24.5 |
| 30% | 245 | 24.8 |
| 20% | 226 | 25.2 |
| 10% | 202 | 25.2 |
| Active Idle | 109 | 24.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91F522082 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 16-0466 |
| Date of Calibration: | 28-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |

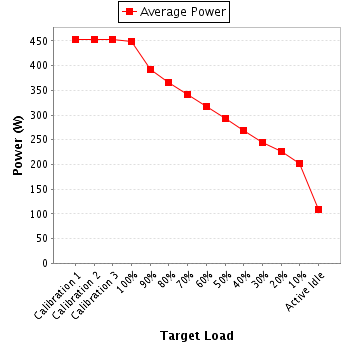

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 2.08 | 2.0 | 0.981 | 452 | 0.3% |
| Calibration 2 | 221 | 300.0 | 2.09 | 2.0 | 0.981 | 453 | 0.3% |
| Calibration 3 | 221 | 300.0 | 2.09 | 2.0 | 0.981 | 453 | 0.3% |
| 100% | 221 | 300.0 | 2.07 | 2.0 | 0.981 | 449 | 0.3% |
| 90% | 221 | 300.0 | 1.81 | 2.0 | 0.975 | 392 | 0.3% |
| 80% | 221 | 300.0 | 1.70 | 2.0 | 0.973 | 366 | 0.3% |
| 70% | 222 | 300.0 | 1.59 | 2.0 | 0.970 | 342 | 0.3% |
| 60% | 222 | 300.0 | 1.48 | 2.0 | 0.966 | 318 | 0.3% |
| 50% | 223 | 300.0 | 1.37 | 2.0 | 0.961 | 293 | 0.4% |
| 40% | 223 | 300.0 | 1.26 | 2.0 | 0.957 | 269 | 0.4% |
| 30% | 223 | 300.0 | 1.15 | 2.0 | 0.958 | 245 | 0.4% |
| 20% | 223 | 300.0 | 1.06 | 2.0 | 0.955 | 226 | 0.4% |
| 10% | 223 | 300.0 | 0.955 | 2.0 | 0.948 | 202 | 0.5% |
| Active Idle | 224 | 300.0 | 0.525 | 2.0 | 0.927 | 109 | 0.7% |
