Hitachi, Ltd. BS320 Server Blade C51P5 SPECpower_ssj2008 = 2,377 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 8, 2011
Hardware Availability: Feb-2011 Software Availability: Jun-2010 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,769 20.4
Calibration 2 2,795 20.9
Calibration 3 2,803 21.4
100% 2,799 21.8
90% 2,616 22.3
80% 2,429 22.6
70% 2,245 22.5
60% 2,066 22.4
50% 1,898 22.2
40% 1,746 22.0
30% 1,608 21.8
20% 1,487 21.6
10% 1,381 21.3
Active Idle 1,278 21.1

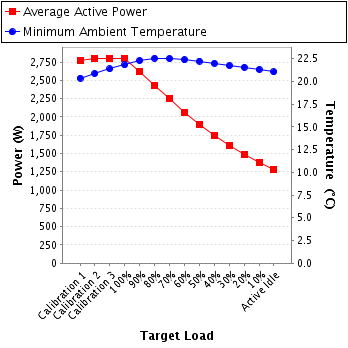

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K7947164
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: B103687
Date of Calibration: 24-Sep-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.02.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 13.7 20.0 0.991 2,769 0.3%
Calibration 2 205 300.0 13.7 20.0 0.991 2,795 0.3%
Calibration 3 205 300.0 13.8 20.0 0.991 2,803 0.3%
100% 205 300.0 13.8 20.0 0.991 2,799 0.3%
90% 205 300.0 12.9 20.0 0.990 2,616 0.4%
80% 206 300.0 11.9 20.0 0.989 2,429 0.4%
70% 206 300.0 11.0 20.0 0.987 2,245 0.4%
60% 206 300.0 10.2 20.0 0.985 2,066 0.4%
50% 206 300.0 9.37 20.0 0.984 1,898 0.5%
40% 206 300.0 8.64 20.0 0.982 1,746 0.5%
30% 206 300.0 7.96 20.0 0.980 1,608 0.5%
20% 207 300.0 7.37 20.0 0.978 1,487 0.5%
10% 206 300.0 6.86 20.0 0.976 1,381 0.6%
Active Idle 206 300.0 6.35 20.0 0.975 1,278 0.6%

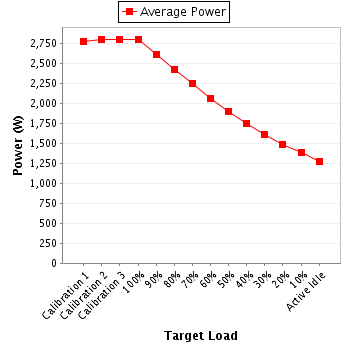

Power details for pwr1
