IBM Corporation IBM System x3620 M3 SPECpower_ssj2008 = 3,039 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Jan 27, 2011
Hardware Availability: Mar-2011 Software Availability: Jun-2009 Publication: Mar 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 236 21.4
Calibration 2 234 21.4
Calibration 3 237 21.4
100% 231 21.4
90% 215 21.4
80% 198 21.5
70% 184 21.6
60% 164 21.7
50% 150 21.8
40% 137 21.9
30% 126 21.9
20% 115 22.0
10% 104 22.1
Active Idle 63.9 22.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 10-04-BAC-377-03
Date of Calibration: 23-Apr-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.18 2.0 0.957 236 0.4%
Calibration 2 208 300.0 1.18 2.0 0.956 234 0.4%
Calibration 3 208 300.0 1.19 2.0 0.957 237 0.4%
100% 208 300.0 1.16 2.0 0.955 231 0.4%
90% 208 300.0 1.09 2.0 0.948 215 0.4%
80% 209 300.0 1.01 1.0 0.938 198 0.3%
70% 209 300.0 0.950 1.0 0.930 184 0.3%
60% 209 300.0 0.857 1.0 0.916 164 0.4%
50% 209 300.0 0.792 1.0 0.903 150 0.4%
40% 209 300.0 0.737 1.0 0.889 137 0.4%
30% 210 300.0 0.689 1.0 0.872 126 0.5%
20% 210 300.0 0.645 1.0 0.853 115 0.5%
10% 210 300.0 0.598 1.0 0.827 104 0.5%
Active Idle 210 300.0 0.443 0.5 0.687 63.9 0.5%

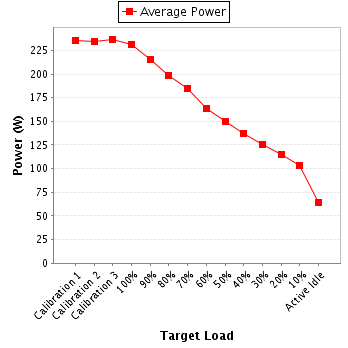

Power details for pwr1
