Hewlett-Packard Company ProLiant ML110 G5 ssj_ops@100% = 98,472
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 19, 2011
Hardware Availability: Feb-2008 Software Availability: May-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,632
Calibration 2     98,728
Calibration 3     99,281
ssj_ops@calibrated=99,005
100% 99.5% 99,005 98,472
90% 91.1% 89,104 90,167
80% 80.5% 79,204 79,692
70% 69.9% 69,303 69,212
60% 60.2% 59,403 59,625
50% 49.8% 49,502 49,267
40% 39.4% 39,602 38,981
30% 30.0% 29,701 29,715
20% 19.8% 19,801 19,617
10% 10.1% 9,900 9,995
Active Idle   0 0

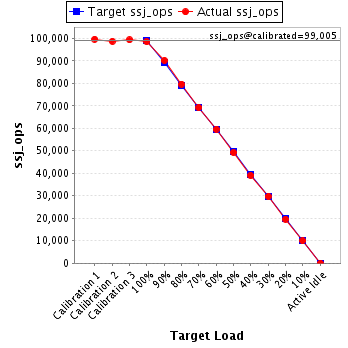

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant ML110 G5
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant ML110 G5
Form Factor: Tower
CPU Name: Intel Xeon Processor 3075
CPU Characteristics: Dual-Core, 2.66 GHz, 4 MB L2 Cache, 1333 MHz system bus
CPU Frequency (MHz): 2660
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 2 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 4 x 1024 MB
Memory Details: 1GB 2Rx8 PC2-6400E; all slots populated
Power Supply Quantity and Rating (W): 1 x 365
Power Supply Details: HP part #445067-001
Disk Drive: 2 x 160GB 7.2K RPM SATA RAID 1
Disk Controller: Integrated SATA controller with embedded RAID
# and type of Network Interface Cards (NICs) Installed: 1 x NC105i Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008, Enterprise x64 Edition
OS Version: SP2, Build 6002
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R)(build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms2800m -Xmx2800m -Xns2660m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 2800
JVM Maximum Heap (MB): 2800
JVM Address Bits: 64
Boot Firmware Version: 015 2009.10.09
Management Firmware Version: 03.05 09/15/2008
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetcher disabled in BIOS, Adjacent Cache Line Prefetch disabled in BIOS, Processor Power Management set to GV1/GV3 Only in BIOS
Management Firmware Settings
Default
System Under Test Notes
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,246,277 2,800
Payment 7,246,278
Order Status 724,627
Delivery 724,628
Stock Level 724,628
Customer Report 7,246,280
Calibration 2 New Order 7,182,038 2,800
Payment 7,182,037
Order Status 718,203
Delivery 718,206
Stock Level 718,204
Customer Report 7,182,029
Calibration 3 New Order 7,226,016 2,800
Payment 7,226,017
Order Status 722,602
Delivery 722,602
Stock Level 722,602
Customer Report 7,226,019
100% 99.5% New Order 7,162,024 2,800
Payment 7,162,023
Order Status 716,203
Delivery 716,202
Stock Level 716,203
Customer Report 7,162,024
90% 91.1% New Order 6,557,959 2,800
Payment 6,557,958
Order Status 655,796
Delivery 655,797
Stock Level 655,796
Customer Report 6,557,959
80% 80.5% New Order 5,796,099 2,800
Payment 5,796,098
Order Status 579,609
Delivery 579,609
Stock Level 579,610
Customer Report 5,796,101
70% 69.9% New Order 5,033,901 2,800
Payment 5,033,894
Order Status 503,390
Delivery 503,389
Stock Level 503,390
Customer Report 5,033,897
60% 60.2% New Order 4,336,613 2,800
Payment 4,336,615
Order Status 433,662
Delivery 433,661
Stock Level 433,660
Customer Report 4,336,616
50% 49.8% New Order 3,583,234 2,800
Payment 3,583,230
Order Status 358,322
Delivery 358,323
Stock Level 358,323
Customer Report 3,583,231
40% 39.4% New Order 2,835,153 2,800
Payment 2,835,146
Order Status 283,516
Delivery 283,516
Stock Level 283,514
Customer Report 2,835,155
30% 30.0% New Order 2,161,213 2,800
Payment 2,161,210
Order Status 216,122
Delivery 216,121
Stock Level 216,122
Customer Report 2,161,212
20% 19.8% New Order 1,426,844 2,800
Payment 1,426,847
Order Status 142,684
Delivery 142,686
Stock Level 142,685
Customer Report 1,426,850
10% 10.1% New Order 726,968 2,800
Payment 726,970
Order Status 72,698
Delivery 72,696
Stock Level 72,696
Customer Report 726,972
Active Idle New Order 0 2,800
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
