Hewlett-Packard Company ProLiant ML110 G4 ssj_ops@100% = 54,479
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 19, 2011
Hardware Availability: Nov-2006 Software Availability: May-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     54,240
Calibration 2     54,407
Calibration 3     54,317
ssj_ops@calibrated=54,362
100% 100.2% 54,362 54,479
90% 90.3% 48,926 49,096
80% 81.0% 43,490 44,054
70% 69.8% 38,053 37,963
60% 61.0% 32,617 33,168
50% 49.3% 27,181 26,801
40% 40.7% 21,745 22,139
30% 30.0% 16,309 16,312
20% 19.8% 10,872 10,776
10% 10.5% 5,436 5,712
Active Idle   0 0

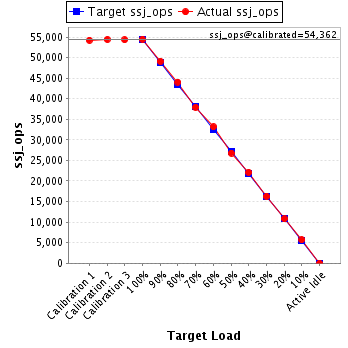

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant ML110 G4
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant ML110 G4
Form Factor: Tower
CPU Name: Intel Xeon Processor 3040
CPU Characteristics: Dual-Core, 1.86 GHz, 2 MB L2 Cache, 1066 MHz system bus
CPU Frequency (MHz): 1860
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 2 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 4 x 1024 MB
Memory Details: 1GB 2Rx8 PC2-5300E; all slots populated
Power Supply Quantity and Rating (W): 1 x 370
Power Supply Details: HP part #416121-001
Disk Drive: 2 x 146GB 15K RPM SAS RAID 1
Disk Controller: HP 8 Internal Port SAS Host Bus Adapter with RAID
# and type of Network Interface Cards (NICs) Installed: 1 x NC320i Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2003, Enterprise x64 Edition
OS Version: SP2, Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms2800m -Xmx2800m -Xns2660m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 2800
JVM Maximum Heap (MB): 2800
JVM Address Bits: 64
Boot Firmware Version: 010 2007.07.20
Management Firmware Version: 2.12
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetcher disabled in BIOS, Adjacent Cache Line Prefetch disabled in BIOS
Management Firmware Settings
Default
System Under Test Notes
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 3,946,861 2,800
Payment 3,946,858
Order Status 394,686
Delivery 394,685
Stock Level 394,685
Customer Report 3,946,864
Calibration 2 New Order 3,957,050 2,800
Payment 3,957,050
Order Status 395,706
Delivery 395,704
Stock Level 395,705
Customer Report 3,957,051
Calibration 3 New Order 3,950,524 2,800
Payment 3,950,526
Order Status 395,053
Delivery 395,054
Stock Level 395,052
Customer Report 3,950,524
100% 100.2% New Order 3,962,283 2,800
Payment 3,962,274
Order Status 396,228
Delivery 396,229
Stock Level 396,228
Customer Report 3,962,277
90% 90.3% New Order 3,570,783 2,800
Payment 3,570,786
Order Status 357,078
Delivery 357,079
Stock Level 357,078
Customer Report 3,570,787
80% 81.0% New Order 3,204,080 2,800
Payment 3,204,078
Order Status 320,408
Delivery 320,409
Stock Level 320,407
Customer Report 3,204,079
70% 69.8% New Order 2,761,047 2,800
Payment 2,761,054
Order Status 276,104
Delivery 276,105
Stock Level 276,104
Customer Report 2,761,052
60% 61.0% New Order 2,412,546 2,800
Payment 2,412,550
Order Status 241,255
Delivery 241,254
Stock Level 241,254
Customer Report 2,412,550
50% 49.3% New Order 1,949,201 2,800
Payment 1,949,198
Order Status 194,919
Delivery 194,919
Stock Level 194,920
Customer Report 1,949,199
40% 40.7% New Order 1,610,192 2,800
Payment 1,610,195
Order Status 161,020
Delivery 161,020
Stock Level 161,019
Customer Report 1,610,194
30% 30.0% New Order 1,186,362 2,800
Payment 1,186,358
Order Status 118,635
Delivery 118,636
Stock Level 118,637
Customer Report 1,186,361
20% 19.8% New Order 783,779 2,800
Payment 783,781
Order Status 78,378
Delivery 78,378
Stock Level 78,379
Customer Report 783,780
10% 10.5% New Order 415,453 2,800
Payment 415,455
Order Status 41,545
Delivery 41,546
Stock Level 41,546
Customer Report 415,455
Active Idle New Order 0 2,800
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
