SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated AT310 F1 | SPECpower_ssj2008 = 2,004 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Jan 10, 2011 |
| Hardware Availability: | Mar-2010 | Software Availability: | Dec-2009 | Publication: | Feb 17, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

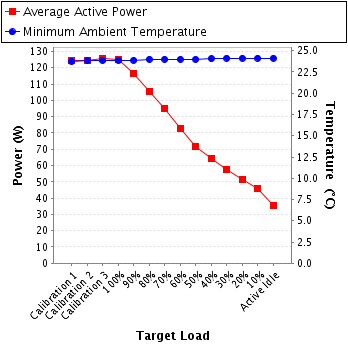

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 125 | 23.8 |
| Calibration 2 | 124 | 23.8 |
| Calibration 3 | 126 | 23.9 |
| 100% | 125 | 23.9 |
| 90% | 117 | 23.9 |
| 80% | 106 | 24.0 |
| 70% | 94.8 | 24.0 |
| 60% | 82.6 | 24.0 |
| 50% | 71.6 | 24.0 |
| 40% | 64.6 | 24.1 |
| 30% | 57.5 | 24.1 |
| 20% | 51.2 | 24.1 |
| 10% | 46.1 | 24.1 |
| Active Idle | 35.4 | 24.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC17356 |
| Connectivity: | RS-232-C |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
| Calibration Label: | T9903260701 |
| Date of Calibration: | 30-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | Temperature@lert |
| Driver Version: | 2.6.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |

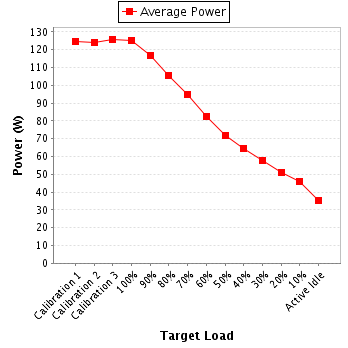

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 120 | 150.0 | 1.05 | 1.0 | 0.983 | 125 | 0.3% |
| Calibration 2 | 120 | 150.0 | 1.05 | 1.0 | 0.984 | 124 | 0.3% |
| Calibration 3 | 120 | 150.0 | 1.06 | 1.0 | 0.984 | 126 | 0.3% |
| 100% | 120 | 150.0 | 1.06 | 1.0 | 0.984 | 125 | 0.3% |
| 90% | 120 | 150.0 | 0.988 | 1.0 | 0.982 | 117 | 0.3% |
| 80% | 120 | 150.0 | 0.900 | 1.0 | 0.976 | 106 | 0.3% |
| 70% | 121 | 150.0 | 0.814 | 1.0 | 0.969 | 94.8 | 0.3% |
| 60% | 120 | 150.0 | 0.713 | 1.0 | 0.963 | 82.6 | 0.3% |
| 50% | 121 | 150.0 | 0.619 | 1.0 | 0.963 | 71.6 | 0.4% |
| 40% | 121 | 150.0 | 0.556 | 1.0 | 0.966 | 64.6 | 0.4% |
| 30% | 121 | 150.0 | 0.494 | 1.0 | 0.967 | 57.5 | 0.4% |
| 20% | 121 | 150.0 | 0.441 | 1.0 | 0.963 | 51.2 | 0.4% |
| 10% | 121 | 150.0 | 0.400 | 1.0 | 0.956 | 46.1 | 0.5% |
| Active Idle | 121 | 150.0 | 0.306 | 1.0 | 0.961 | 35.4 | 0.6% |
