Hewlett-Packard Company ProLiant DL170e G6 ssj_ops@100% = 2,886,872
ssj_ops@100% per Host = 721,718
ssj_ops@100% per JVM = 120,286
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Nov 13, 2010
Hardware Availability: Nov-2010 Software Availability: Sep-2009 Publication: Dec 1, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,879,266
Calibration 2     2,896,460
Calibration 3     2,900,118
ssj_ops@calibrated=2,898,289
100% 99.6% 2,898,289 2,886,872
90% 90.2% 2,608,460 2,613,978
80% 79.8% 2,318,631 2,313,793
70% 69.9% 2,028,802 2,024,472
60% 60.0% 1,738,973 1,739,126
50% 49.9% 1,449,144 1,446,103
40% 40.0% 1,159,316 1,159,824
30% 30.0% 869,487 868,136
20% 20.0% 579,658 578,942
10% 10.0% 289,829 288,389
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 64.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HP ProLiant DL2000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: HP part #: 570451-101
Network Switch: 8-port Gigabit switch
Network Switch Details: Netgear GS508T Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL170e G6
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170e G6
Form Factor: 2U
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.27 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL5; slots 1, 5, populated per proc
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB SATA SSD, HP Part #539557-010
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x HP NC362i Integrated Dual Port Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1600m -Xms2000m -Xmx2000m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 2000
JVM Maximum Heap (MB): 2000
JVM Address Bits: 64
Boot Firmware Version: 034 10/25/10
Management Firmware Version: 4.21 7/16/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
Node-1-optimus 721,253
Node-2-optimus 724,297
Node-3-optimus 722,617
Node-4-optimus 718,704
ssj_ops@100% 2,886,872
ssj_ops@100% per Host 721,718
ssj_ops@100% per JVM 120,286

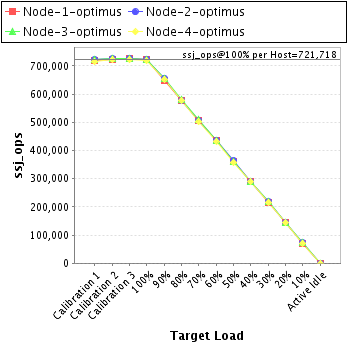

Graph of per-host results
Host 'Node-1-optimus' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     718,592
Calibration 2     723,364
Calibration 3     724,480
ssj_ops@calibrated=723,922
100% 99.6% 723,922 721,253
90% 89.7% 651,530 649,625
80% 79.7% 579,137 576,938
70% 69.9% 506,745 506,202
60% 60.1% 434,353 435,383
50% 49.9% 361,961 361,548
40% 40.1% 289,569 290,545
30% 29.9% 217,177 216,643
20% 19.9% 144,784 144,319
10% 9.9% 72,392 71,680
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node-2-optimus' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     723,118
Calibration 2     725,881
Calibration 3     727,250
ssj_ops@calibrated=726,565
100% 99.7% 726,565 724,297
90% 90.4% 653,909 656,910
80% 79.6% 581,252 578,490
70% 69.8% 508,596 506,806
60% 60.0% 435,939 436,110
50% 50.1% 363,283 364,175
40% 39.8% 290,626 289,410
30% 30.0% 217,970 217,628
20% 20.0% 145,313 145,128
10% 9.9% 72,657 72,269
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node-3-optimus' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     721,892
Calibration 2     725,568
Calibration 3     726,621
ssj_ops@calibrated=726,095
100% 99.5% 726,095 722,617
90% 90.1% 653,485 654,162
80% 79.8% 580,876 579,495
70% 70.2% 508,266 509,909
60% 59.8% 435,657 434,097
50% 49.8% 363,047 361,768
40% 40.1% 290,438 291,179
30% 30.0% 217,828 217,671
20% 20.0% 145,219 145,459
10% 10.0% 72,609 72,639
Active Idle   0 0

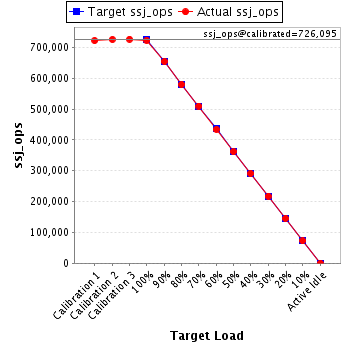

Graph of results
See the Host Performance Report for additional details.
Host 'Node-4-optimus' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     715,665
Calibration 2     721,647
Calibration 3     721,767
ssj_ops@calibrated=721,707
100% 99.6% 721,707 718,704
90% 90.5% 649,537 653,281
80% 80.2% 577,366 578,871
70% 69.5% 505,195 501,554
60% 60.1% 433,024 433,537
50% 49.7% 360,854 358,612
40% 40.0% 288,683 288,690
30% 30.0% 216,512 216,194
20% 20.0% 144,341 144,036
10% 9.9% 72,171 71,801
Active Idle   0 0

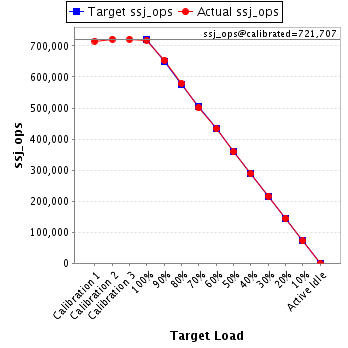

Graph of results
See the Host Performance Report for additional details.
