SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL170e G6 | SPECpower_ssj2008 = 3,212 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Nov 13, 2010 |
| Hardware Availability: | Nov-2010 | Software Availability: | Sep-2009 | Publication: | Dec 1, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

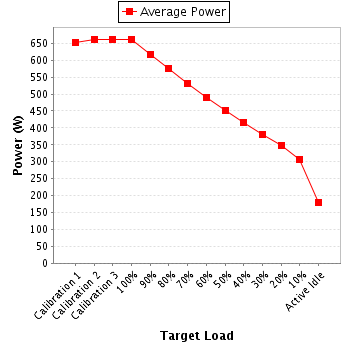

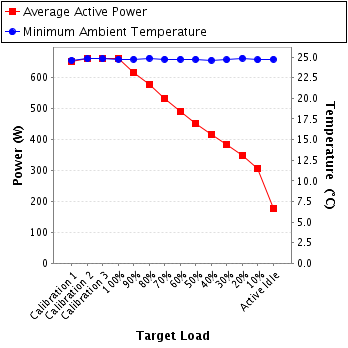

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 653 | 24.6 |
| Calibration 2 | 662 | 24.8 |
| Calibration 3 | 662 | 24.8 |
| 100% | 660 | 24.8 |
| 90% | 617 | 24.8 |
| 80% | 576 | 24.9 |
| 70% | 532 | 24.8 |
| 60% | 490 | 24.8 |
| 50% | 451 | 24.8 |
| 40% | 415 | 24.6 |
| 30% | 382 | 24.7 |
| 20% | 349 | 24.9 |
| 10% | 306 | 24.7 |
| Active Idle | 178 | 24.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705420 |
| Date of Calibration: | 10-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | Connected to SUT Power Supplies |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 3.14 | 5.0 | 0.991 | 653 | 0.4% |
| Calibration 2 | 210 | 300.0 | 3.19 | 5.0 | 0.991 | 662 | 0.4% |
| Calibration 3 | 209 | 300.0 | 3.19 | 5.0 | 0.991 | 662 | 0.4% |
| 100% | 210 | 300.0 | 3.18 | 5.0 | 0.991 | 660 | 0.4% |
| 90% | 210 | 300.0 | 2.97 | 5.0 | 0.990 | 617 | 0.4% |
| 80% | 210 | 300.0 | 2.78 | 5.0 | 0.988 | 576 | 0.4% |
| 70% | 210 | 300.0 | 2.57 | 5.0 | 0.987 | 532 | 0.4% |
| 60% | 210 | 300.0 | 2.37 | 5.0 | 0.986 | 490 | 0.4% |
| 50% | 210 | 300.0 | 2.18 | 5.0 | 0.984 | 451 | 0.5% |
| 40% | 210 | 300.0 | 2.01 | 5.0 | 0.982 | 415 | 0.5% |
| 30% | 210 | 300.0 | 1.86 | 5.0 | 0.981 | 382 | 0.5% |
| 20% | 210 | 300.0 | 1.70 | 5.0 | 0.980 | 349 | 0.6% |
| 10% | 210 | 300.0 | 1.50 | 2.0 | 0.974 | 306 | 0.3% |
| Active Idle | 210 | 300.0 | 0.892 | 2.0 | 0.951 | 178 | 0.5% |
