SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX150 S7 (Intel Xeon X3480) | SPECpower_ssj2008 = 2,513 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Oct 20, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Nov-2009 | Publication: | Dec 1, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

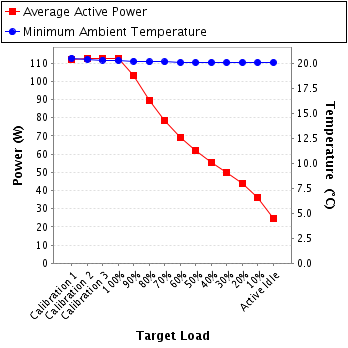

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 112 | 20.6 |
| Calibration 2 | 113 | 20.4 |
| Calibration 3 | 113 | 20.4 |
| 100% | 113 | 20.3 |
| 90% | 103 | 20.2 |
| 80% | 89.7 | 20.2 |
| 70% | 78.3 | 20.2 |
| 60% | 69.0 | 20.1 |
| 50% | 61.9 | 20.1 |
| 40% | 55.6 | 20.1 |
| 30% | 49.7 | 20.1 |
| 20% | 43.7 | 20.1 |
| 10% | 36.0 | 20.1 |
| Active Idle | 24.8 | 20.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HA48097 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 09116242 |
| Date of Calibration: | 20-Nov-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |

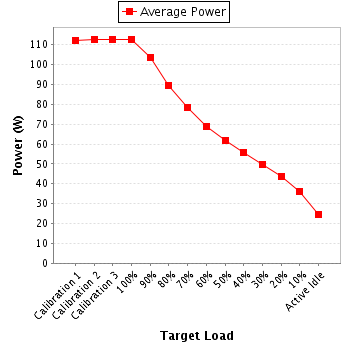

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 300.0 | 0.541 | 1.0 | 0.899 | 112 | 0.5% |
| Calibration 2 | 230 | 300.0 | 0.543 | 1.0 | 0.900 | 113 | 0.5% |
| Calibration 3 | 231 | 300.0 | 0.544 | 1.0 | 0.900 | 113 | 0.5% |
| 100% | 231 | 300.0 | 0.543 | 1.0 | 0.900 | 113 | 0.5% |
| 90% | 230 | 300.0 | 0.505 | 1.0 | 0.891 | 103 | 0.5% |
| 80% | 230 | 300.0 | 0.447 | 0.5 | 0.877 | 89.7 | 0.4% |
| 70% | 231 | 300.0 | 0.394 | 0.5 | 0.864 | 78.3 | 0.4% |
| 60% | 231 | 300.0 | 0.352 | 0.5 | 0.852 | 69.0 | 0.4% |
| 50% | 231 | 300.0 | 0.319 | 0.5 | 0.840 | 61.9 | 0.5% |
| 40% | 231 | 300.0 | 0.292 | 0.5 | 0.827 | 55.6 | 0.5% |
| 30% | 231 | 300.0 | 0.266 | 0.5 | 0.811 | 49.7 | 0.5% |
| 20% | 231 | 300.0 | 0.240 | 0.5 | 0.789 | 43.7 | 0.6% |
| 10% | 231 | 300.0 | 0.207 | 0.5 | 0.753 | 36.0 | 0.7% |
| Active Idle | 231 | 300.0 | 0.156 | 0.2 | 0.687 | 24.8 | 0.6% |
