SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GT310 F1 (Intel Xeon X3470, 2.93 GHz) | SPECpower_ssj2008 = 1,987 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Oct 22, 2010 |
| Hardware Availability: | Mar-2010 | Software Availability: | Dec-2009 | Publication: | Dec 1, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 313,001 | 127 | 2,467 |
| 90% | 90.1% | 283,624 | 116 | 2,435 |
| 80% | 79.6% | 250,370 | 106 | 2,363 |
| 70% | 69.4% | 218,475 | 96.7 | 2,259 |
| 60% | 59.8% | 188,151 | 87.5 | 2,151 |
| 50% | 50.0% | 157,220 | 78.0 | 2,015 |
| 40% | 40.2% | 126,502 | 68.6 | 1,843 |
| 30% | 30.0% | 94,505 | 59.7 | 1,582 |
| 20% | 20.0% | 62,853 | 51.1 | 1,230 |
| 10% | 10.0% | 31,319 | 43.0 | 728 |
| Active Idle | 0 | 34.6 | 0 | |
| ∑ssj_ops / ∑power = | 1,987 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GT310 F1 (Intel Xeon X3470, 2.93 GHz) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon X3470 |
| CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600R; slots 1A and 2A are populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | FSP450-60EP |
| Disk Drive: | 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x single-port Intel 82574L Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balance power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition |
| OS Version: | 6.1.7600 Build 7600 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM <build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_049398 <JIT enabled, AOT enabled> |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -ms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P05 |
| Management Firmware Version: | 01.40 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GT110 F1 |
| CPU Description: | Xeon UP Quad-Core E3110 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2 Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC17356 |
| Connectivity: | RS-232-C |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
| Calibration Label: | T9903260701 |
| Date of Calibration: | 30-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | Temperature@lert |
| Driver Version: | 2.6.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 127 | 23.5 |
| 90% | 116 | 23.6 |
| 80% | 106 | 23.8 |
| 70% | 96.7 | 23.9 |
| 60% | 87.5 | 24.1 |
| 50% | 78.0 | 24.1 |
| 40% | 68.6 | 24.3 |
| 30% | 59.7 | 24.2 |
| 20% | 51.1 | 23.9 |
| 10% | 43.0 | 23.9 |
| Active Idle | 34.6 | 23.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 23.5 | 1 |

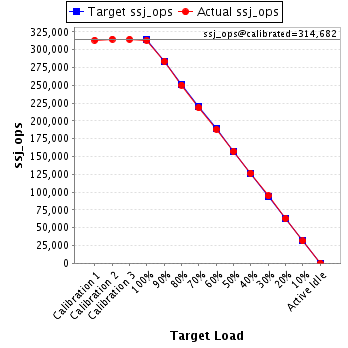

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 313,352 | ||
| Calibration 2 | 314,744 | ||
| Calibration 3 | 314,620 | ||
| ssj_ops@calibrated=314,682 | |||
| 100% | 99.5% | 314,682 | 313,001 |
| 90% | 90.1% | 283,213 | 283,624 |
| 80% | 79.6% | 251,745 | 250,370 |
| 70% | 69.4% | 220,277 | 218,475 |
| 60% | 59.8% | 188,809 | 188,151 |
| 50% | 50.0% | 157,341 | 157,220 |
| 40% | 40.2% | 125,873 | 126,502 |
| 30% | 30.0% | 94,404 | 94,505 |
| 20% | 20.0% | 62,936 | 62,853 |
| 10% | 10.0% | 31,468 | 31,319 |
| Active Idle | 0 | 0 | |
