Acer Incorporated Gateway GR320 F1 (Intel Xeon X3470, 2.93 GHz) | SPECpower_ssj2008 = 1,932 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Oct 25, 2010 |
Hardware Availability: | Mar-2010 | Software Availability: | Dec-2009 | Publication: | Dec 1, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

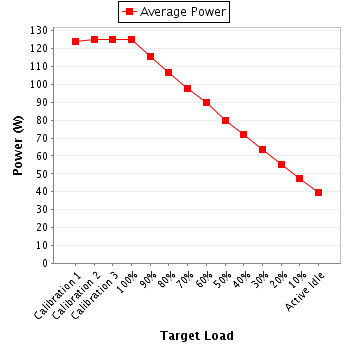

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 124 | 22.7 |
Calibration 2 | 125 | 22.6 |
Calibration 3 | 125 | 22.4 |
100% | 125 | 22.2 |
90% | 116 | 22.2 |
80% | 107 | 22.0 |
70% | 98.0 | 21.9 |
60% | 89.7 | 21.8 |
50% | 80.0 | 21.8 |
40% | 71.9 | 21.8 |
30% | 63.5 | 21.8 |
20% | 55.2 | 21.7 |
10% | 47.4 | 21.7 |
Active Idle | 39.6 | 21.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC17356 |
Connectivity: | RS-232-C |
Input Connection: | Default |
Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
Calibration Label: | T9903260701 |
Date of Calibration: | 30-Mar-2010 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | Temperature@lert |
Driver Version: | 2.6.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 115 | 150.0 | 1.09 | 1.0 | 0.985 | 124 | 0.3% |
Calibration 2 | 115 | 150.0 | 1.10 | 1.0 | 0.985 | 125 | 0.3% |
Calibration 3 | 115 | 150.0 | 1.10 | 1.0 | 0.986 | 125 | 0.3% |
100% | 115 | 150.0 | 1.10 | 1.0 | 0.985 | 125 | 0.3% |
90% | 115 | 150.0 | 1.02 | 1.0 | 0.982 | 116 | 0.3% |
80% | 115 | 150.0 | 0.946 | 1.0 | 0.977 | 107 | 0.3% |
70% | 115 | 150.0 | 0.875 | 1.0 | 0.971 | 98.0 | 0.3% |
60% | 115 | 150.0 | 0.805 | 1.0 | 0.966 | 89.7 | 0.3% |
50% | 115 | 150.0 | 0.722 | 1.0 | 0.960 | 80.0 | 0.3% |
40% | 115 | 150.0 | 0.652 | 1.0 | 0.955 | 71.9 | 0.4% |
30% | 116 | 150.0 | 0.579 | 1.0 | 0.950 | 63.5 | 0.4% |
20% | 116 | 150.0 | 0.506 | 1.0 | 0.946 | 55.2 | 0.4% |
10% | 116 | 150.0 | 0.435 | 1.0 | 0.943 | 47.4 | 0.5% |
Active Idle | 116 | 150.0 | 0.364 | 1.0 | 0.943 | 39.6 | 0.5% |
