SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GR385 F1 (AMD Opteron 6174, 2.20 GHz) | SPECpower_ssj2008 = 2,426 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Oct 19, 2010 |
| Hardware Availability: | Oct-2010 | Software Availability: | Dec-2009 | Publication: | Nov 18, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

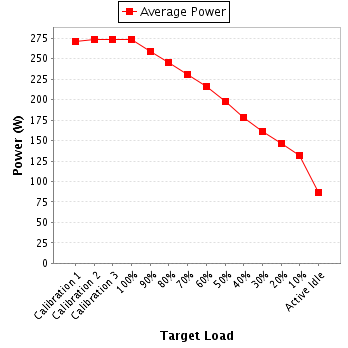

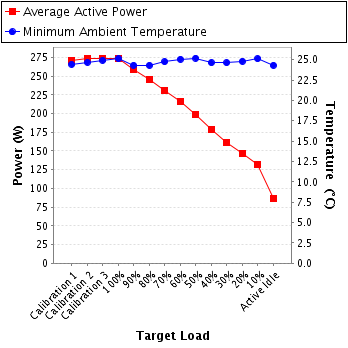

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 271 | 24.4 |
| Calibration 2 | 274 | 24.7 |
| Calibration 3 | 274 | 24.9 |
| 100% | 273 | 25.1 |
| 90% | 259 | 24.3 |
| 80% | 245 | 24.3 |
| 70% | 230 | 24.8 |
| 60% | 216 | 25.1 |
| 50% | 198 | 25.2 |
| 40% | 179 | 24.6 |
| 30% | 161 | 24.6 |
| 20% | 146 | 24.8 |
| 10% | 132 | 25.1 |
| Active Idle | 86.5 | 24.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 10-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 1.28 | 2.0 | 0.959 | 271 | 0.4% |
| Calibration 2 | 221 | 300.0 | 1.29 | 2.0 | 0.959 | 274 | 0.4% |
| Calibration 3 | 221 | 300.0 | 1.29 | 2.0 | 0.959 | 274 | 0.4% |
| 100% | 221 | 300.0 | 1.29 | 2.0 | 0.959 | 273 | 0.4% |
| 90% | 221 | 300.0 | 1.22 | 2.0 | 0.957 | 259 | 0.4% |
| 80% | 222 | 300.0 | 1.16 | 2.0 | 0.954 | 245 | 0.4% |
| 70% | 222 | 300.0 | 1.09 | 1.0 | 0.951 | 230 | 0.3% |
| 60% | 222 | 300.0 | 1.03 | 1.0 | 0.947 | 216 | 0.3% |
| 50% | 222 | 300.0 | 0.950 | 1.0 | 0.942 | 198 | 0.3% |
| 40% | 222 | 300.0 | 0.861 | 1.0 | 0.935 | 179 | 0.3% |
| 30% | 222 | 300.0 | 0.785 | 1.0 | 0.928 | 161 | 0.4% |
| 20% | 222 | 300.0 | 0.717 | 1.0 | 0.920 | 146 | 0.4% |
| 10% | 222 | 300.0 | 0.653 | 1.0 | 0.911 | 132 | 0.4% |
| Active Idle | 222 | 300.0 | 0.452 | 1.0 | 0.864 | 86.5 | 0.6% |
