Acer Incorporated Gateway GW2000h-GW175h F1 ssj_ops@100% = 934,651
ssj_ops@100% per JVM = 233,663
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 5, 2010
Hardware Availability: Aug-2010 Software Availability: Dec-2009 Publication: Nov 10, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     940,131
Calibration 2     942,347
Calibration 3     941,591
ssj_ops@calibrated=941,969
100% 99.2% 941,969 934,651
90% 90.0% 847,772 847,662
80% 80.0% 753,575 753,783
70% 70.0% 659,378 659,526
60% 60.0% 565,181 564,750
50% 49.9% 470,985 470,103
40% 40.2% 376,788 378,814
30% 30.0% 282,591 282,750
20% 20.2% 188,394 190,324
10% 9.8% 94,197 92,193
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW175h F1
Form Factor: 1U
CPU Name: AMD Opteron 6174
CPU Characteristics: 12-Core, 2.20 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 1Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [00003F, 000FC0, 03F000, FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B4O9LANPBF4.001 231,295
WIN-B4O9LANPBF4.002 233,616
WIN-B4O9LANPBF4.003 234,317
WIN-B4O9LANPBF4.004 235,424
ssj_ops@100% 934,651
ssj_ops@100% per JVM 233,663

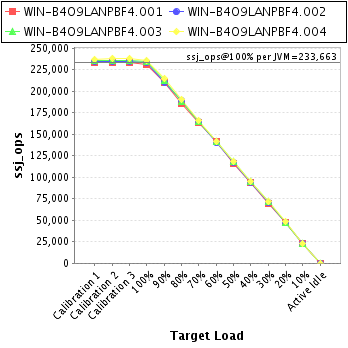

Graph of per-instance results
JVM 'WIN-B4O9LANPBF4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,122
Calibration 2     233,241
Calibration 3     232,909
ssj_ops@calibrated=233,075
100% 99.2% 233,075 231,295
90% 90.3% 209,768 210,509
80% 79.9% 186,460 186,143
70% 70.3% 163,153 163,780
60% 60.6% 139,845 141,261
50% 49.6% 116,538 115,564
40% 40.3% 93,230 93,918
30% 29.9% 69,923 69,739
20% 20.2% 46,615 47,092
10% 9.9% 23,308 23,118
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4O9LANPBF4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,469
Calibration 2     234,682
Calibration 3     234,536
ssj_ops@calibrated=234,609
100% 99.6% 234,609 233,616
90% 89.7% 211,148 210,415
80% 80.6% 187,687 189,168
70% 70.1% 164,226 164,532
60% 59.6% 140,765 139,942
50% 49.9% 117,305 117,152
40% 40.2% 93,844 94,397
30% 30.0% 70,383 70,476
20% 20.2% 46,922 47,397
10% 9.8% 23,461 22,994
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4O9LANPBF4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,736
Calibration 2     236,086
Calibration 3     236,099
ssj_ops@calibrated=236,093
100% 99.2% 236,093 234,317
90% 90.0% 212,483 212,482
80% 79.5% 188,874 187,773
70% 70.0% 165,265 165,300
60% 60.0% 141,656 141,707
50% 50.3% 118,046 118,835
40% 40.3% 94,437 95,163
30% 30.2% 70,828 71,260
20% 20.2% 47,219 47,678
10% 9.8% 23,609 23,117
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4O9LANPBF4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,804
Calibration 2     238,338
Calibration 3     238,047
ssj_ops@calibrated=238,192
100% 98.8% 238,192 235,424
90% 90.0% 214,373 214,255
80% 80.1% 190,554 190,699
70% 69.7% 166,735 165,914
60% 59.5% 142,915 141,839
50% 49.8% 119,096 118,551
40% 40.0% 95,277 95,336
30% 29.9% 71,458 71,275
20% 20.2% 47,638 48,157
10% 9.6% 23,819 22,964
Active Idle   0 0

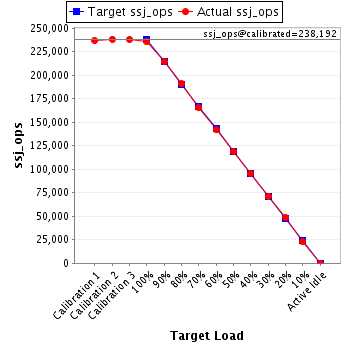

Graph of results
See the JVM Instance Performance Report for additional details.
