SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GW2000h-GW175h F1 | SPECpower_ssj2008 = 2,481 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Oct 5, 2010 |
| Hardware Availability: | Aug-2010 | Software Availability: | Dec-2009 | Publication: | Nov 10, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

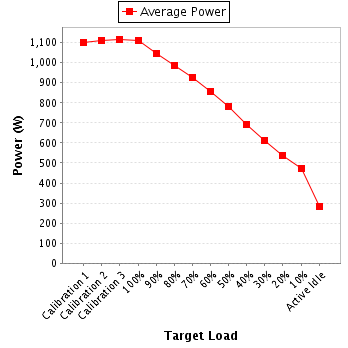

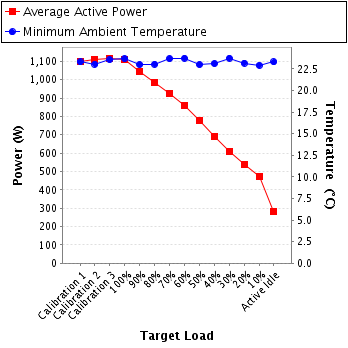

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,099 | 23.3 |
| Calibration 2 | 1,113 | 23.1 |
| Calibration 3 | 1,117 | 23.6 |
| 100% | 1,111 | 23.7 |
| 90% | 1,044 | 23.0 |
| 80% | 984 | 23.1 |
| 70% | 925 | 23.7 |
| 60% | 857 | 23.8 |
| 50% | 779 | 23.0 |
| 40% | 693 | 23.1 |
| 30% | 611 | 23.8 |
| 20% | 538 | 23.2 |
| 10% | 473 | 22.9 |
| Active Idle | 284 | 23.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 1-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 215 | 300.0 | 5.15 | 10.0 | 0.994 | 1,099 | 0.4% |
| Calibration 2 | 215 | 300.0 | 5.20 | 10.0 | 0.994 | 1,113 | 0.4% |
| Calibration 3 | 215 | 300.0 | 5.22 | 10.0 | 0.994 | 1,117 | 0.4% |
| 100% | 215 | 300.0 | 5.19 | 10.0 | 0.994 | 1,111 | 0.4% |
| 90% | 216 | 300.0 | 4.86 | 10.0 | 0.993 | 1,044 | 0.4% |
| 80% | 217 | 300.0 | 4.58 | 10.0 | 0.993 | 984 | 0.4% |
| 70% | 214 | 300.0 | 4.35 | 5.0 | 0.992 | 925 | 0.3% |
| 60% | 214 | 300.0 | 4.04 | 5.0 | 0.992 | 857 | 0.3% |
| 50% | 215 | 300.0 | 3.66 | 5.0 | 0.990 | 779 | 0.3% |
| 40% | 215 | 300.0 | 3.26 | 5.0 | 0.989 | 693 | 0.3% |
| 30% | 215 | 300.0 | 2.88 | 5.0 | 0.987 | 611 | 0.4% |
| 20% | 216 | 300.0 | 2.53 | 5.0 | 0.985 | 538 | 0.4% |
| 10% | 216 | 300.0 | 2.23 | 5.0 | 0.982 | 473 | 0.5% |
| Active Idle | 217 | 300.0 | 1.35 | 2.0 | 0.968 | 284 | 0.4% |
