SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/E120b-1 | SPECpower_ssj2008 = 2,118 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Sep 2, 2010 |
| Hardware Availability: | Sep-2010 | Software Availability: | Feb-2010 | Publication: | Sep 22, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

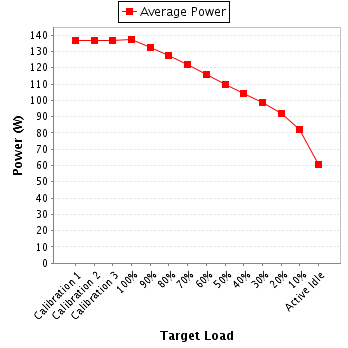

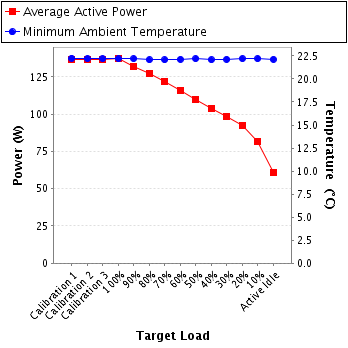

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 136 | 22.2 |
| Calibration 2 | 137 | 22.2 |
| Calibration 3 | 137 | 22.2 |
| 100% | 138 | 22.2 |
| 90% | 132 | 22.2 |
| 80% | 127 | 22.1 |
| 70% | 122 | 22.1 |
| 60% | 116 | 22.1 |
| 50% | 110 | 22.2 |
| 40% | 104 | 22.1 |
| 30% | 98.4 | 22.1 |
| 20% | 92.1 | 22.2 |
| 10% | 81.8 | 22.2 |
| Active Idle | 60.7 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928024 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-95429 |
| Date of Calibration: | 4-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 0.726 | 1.0 | 0.924 | 136 | 0.4% |
| Calibration 2 | 203 | 300.0 | 0.728 | 1.0 | 0.925 | 137 | 0.4% |
| Calibration 3 | 203 | 300.0 | 0.729 | 1.0 | 0.925 | 137 | 0.4% |
| 100% | 203 | 300.0 | 0.732 | 1.0 | 0.925 | 138 | 0.4% |
| 90% | 203 | 300.0 | 0.707 | 1.0 | 0.921 | 132 | 0.4% |
| 80% | 203 | 300.0 | 0.683 | 1.0 | 0.917 | 127 | 0.4% |
| 70% | 203 | 300.0 | 0.657 | 1.0 | 0.913 | 122 | 0.4% |
| 60% | 203 | 300.0 | 0.628 | 1.0 | 0.907 | 116 | 0.5% |
| 50% | 203 | 300.0 | 0.601 | 1.0 | 0.901 | 110 | 0.5% |
| 40% | 203 | 300.0 | 0.574 | 1.0 | 0.894 | 104 | 0.5% |
| 30% | 203 | 300.0 | 0.548 | 1.0 | 0.886 | 98.4 | 0.5% |
| 20% | 202 | 300.0 | 0.521 | 1.0 | 0.874 | 92.1 | 0.5% |
| 10% | 202 | 300.0 | 0.477 | 1.0 | 0.848 | 81.8 | 0.6% |
| Active Idle | 202 | 300.0 | 0.376 | 1.0 | 0.799 | 60.7 | 0.7% |
