Acer Incorporated Acer AR360 F1 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 890,144
ssj_ops@100% per JVM = 148,357
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Aug 19, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Sep 22, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     888,721
Calibration 2     890,861
Calibration 3     892,196
ssj_ops@calibrated=891,528
100% 99.8% 891,528 890,144
90% 89.8% 802,376 800,629
80% 79.7% 713,223 710,930
70% 70.1% 624,070 624,829
60% 60.0% 534,917 534,810
50% 49.6% 445,764 442,251
40% 40.0% 356,611 356,683
30% 30.1% 267,459 268,606
20% 19.8% 178,306 176,427
10% 9.9% 89,153 88,104
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR360 F1 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: PWS-703P-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer Part#KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P02
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-VD0SLJF7GLU.001 151,696
WIN-VD0SLJF7GLU.002 151,729
WIN-VD0SLJF7GLU.003 144,389
WIN-VD0SLJF7GLU.004 148,685
WIN-VD0SLJF7GLU.005 145,706
WIN-VD0SLJF7GLU.006 147,939
ssj_ops@100% 890,144
ssj_ops@100% per JVM 148,357

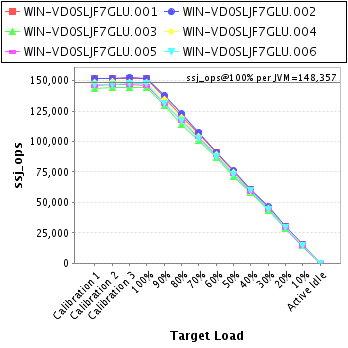

Graph of per-instance results
JVM 'WIN-VD0SLJF7GLU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,183
Calibration 2     152,129
Calibration 3     151,477
ssj_ops@calibrated=151,803
100% 99.9% 151,803 151,696
90% 89.5% 136,623 135,923
80% 79.3% 121,443 120,322
70% 70.2% 106,262 106,501
60% 60.0% 91,082 91,132
50% 49.3% 75,902 74,859
40% 40.2% 60,721 60,959
30% 29.6% 45,541 44,931
20% 19.7% 30,361 29,844
10% 10.0% 15,180 15,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0SLJF7GLU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,623
Calibration 2     152,086
Calibration 3     152,871
ssj_ops@calibrated=152,479
100% 99.5% 152,479 151,729
90% 90.5% 137,231 138,013
80% 80.6% 121,983 122,842
70% 70.6% 106,735 107,675
60% 59.8% 91,487 91,175
50% 50.0% 76,239 76,244
40% 39.9% 60,991 60,900
30% 30.3% 45,744 46,265
20% 19.9% 30,496 30,348
10% 9.9% 15,248 15,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0SLJF7GLU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,616
Calibration 2     144,200
Calibration 3     144,569
ssj_ops@calibrated=144,384
100% 100.0% 144,384 144,389
90% 89.7% 129,946 129,497
80% 79.0% 115,508 114,062
70% 69.6% 101,069 100,516
60% 60.4% 86,631 87,242
50% 49.2% 72,192 71,106
40% 40.0% 57,754 57,749
30% 30.2% 43,315 43,619
20% 19.5% 28,877 28,207
10% 9.9% 14,438 14,349
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0SLJF7GLU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,611
Calibration 2     149,069
Calibration 3     148,858
ssj_ops@calibrated=148,964
100% 99.8% 148,964 148,685
90% 90.5% 134,068 134,809
80% 80.1% 119,171 119,390
70% 69.7% 104,275 103,859
60% 59.8% 89,378 89,119
50% 49.9% 74,482 74,390
40% 39.6% 59,586 58,944
30% 30.3% 44,689 45,202
20% 19.7% 29,793 29,344
10% 10.0% 14,896 14,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

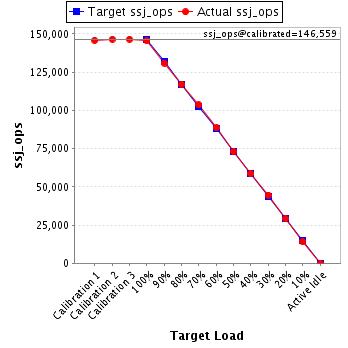

JVM 'WIN-VD0SLJF7GLU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,771
Calibration 2     146,547
Calibration 3     146,571
ssj_ops@calibrated=146,559
100% 99.4% 146,559 145,706
90% 89.4% 131,903 130,964
80% 79.9% 117,247 117,150
70% 70.7% 102,591 103,682
60% 60.5% 87,935 88,654
50% 49.8% 73,279 72,986
40% 40.0% 58,624 58,588
30% 30.5% 43,968 44,627
20% 19.8% 29,312 28,954
10% 9.5% 14,656 13,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-VD0SLJF7GLU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,917
Calibration 2     146,829
Calibration 3     147,850
ssj_ops@calibrated=147,340
100% 100.4% 147,340 147,939
90% 89.2% 132,606 131,422
80% 79.5% 117,872 117,164
70% 69.6% 103,138 102,595
60% 59.4% 88,404 87,487
50% 49.3% 73,670 72,666
40% 40.4% 58,936 59,544
30% 29.8% 44,202 43,962
20% 20.2% 29,468 29,731
10% 9.8% 14,734 14,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
