SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR360 F1 (Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,414 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Aug 19, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Dec-2009 | Publication: | Sep 22, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

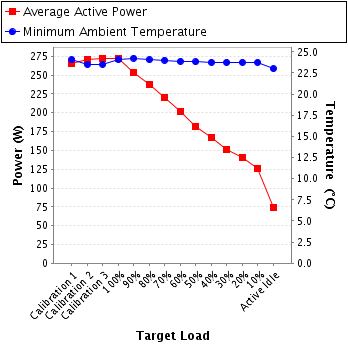

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 265 | 24.1 |
| Calibration 2 | 271 | 23.5 |
| Calibration 3 | 273 | 23.5 |
| 100% | 272 | 24.1 |
| 90% | 254 | 24.2 |
| 80% | 238 | 24.1 |
| 70% | 221 | 24.0 |
| 60% | 202 | 23.9 |
| 50% | 181 | 23.8 |
| 40% | 167 | 23.8 |
| 30% | 151 | 23.8 |
| 20% | 141 | 23.8 |
| 10% | 126 | 23.8 |
| Active Idle | 73.6 | 23.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 1-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 1.27 | 2.0 | 0.948 | 265 | 0.4% |
| Calibration 2 | 221 | 300.0 | 1.29 | 2.0 | 0.948 | 271 | 0.4% |
| Calibration 3 | 221 | 300.0 | 1.30 | 2.0 | 0.948 | 273 | 0.4% |
| 100% | 221 | 300.0 | 1.30 | 2.0 | 0.948 | 272 | 0.4% |
| 90% | 221 | 300.0 | 1.22 | 2.0 | 0.946 | 254 | 0.4% |
| 80% | 221 | 300.0 | 1.14 | 2.0 | 0.943 | 238 | 0.4% |
| 70% | 221 | 300.0 | 1.06 | 1.0 | 0.940 | 221 | 0.3% |
| 60% | 221 | 300.0 | 0.973 | 1.0 | 0.938 | 202 | 0.3% |
| 50% | 221 | 300.0 | 0.876 | 1.0 | 0.935 | 181 | 0.3% |
| 40% | 221 | 300.0 | 0.809 | 1.0 | 0.932 | 167 | 0.4% |
| 30% | 221 | 300.0 | 0.738 | 1.0 | 0.926 | 151 | 0.4% |
| 20% | 221 | 300.0 | 0.691 | 1.0 | 0.922 | 141 | 0.4% |
| 10% | 221 | 300.0 | 0.626 | 1.0 | 0.912 | 126 | 0.4% |
| Active Idle | 222 | 300.0 | 0.394 | 1.0 | 0.844 | 73.6 | 0.6% |
