SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation System x3630 M3 | SPECpower_ssj2008 = 2,550 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Jul 29, 2010 |
| Hardware Availability: | Sep-2010 | Software Availability: | Jun-2009 | Publication: | Sep 22, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

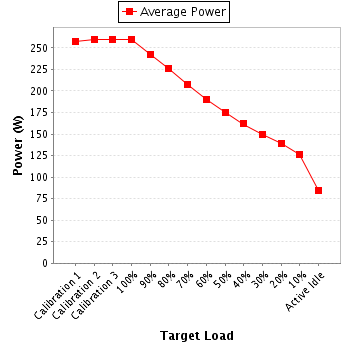

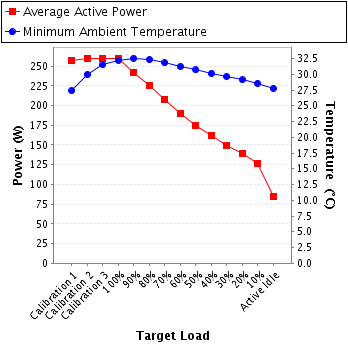

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 258 | 27.4 |
| Calibration 2 | 260 | 29.9 |
| Calibration 3 | 260 | 31.5 |
| 100% | 259 | 32.2 |
| 90% | 242 | 32.6 |
| 80% | 226 | 32.3 |
| 70% | 207 | 31.8 |
| 60% | 190 | 31.2 |
| 50% | 175 | 30.7 |
| 40% | 162 | 30.1 |
| 30% | 150 | 29.6 |
| 20% | 139 | 29.1 |
| 10% | 126 | 28.6 |
| Active Idle | 84.6 | 27.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-377-03 |
| Date of Calibration: | 23-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.30 | 2.0 | 0.961 | 258 | 0.4% |
| Calibration 2 | 207 | 300.0 | 1.30 | 2.0 | 0.961 | 260 | 0.4% |
| Calibration 3 | 207 | 300.0 | 1.31 | 2.0 | 0.961 | 260 | 0.4% |
| 100% | 207 | 300.0 | 1.30 | 2.0 | 0.961 | 259 | 0.4% |
| 90% | 205 | 300.0 | 1.23 | 2.0 | 0.959 | 242 | 0.4% |
| 80% | 205 | 300.0 | 1.15 | 2.0 | 0.955 | 226 | 0.4% |
| 70% | 205 | 300.0 | 1.06 | 2.0 | 0.950 | 207 | 0.5% |
| 60% | 205 | 300.0 | 0.979 | 1.0 | 0.945 | 190 | 0.3% |
| 50% | 205 | 300.0 | 0.908 | 1.0 | 0.940 | 175 | 0.3% |
| 40% | 205 | 300.0 | 0.844 | 1.0 | 0.934 | 162 | 0.4% |
| 30% | 205 | 300.0 | 0.786 | 1.0 | 0.928 | 150 | 0.4% |
| 20% | 206 | 300.0 | 0.730 | 1.0 | 0.923 | 139 | 0.4% |
| 10% | 205 | 300.0 | 0.671 | 1.0 | 0.915 | 126 | 0.4% |
| Active Idle | 206 | 300.0 | 0.473 | 0.5 | 0.870 | 84.6 | 0.4% |
