SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/R120b-1 | SPECpower_ssj2008 = 2,340 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Aug 10, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Feb-2010 | Publication: | Sep 9, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

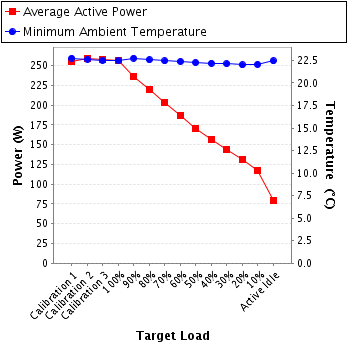

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 255 | 22.8 |
| Calibration 2 | 259 | 22.6 |
| Calibration 3 | 258 | 22.5 |
| 100% | 257 | 22.4 |
| 90% | 236 | 22.8 |
| 80% | 220 | 22.6 |
| 70% | 203 | 22.4 |
| 60% | 187 | 22.4 |
| 50% | 171 | 22.2 |
| 40% | 157 | 22.2 |
| 30% | 143 | 22.1 |
| 20% | 131 | 22.0 |
| 10% | 118 | 22.1 |
| Active Idle | 79.0 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928024 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-95429 |
| Date of Calibration: | 4-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |

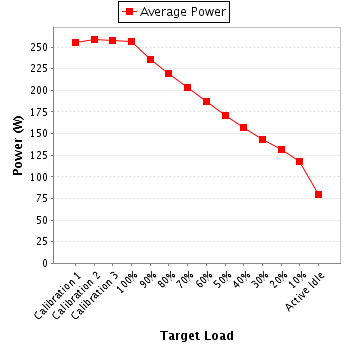

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 300.0 | 1.28 | 2.0 | 0.985 | 255 | 0.4% |
| Calibration 2 | 203 | 300.0 | 1.30 | 2.0 | 0.985 | 259 | 0.4% |
| Calibration 3 | 203 | 300.0 | 1.29 | 2.0 | 0.985 | 258 | 0.4% |
| 100% | 203 | 300.0 | 1.28 | 2.0 | 0.985 | 257 | 0.4% |
| 90% | 203 | 300.0 | 1.18 | 2.0 | 0.984 | 236 | 0.4% |
| 80% | 203 | 300.0 | 1.10 | 2.0 | 0.981 | 220 | 0.4% |
| 70% | 203 | 300.0 | 1.02 | 2.0 | 0.979 | 203 | 0.4% |
| 60% | 203 | 300.0 | 0.942 | 2.0 | 0.975 | 187 | 0.5% |
| 50% | 203 | 300.0 | 0.864 | 1.0 | 0.973 | 171 | 0.3% |
| 40% | 203 | 300.0 | 0.794 | 1.0 | 0.971 | 157 | 0.3% |
| 30% | 203 | 300.0 | 0.728 | 1.0 | 0.970 | 143 | 0.4% |
| 20% | 203 | 300.0 | 0.668 | 1.0 | 0.968 | 131 | 0.4% |
| 10% | 203 | 300.0 | 0.607 | 1.0 | 0.952 | 118 | 0.4% |
| Active Idle | 204 | 300.0 | 0.413 | 1.0 | 0.940 | 79.0 | 0.6% |
