Dell Inc. PowerEdge R710 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 910,978
ssj_ops@100% per JVM = 151,830
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 2, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Aug 11, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     912,045
Calibration 2     914,706
Calibration 3     914,906
ssj_ops@calibrated=914,806
100% 99.6% 914,806 910,978
90% 90.0% 823,326 822,964
80% 80.4% 731,845 735,197
70% 70.1% 640,364 640,861
60% 60.0% 548,884 549,236
50% 50.3% 457,403 459,749
40% 40.0% 365,923 365,778
30% 30.0% 274,442 274,650
20% 20.1% 182,961 183,486
10% 10.1% 91,481 92,170
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R710 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC; slots A1-A3 and B1-B3 populated
Power Supply Quantity and Rating (W): 1 x 570
Power Supply Details: Dell PN FU100
Disk Drive: 1 x 50GB SSD 2.5" SATA (Dell PN Y949P)
Disk Controller: PERC H200 Integrated
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709C
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1500m -Xmx1500m -Xmn1100m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: 1.5.0 A02
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SSOJHFLOP15.001 152,076
WIN-SSOJHFLOP15.002 151,804
WIN-SSOJHFLOP15.003 153,592
WIN-SSOJHFLOP15.004 151,067
WIN-SSOJHFLOP15.005 150,910
WIN-SSOJHFLOP15.006 151,529
ssj_ops@100% 910,978
ssj_ops@100% per JVM 151,830

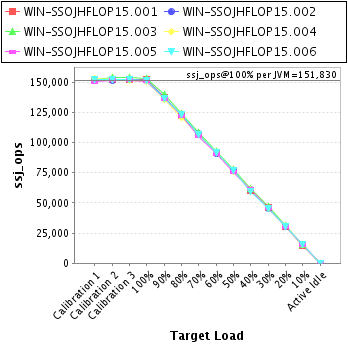

Graph of per-instance results
JVM 'WIN-SSOJHFLOP15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,264
Calibration 2     151,996
Calibration 3     152,644
ssj_ops@calibrated=152,320
100% 99.8% 152,320 152,076
90% 90.0% 137,088 137,153
80% 80.3% 121,856 122,272
70% 70.0% 106,624 106,692
60% 60.1% 91,392 91,567
50% 50.3% 76,160 76,682
40% 39.8% 60,928 60,563
30% 30.2% 45,696 45,958
20% 20.0% 30,464 30,438
10% 9.9% 15,232 15,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,097
Calibration 2     151,822
Calibration 3     152,770
ssj_ops@calibrated=152,296
100% 99.7% 152,296 151,804
90% 90.1% 137,067 137,168
80% 80.4% 121,837 122,404
70% 70.4% 106,607 107,190
60% 59.7% 91,378 90,934
50% 50.5% 76,148 76,854
40% 40.0% 60,919 60,937
30% 29.9% 45,689 45,519
20% 20.1% 30,459 30,670
10% 10.1% 15,230 15,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,106
Calibration 2     154,285
Calibration 3     153,999
ssj_ops@calibrated=154,142
100% 99.6% 154,142 153,592
90% 90.7% 138,728 139,755
80% 80.4% 123,314 123,981
70% 70.4% 107,899 108,463
60% 60.1% 92,485 92,673
50% 50.5% 77,071 77,795
40% 40.3% 61,657 62,177
30% 30.4% 46,243 46,849
20% 20.1% 30,828 31,029
10% 10.1% 15,414 15,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,852
Calibration 2     152,537
Calibration 3     151,743
ssj_ops@calibrated=152,140
100% 99.3% 152,140 151,067
90% 89.2% 136,926 135,705
80% 79.6% 121,712 121,131
70% 70.0% 106,498 106,482
60% 60.3% 91,284 91,762
50% 50.1% 76,070 76,171
40% 40.1% 60,856 60,985
30% 29.9% 45,642 45,476
20% 20.0% 30,428 30,450
10% 10.1% 15,214 15,404
Active Idle   0 0

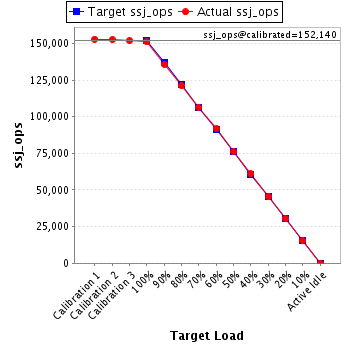

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,612
Calibration 2     151,846
Calibration 3     151,727
ssj_ops@calibrated=151,786
100% 99.4% 151,786 150,910
90% 89.8% 136,608 136,289
80% 80.5% 121,429 122,233
70% 69.5% 106,251 105,451
60% 59.7% 91,072 90,633
50% 49.7% 75,893 75,438
40% 40.4% 60,715 61,263
30% 30.1% 45,536 45,621
20% 19.9% 30,357 30,163
10% 10.0% 15,179 15,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,112
Calibration 2     152,220
Calibration 3     152,023
ssj_ops@calibrated=152,122
100% 99.6% 152,122 151,529
90% 90.0% 136,909 136,895
80% 81.0% 121,697 123,175
70% 70.1% 106,485 106,584
60% 60.3% 91,273 91,667
50% 50.5% 76,061 76,809
40% 39.3% 60,849 59,854
30% 29.7% 45,636 45,227
20% 20.2% 30,424 30,736
10% 10.2% 15,212 15,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
