Dell Inc. PowerEdge R610 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 913,806
ssj_ops@100% per JVM = 152,301
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 16, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Aug 11, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     915,821
Calibration 2     919,838
Calibration 3     918,858
ssj_ops@calibrated=919,348
100% 99.4% 919,348 913,806
90% 90.0% 827,413 827,265
80% 80.1% 735,478 736,085
70% 69.8% 643,544 641,988
60% 60.1% 551,609 552,488
50% 50.1% 459,674 460,146
40% 39.9% 367,739 366,782
30% 29.9% 275,804 275,182
20% 20.0% 183,870 184,066
10% 10.0% 91,935 92,263
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R610 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC; slots A1-A3 and B1-B3 populated
Power Supply Quantity and Rating (W): 1 x 502
Power Supply Details: Dell PN KY091
Disk Drive: 1 x 50GB SSD 2.5" SATA (Dell PN Y949P)
Disk Controller: PERC H200 Integrated
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709C
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1500m -Xmx1500m -Xmn1100m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: 1.5.0 A02
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SSOJHFLOP15.001 150,169
WIN-SSOJHFLOP15.002 154,222
WIN-SSOJHFLOP15.003 153,277
WIN-SSOJHFLOP15.004 150,848
WIN-SSOJHFLOP15.005 150,360
WIN-SSOJHFLOP15.006 154,931
ssj_ops@100% 913,806
ssj_ops@100% per JVM 152,301

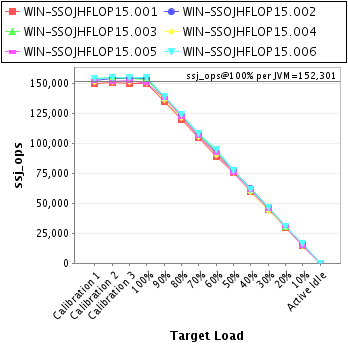

Graph of per-instance results
JVM 'WIN-SSOJHFLOP15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,470
Calibration 2     150,738
Calibration 3     150,270
ssj_ops@calibrated=150,504
100% 99.8% 150,504 150,169
90% 89.8% 135,453 135,163
80% 80.0% 120,403 120,443
70% 70.1% 105,353 105,483
60% 59.2% 90,302 89,098
50% 50.2% 75,252 75,614
40% 39.6% 60,202 59,569
30% 29.8% 45,151 44,897
20% 20.1% 30,101 30,225
10% 10.0% 15,050 15,057
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,708
Calibration 2     154,365
Calibration 3     154,517
ssj_ops@calibrated=154,441
100% 99.9% 154,441 154,222
90% 89.5% 138,997 138,150
80% 79.7% 123,553 123,151
70% 69.8% 108,109 107,767
60% 60.0% 92,665 92,669
50% 50.3% 77,220 77,683
40% 40.3% 61,776 62,302
30% 30.2% 46,332 46,689
20% 20.1% 30,888 31,104
10% 9.9% 15,444 15,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,631
Calibration 2     155,302
Calibration 3     154,653
ssj_ops@calibrated=154,978
100% 98.9% 154,978 153,277
90% 89.6% 139,480 138,934
80% 79.9% 123,982 123,862
70% 69.7% 108,484 107,982
60% 60.3% 92,987 93,522
50% 50.1% 77,489 77,636
40% 39.9% 61,991 61,866
30% 30.1% 46,493 46,658
20% 19.7% 30,996 30,596
10% 10.2% 15,498 15,847
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,550
Calibration 2     152,087
Calibration 3     151,549
ssj_ops@calibrated=151,818
100% 99.4% 151,818 150,848
90% 90.4% 136,637 137,206
80% 80.2% 121,455 121,717
70% 69.9% 106,273 106,057
60% 59.7% 91,091 90,612
50% 49.9% 75,909 75,724
40% 39.6% 60,727 60,185
30% 29.2% 45,546 44,389
20% 20.1% 30,364 30,517
10% 10.0% 15,182 15,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,023
Calibration 2     151,818
Calibration 3     152,594
ssj_ops@calibrated=152,206
100% 98.8% 152,206 150,360
90% 90.8% 136,985 138,279
80% 80.4% 121,765 122,312
70% 69.7% 106,544 106,100
60% 60.3% 91,324 91,777
50% 49.8% 76,103 75,860
40% 40.0% 60,882 60,903
30% 29.9% 45,662 45,575
20% 20.3% 30,441 30,912
10% 9.7% 15,221 14,793
Active Idle   0 0

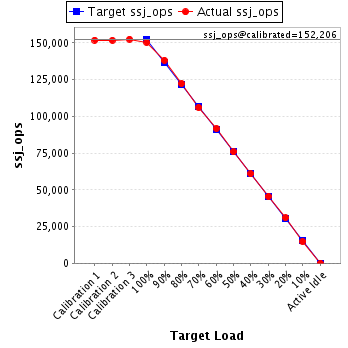

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,439
Calibration 2     155,527
Calibration 3     155,275
ssj_ops@calibrated=155,401
100% 99.7% 155,401 154,931
90% 89.8% 139,861 139,534
80% 80.2% 124,321 124,601
70% 69.9% 108,781 108,599
60% 61.0% 93,241 94,810
50% 50.0% 77,701 77,628
40% 39.9% 62,160 61,957
30% 30.2% 46,620 46,976
20% 19.8% 31,080 30,712
10% 10.4% 15,540 16,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
