Dell Inc. PowerEdge R610 (Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 3,004 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 16, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Aug 11, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 236 23.2
Calibration 2 242 23.2
Calibration 3 243 23.2
100% 242 23.2
90% 218 23.2
80% 195 23.2
70% 176 23.2
60% 160 23.2
50% 149 23.2
40% 137 23.2
30% 126 23.2
20% 115 23.2
10% 102 23.2
Active Idle 61.9 23.2

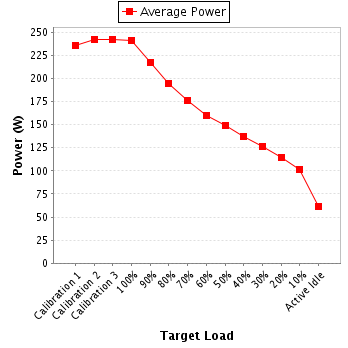

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91JB09484
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 09-2635
Date of Calibration: 17-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.19 2.0 0.947 236 0.4%
Calibration 2 209 300.0 1.22 2.0 0.949 242 0.4%
Calibration 3 209 300.0 1.22 2.0 0.949 243 0.4%
100% 209 300.0 1.22 2.0 0.949 242 0.4%
90% 209 300.0 1.11 2.0 0.940 218 0.4%
80% 209 300.0 1.00 2.0 0.930 195 0.5%
70% 210 300.0 0.914 1.0 0.920 176 0.4%
60% 208 300.0 0.845 1.0 0.912 160 0.4%
50% 208 300.0 0.792 1.0 0.905 149 0.4%
40% 208 300.0 0.733 1.0 0.898 137 0.4%
30% 207 300.0 0.680 1.0 0.893 126 0.4%
20% 207 300.0 0.626 1.0 0.887 115 0.5%
10% 208 300.0 0.566 1.0 0.868 102 0.5%
Active Idle 208 300.0 0.411 0.5 0.724 61.9 0.5%
Power details for pwr1
