Acer Incorporated Acer AR380 F1 (Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 2,502 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 21, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Jul 14, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 260 23.1
Calibration 2 260 21.4
Calibration 3 259 20.4
100% 259 21.2
90% 244 22.6
80% 229 22.4
70% 213 20.4
60% 197 20.7
50% 179 22.2
40% 163 23.3
30% 149 20.4
20% 138 20.2
10% 126 21.6
Active Idle 76.6 22.9

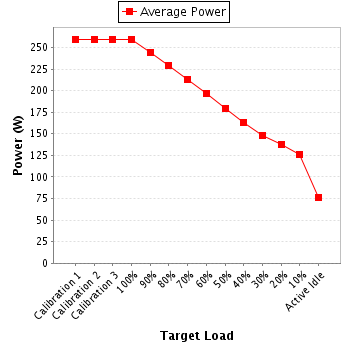

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.22 2.0 0.958 260 0.4%
Calibration 2 221 300.0 1.22 2.0 0.958 260 0.4%
Calibration 3 221 300.0 1.22 2.0 0.958 259 0.4%
100% 222 300.0 1.22 2.0 0.958 259 0.4%
90% 222 300.0 1.15 2.0 0.955 244 0.4%
80% 222 300.0 1.09 2.0 0.952 229 0.4%
70% 222 300.0 1.02 1.0 0.947 213 0.3%
60% 222 300.0 0.942 1.0 0.942 197 0.3%
50% 222 300.0 0.865 1.0 0.936 179 0.3%
40% 222 300.0 0.793 1.0 0.929 163 0.4%
30% 222 300.0 0.728 1.0 0.921 149 0.4%
20% 222 300.0 0.679 1.0 0.914 138 0.4%
10% 222 300.0 0.627 1.0 0.904 126 0.4%
Active Idle 222 300.0 0.412 1.0 0.840 76.6 0.6%
Power details for pwr1
