Hewlett-Packard Company ProLiant SL2x170z G6 ssj_ops@100% = 721,235
ssj_ops@100% per JVM = 120,206
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 1, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Jun 17, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     719,520
Calibration 2     723,835
Calibration 3     725,003
ssj_ops@calibrated=724,419
100% 99.6% 724,419 721,235
90% 89.7% 651,977 650,156
80% 79.9% 579,535 579,055
70% 69.9% 507,093 506,182
60% 60.3% 434,652 437,005
50% 50.1% 362,210 362,591
40% 40.2% 289,768 290,938
30% 30.1% 217,326 218,270
20% 20.0% 144,884 144,649
10% 10.2% 72,442 74,067
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant SL2x170z G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL2x170z G6
Form Factor: 1U
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.27 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per chip
Tertiary Cache: 12 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB PC3L-10600E; slots 1 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #586585-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x NC362i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1900
JVM Maximum Heap (MB): 1900
JVM Address Bits: 64
Boot Firmware Version: O34 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sl2x170z-node4.001 119,100
sl2x170z-node4.002 119,424
sl2x170z-node4.003 121,344
sl2x170z-node4.004 120,924
sl2x170z-node4.005 119,603
sl2x170z-node4.006 120,839
ssj_ops@100% 721,235
ssj_ops@100% per JVM 120,206

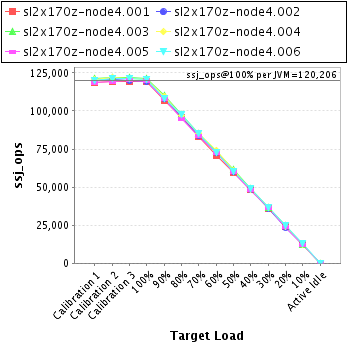

Graph of per-instance results
JVM 'sl2x170z-node4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,758
Calibration 2     119,241
Calibration 3     119,502
ssj_ops@calibrated=119,372
100% 99.8% 119,372 119,100
90% 89.8% 107,435 107,191
80% 80.0% 95,498 95,486
70% 69.6% 83,560 83,065
60% 59.4% 71,623 70,859
50% 50.1% 59,686 59,777
40% 40.3% 47,749 48,128
30% 29.9% 35,812 35,679
20% 20.2% 23,874 24,169
10% 10.1% 11,937 11,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sl2x170z-node4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,084
Calibration 2     120,507
Calibration 3     120,099
ssj_ops@calibrated=120,303
100% 99.3% 120,303 119,424
90% 89.7% 108,272 107,963
80% 80.0% 96,242 96,194
70% 69.6% 84,212 83,732
60% 60.6% 72,182 72,939
50% 50.1% 60,151 60,214
40% 40.0% 48,121 48,165
30% 29.9% 36,091 35,931
20% 19.7% 24,061 23,670
10% 10.1% 12,030 12,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sl2x170z-node4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,570
Calibration 2     121,958
Calibration 3     122,194
ssj_ops@calibrated=122,076
100% 99.4% 122,076 121,344
90% 90.1% 109,868 109,952
80% 80.0% 97,661 97,715
70% 69.9% 85,453 85,318
60% 60.1% 73,246 73,406
50% 50.3% 61,038 61,454
40% 40.4% 48,830 49,331
30% 30.2% 36,623 36,918
20% 20.2% 24,415 24,679
10% 10.2% 12,208 12,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sl2x170z-node4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,793
Calibration 2     121,913
Calibration 3     121,635
ssj_ops@calibrated=121,774
100% 99.3% 121,774 120,924
90% 89.9% 109,596 109,495
80% 79.8% 97,419 97,230
70% 70.2% 85,242 85,537
60% 61.1% 73,064 74,368
50% 50.2% 60,887 61,148
40% 39.8% 48,710 48,424
30% 30.3% 36,532 36,895
20% 19.7% 24,355 23,944
10% 10.3% 12,177 12,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sl2x170z-node4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,602
Calibration 2     119,192
Calibration 3     120,263
ssj_ops@calibrated=119,727
100% 99.9% 119,727 119,603
90% 89.9% 107,755 107,583
80% 79.4% 95,782 95,062
70% 69.5% 83,809 83,254
60% 60.7% 71,836 72,628
50% 50.0% 59,864 59,870
40% 40.1% 47,891 47,952
30% 30.4% 35,918 36,357
20% 19.8% 23,945 23,647
10% 10.2% 11,973 12,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sl2x170z-node4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     119,713
Calibration 2     121,024
Calibration 3     121,310
ssj_ops@calibrated=121,167
100% 99.7% 121,167 120,839
90% 89.1% 109,051 107,972
80% 80.4% 96,934 97,368
70% 70.4% 84,817 85,275
60% 60.1% 72,700 72,806
50% 49.6% 60,584 60,128
40% 40.4% 48,467 48,938
30% 30.1% 36,350 36,491
20% 20.3% 24,233 24,541
10% 10.6% 12,117 12,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
