ZT Systems 1253Ra Datacenter Server SPECpower_ssj2008 = 2,106 overall ssj_ops/watt
Test Sponsor: ZT Systems SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX, USA Test Date: May 28, 2010
Hardware Availability: Aug-2010 Software Availability: Aug-2009 Publication: Jun 23, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 125 22.5
Calibration 2 126 22.5
Calibration 3 127 21.2
100% 126 21.1
90% 121 21.1
80% 117 21.1
70% 111 21.1
60% 105 21.1
50% 99.2 21.1
40% 93.3 21.1
30% 87.7 21.0
20% 81.8 21.1
10% 75.6 21.0
Active Idle 56.6 21.1

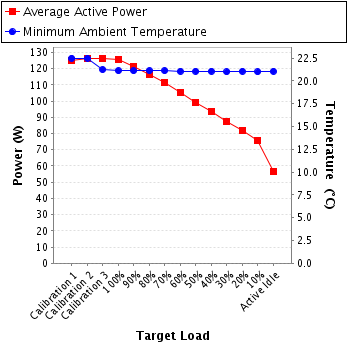

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB53037
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 4048981
Date of Calibration: 07-Apr-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.40.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 0.646 1.0 0.922 125 0.4%
Calibration 2 210 300.0 0.651 1.0 0.923 126 0.4%
Calibration 3 210 300.0 0.653 1.0 0.923 127 0.4%
100% 210 300.0 0.650 1.0 0.922 126 0.4%
90% 210 300.0 0.629 1.0 0.918 121 0.4%
80% 210 300.0 0.607 1.0 0.914 117 0.4%
70% 210 300.0 0.583 1.0 0.908 111 0.5%
60% 210 300.0 0.555 1.0 0.901 105 0.5%
50% 210 300.0 0.528 1.0 0.893 99.2 0.5%
40% 210 300.0 0.502 1.0 0.883 93.3 0.5%
30% 210 300.0 0.478 1.0 0.872 87.7 0.6%
20% 210 300.0 0.452 1.0 0.859 81.8 0.6%
10% 211 300.0 0.427 1.0 0.841 75.6 0.6%
Active Idle 211 300.0 0.346 1.0 0.776 56.6 0.8%

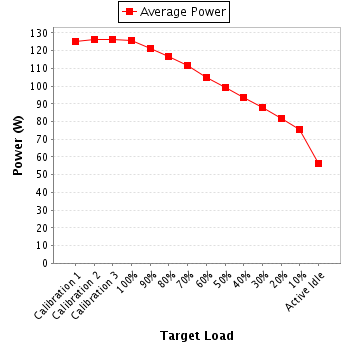

Power details for pwr1
