SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R710 (Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,963 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | May 3, 2010 |
| Hardware Availability: | Jul-2010 | Software Availability: | Sep-2009 | Publication: | May 19, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

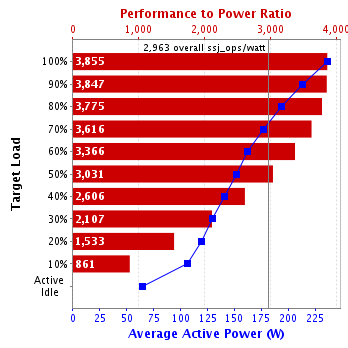

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 910,681 | 236 | 3,855 |
| 90% | 89.8% | 821,276 | 213 | 3,847 |
| 80% | 79.9% | 730,542 | 194 | 3,775 |
| 70% | 70.1% | 641,166 | 177 | 3,616 |
| 60% | 59.8% | 546,855 | 162 | 3,366 |
| 50% | 50.3% | 460,251 | 152 | 3,031 |
| 40% | 40.0% | 365,731 | 140 | 2,606 |
| 30% | 29.9% | 273,925 | 130 | 2,107 |
| 20% | 20.0% | 182,962 | 119 | 1,533 |
| 10% | 10.0% | 91,601 | 106 | 861 |
| Active Idle | 0 | 64.6 | 0 | |
| ∑ssj_ops / ∑power = | 2,963 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge R710 (Intel Xeon X5670, 2.93 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six Core, 2.93 GHz, 12 MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3L-10600R (running at 1066MHz) ECC, Slots A1-A3, B1-B3 populated |
| Power Supply Quantity and Rating (W): | 1 x 570 |
| Power Supply Details: | Dell PN FU100 |
| Disk Drive: | 1 x 50 GB SSD SATA (Dell PN Y949P) |
| Disk Controller: | H200 Integrated |
| # and type of Network Interface Cards (NICs) Installed: | 2 x onboard dual-port gigabit |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver Mode Enabled in OS |
| Operating System (OS): | Windows 2008 Server Enterprise x64 Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 2.1.6 |
| Management Firmware Version: | X09 1.5.0 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge 1950 |
| CPU Description: | Intel Xeon 5160 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 2003 Server Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Jrockit(R) 1.6.0_02 build R26.4.0-63 (32-bit) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Davis Calibration |
| Calibration Label: | 91H648897 |
| Date of Calibration: | 22-Sep-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 236 | 23.6 |
| 90% | 213 | 23.5 |
| 80% | 194 | 23.5 |
| 70% | 177 | 23.5 |
| 60% | 162 | 23.6 |
| 50% | 152 | 23.6 |
| 40% | 140 | 23.7 |
| 30% | 130 | 23.6 |
| 20% | 119 | 23.6 |
| 10% | 106 | 23.6 |
| Active Idle | 64.6 | 23.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 23.5 | 255 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 908,816 | ||
| Calibration 2 | 915,252 | ||
| Calibration 3 | 914,379 | ||
| ssj_ops@calibrated=914,816 | |||
| 100% | 99.5% | 914,816 | 910,681 |
| 90% | 89.8% | 823,334 | 821,276 |
| 80% | 79.9% | 731,853 | 730,542 |
| 70% | 70.1% | 640,371 | 641,166 |
| 60% | 59.8% | 548,889 | 546,855 |
| 50% | 50.3% | 457,408 | 460,251 |
| 40% | 40.0% | 365,926 | 365,731 |
| 30% | 29.9% | 274,445 | 273,925 |
| 20% | 20.0% | 182,963 | 182,962 |
| 10% | 10.0% | 91,482 | 91,601 |
| Active Idle | 0 | 0 | |
