Dell Inc. PowerEdge R610 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 914,076
ssj_ops@100% per JVM = 152,346
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 1, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: May 19, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     915,916
Calibration 2     919,842
Calibration 3     920,180
ssj_ops@calibrated=920,011
100% 99.4% 920,011 914,076
90% 89.7% 828,010 825,506
80% 80.4% 736,009 739,906
70% 70.1% 644,008 644,895
60% 59.6% 552,006 547,883
50% 49.8% 460,005 458,558
40% 40.4% 368,004 371,934
30% 30.1% 276,003 276,664
20% 20.0% 184,002 184,309
10% 9.9% 92,001 91,172
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R610 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R (running at 1066MHz) ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): 1 x 502
Power Supply Details: Dell PN KY091
Disk Drive: 1 x 50 GB SSD SATA (Dell PN Y949P)
Disk Controller: H200 Integrated
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port gigabit
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode Enabled in OS
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.4
Management Firmware Version: X09 1.5.0
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SSOJHFLOP15.001 152,440
WIN-SSOJHFLOP15.002 152,670
WIN-SSOJHFLOP15.003 154,177
WIN-SSOJHFLOP15.004 151,582
WIN-SSOJHFLOP15.005 149,962
WIN-SSOJHFLOP15.006 153,244
ssj_ops@100% 914,076
ssj_ops@100% per JVM 152,346

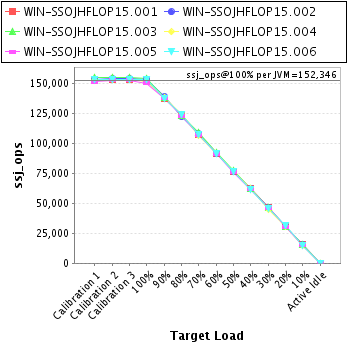

Graph of per-instance results

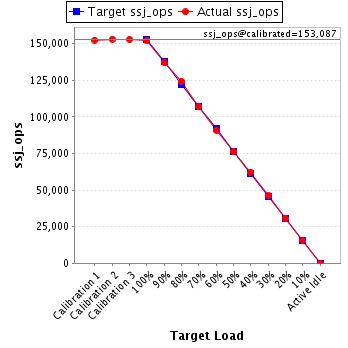

JVM 'WIN-SSOJHFLOP15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,475
Calibration 2     153,148
Calibration 3     153,025
ssj_ops@calibrated=153,087
100% 99.6% 153,087 152,440
90% 89.4% 137,778 136,925
80% 81.1% 122,469 124,189
70% 69.8% 107,161 106,886
60% 59.4% 91,852 90,968
50% 49.8% 76,543 76,309
40% 40.7% 61,235 62,288
30% 30.1% 45,926 46,139
20% 20.0% 30,617 30,612
10% 10.1% 15,309 15,507
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,930
Calibration 2     153,576
Calibration 3     153,492
ssj_ops@calibrated=153,534
100% 99.4% 153,534 152,670
90% 90.1% 138,181 138,394
80% 79.4% 122,827 121,961
70% 70.3% 107,474 107,942
60% 59.4% 92,120 91,170
50% 49.6% 76,767 76,206
40% 40.7% 61,414 62,461
30% 30.3% 46,060 46,512
20% 19.9% 30,707 30,593
10% 10.0% 15,353 15,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,331
Calibration 2     154,805
Calibration 3     154,879
ssj_ops@calibrated=154,842
100% 99.6% 154,842 154,177
90% 89.2% 139,358 138,094
80% 79.3% 123,874 122,834
70% 70.2% 108,390 108,757
60% 59.4% 92,905 91,979
50% 49.7% 77,421 76,951
40% 40.0% 61,937 61,878
30% 30.2% 46,453 46,824
20% 19.8% 30,968 30,732
10% 9.9% 15,484 15,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,967
Calibration 2     152,979
Calibration 3     153,362
ssj_ops@calibrated=153,171
100% 99.0% 153,171 151,582
90% 90.0% 137,854 137,857
80% 81.0% 122,537 124,019
70% 69.6% 107,220 106,644
60% 59.9% 91,903 91,749
50% 50.0% 76,585 76,633
40% 40.7% 61,268 62,282
30% 29.5% 45,951 45,163
20% 20.2% 30,634 30,881
10% 9.8% 15,317 15,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,101
Calibration 2     152,396
Calibration 3     152,208
ssj_ops@calibrated=152,302
100% 98.5% 152,302 149,962
90% 90.2% 137,072 137,325
80% 80.7% 121,842 122,970
70% 70.4% 106,611 107,154
60% 59.8% 91,381 91,018
50% 49.9% 76,151 75,934
40% 40.4% 60,921 61,471
30% 30.3% 45,691 46,145
20% 20.0% 30,460 30,473
10% 9.8% 15,230 14,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SSOJHFLOP15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,112
Calibration 2     152,937
Calibration 3     153,213
ssj_ops@calibrated=153,075
100% 100.1% 153,075 153,244
90% 89.4% 137,767 136,911
80% 81.0% 122,460 123,932
70% 70.2% 107,152 107,512
60% 59.4% 91,845 90,999
50% 50.0% 76,537 76,526
40% 40.2% 61,230 61,554
30% 30.0% 45,922 45,881
20% 20.3% 30,615 31,018
10% 9.8% 15,307 15,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
