SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R610 (Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,938 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | May 1, 2010 |
| Hardware Availability: | Jul-2010 | Software Availability: | Sep-2009 | Publication: | May 19, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

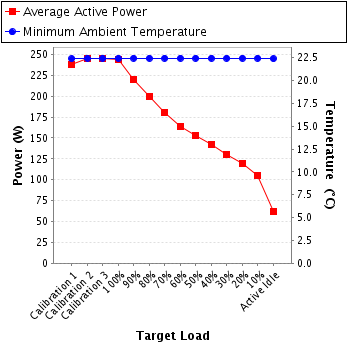

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 238 | 22.4 |
| Calibration 2 | 245 | 22.4 |
| Calibration 3 | 245 | 22.4 |
| 100% | 244 | 22.4 |
| 90% | 220 | 22.4 |
| 80% | 200 | 22.4 |
| 70% | 181 | 22.4 |
| 60% | 164 | 22.4 |
| 50% | 153 | 22.4 |
| 40% | 142 | 22.4 |
| 30% | 130 | 22.4 |
| 20% | 119 | 22.4 |
| 10% | 105 | 22.4 |
| Active Idle | 62.3 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Davis Calibration |
| Calibration Label: | 91H648897 |
| Date of Calibration: | 22-Sep-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |

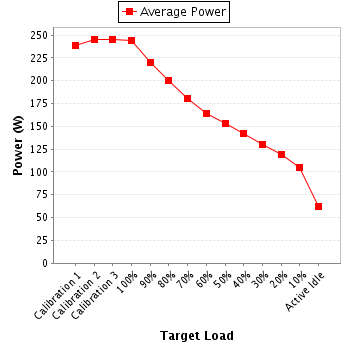

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 1.21 | 2.0 | 0.950 | 238 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.24 | 2.0 | 0.952 | 245 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.24 | 2.0 | 0.952 | 245 | 0.4% |
| 100% | 208 | 300.0 | 1.24 | 2.0 | 0.952 | 244 | 0.4% |
| 90% | 207 | 300.0 | 1.13 | 2.0 | 0.944 | 220 | 0.4% |
| 80% | 207 | 300.0 | 1.03 | 2.0 | 0.936 | 200 | 0.5% |
| 70% | 208 | 300.0 | 0.939 | 1.0 | 0.926 | 181 | 0.3% |
| 60% | 208 | 300.0 | 0.863 | 1.0 | 0.917 | 164 | 0.4% |
| 50% | 208 | 300.0 | 0.810 | 1.0 | 0.909 | 153 | 0.4% |
| 40% | 208 | 300.0 | 0.757 | 1.0 | 0.901 | 142 | 0.4% |
| 30% | 208 | 300.0 | 0.700 | 1.0 | 0.895 | 130 | 0.4% |
| 20% | 208 | 300.0 | 0.644 | 1.0 | 0.889 | 119 | 0.5% |
| 10% | 208 | 300.0 | 0.579 | 1.0 | 0.873 | 105 | 0.5% |
| Active Idle | 208 | 300.0 | 0.410 | 0.5 | 0.731 | 62.3 | 0.5% |
