SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX300 S6 (Intel Xeon X5670) | SPECpower_ssj2008 = 2,900 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Apr 30, 2010 |
| Hardware Availability: | Apr-2010 | Software Availability: | Nov-2009 | Publication: | May 19, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

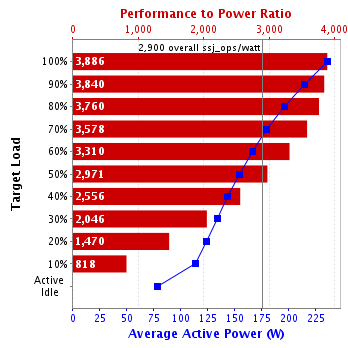

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.9% | 916,072 | 236 | 3,886 |
| 90% | 90.0% | 825,392 | 215 | 3,840 |
| 80% | 80.3% | 736,354 | 196 | 3,760 |
| 70% | 70.1% | 643,150 | 180 | 3,578 |
| 60% | 60.0% | 550,053 | 166 | 3,310 |
| 50% | 50.1% | 459,447 | 155 | 2,971 |
| 40% | 40.1% | 367,267 | 144 | 2,556 |
| 30% | 29.8% | 273,480 | 134 | 2,046 |
| 20% | 19.9% | 182,381 | 124 | 1,470 |
| 10% | 10.1% | 92,593 | 113 | 818 |
| Active Idle | 0 | 78.5 | 0 | |
| ∑ssj_ops / ∑power = | 2,900 | |||
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY TX300 S6 (Intel Xeon X5670) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Hexa-Core, 2.93GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3L-10600E ECC CL9; slots 1A, 1B, 1C, 1D, 1E, 1F populated |
| Power Supply Quantity and Rating (W): | 1 x 800 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-F556-E10 |
| Disk Drive: | 1 x 64GB SSD (Fujitsu S26361-F3298-E64) |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82575EB Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition + SP2 |
| OS Version: | Version 6.0.6002 Service Pack 2 Build 6002 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1550 |
| JVM Maximum Heap (MB): | 1550 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.03A |
| Management Firmware Version: | 3.95A |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 950 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11210208 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 10026886 |
| Date of Calibration: | 23-Feb-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 236 | 22.7 |
| 90% | 215 | 22.7 |
| 80% | 196 | 22.7 |
| 70% | 180 | 22.7 |
| 60% | 166 | 22.7 |
| 50% | 155 | 22.7 |
| 40% | 144 | 22.7 |
| 30% | 134 | 22.7 |
| 20% | 124 | 22.6 |
| 10% | 113 | 22.6 |
| Active Idle | 78.5 | 22.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 22.6 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 921,760 | ||
| Calibration 2 | 918,839 | ||
| Calibration 3 | 915,100 | ||
| ssj_ops@calibrated=916,969 | |||
| 100% | 99.9% | 916,969 | 916,072 |
| 90% | 90.0% | 825,272 | 825,392 |
| 80% | 80.3% | 733,575 | 736,354 |
| 70% | 70.1% | 641,879 | 643,150 |
| 60% | 60.0% | 550,182 | 550,053 |
| 50% | 50.1% | 458,485 | 459,447 |
| 40% | 40.1% | 366,788 | 367,267 |
| 30% | 29.8% | 275,091 | 273,480 |
| 20% | 19.9% | 183,394 | 182,381 |
| 10% | 10.1% | 91,697 | 92,593 |
| Active Idle | 0 | 0 | |
