SPECpower_ssj2008
Host 'WIN-2TX2SGLJBDD' Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AT110 F1 | ssj_ops@100% = 183,161 ssj_ops@100% per JVM = 91,580 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Apr 9, 2010 |
| Hardware Availability: | Dec-2009 | Software Availability: | Jul-2009 | Publication: | May 19, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 183,067 | ||
| Calibration 2 | 183,476 | ||
| Calibration 3 | 184,798 | ||
| ssj_ops@calibrated=184,137 | |||
| 100% | 99.5% | 184,137 | 183,161 |
| 90% | 89.6% | 165,723 | 164,961 |
| 80% | 80.0% | 147,309 | 147,343 |
| 70% | 69.9% | 128,896 | 128,773 |
| 60% | 60.3% | 110,482 | 110,963 |
| 50% | 50.0% | 92,068 | 92,053 |
| 40% | 40.4% | 73,655 | 74,381 |
| 30% | 29.9% | 55,241 | 55,127 |
| 20% | 20.1% | 36,827 | 37,020 |
| 10% | 9.7% | 18,414 | 17,941 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AT110 F1 |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon Processor L3360 |
| CPU Characteristics: | 12M Cache, 2.83 GHz, 1333 MHz FSB |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4.00 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC2-6400E ECC CL5; slots 1A and 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | FSP450-60EP |
| Disk Drive: | 1 x 320 GB 7200RPM SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82566DM-2 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | PS2 |
| Mouse: | USB |
| Monitor: | Direct |
| Optical Drives: | No |
| Other Hardware: | N/A |
| Software | |
|---|---|
| Power Management: | Balance power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition SP2 |
| OS Version: | Version 6.0.6002 Service Pack 2 Build 6002 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
| JVM Command-line Options: | --Xms1500m -Xmx1500m -Xns1300m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [0x3,0xC] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | none |
| Management Firmware Version: | none |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | None |

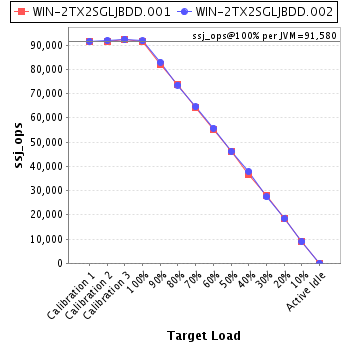

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-2TX2SGLJBDD.001 | 91,430 |
| WIN-2TX2SGLJBDD.002 | 91,731 |
| ssj_ops@100% | 183,161 |
| ssj_ops@100% per JVM | 91,580 |

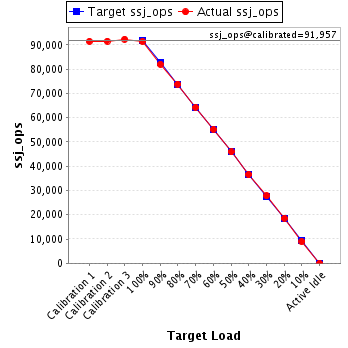

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 91,501 | ||
| Calibration 2 | 91,549 | ||
| Calibration 3 | 92,365 | ||
| ssj_ops@calibrated=91,957 | |||
| 100% | 99.4% | 91,957 | 91,430 |
| 90% | 89.2% | 82,761 | 82,046 |
| 80% | 80.3% | 73,565 | 73,840 |
| 70% | 69.9% | 64,370 | 64,291 |
| 60% | 60.1% | 55,174 | 55,254 |
| 50% | 49.9% | 45,978 | 45,914 |
| 40% | 39.8% | 36,783 | 36,570 |
| 30% | 30.2% | 27,587 | 27,753 |
| 20% | 20.2% | 18,391 | 18,619 |
| 10% | 9.8% | 9,196 | 8,979 |
| Active Idle | 0 | 0 | |

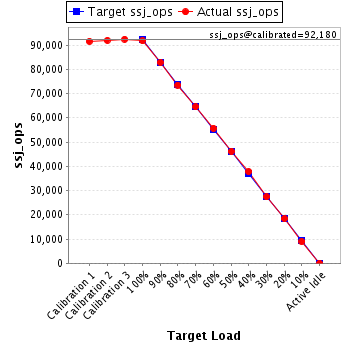

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 91,566 | ||
| Calibration 2 | 91,927 | ||
| Calibration 3 | 92,433 | ||
| ssj_ops@calibrated=92,180 | |||
| 100% | 99.5% | 92,180 | 91,731 |
| 90% | 89.9% | 82,962 | 82,915 |
| 80% | 79.7% | 73,744 | 73,502 |
| 70% | 70.0% | 64,526 | 64,481 |
| 60% | 60.4% | 55,308 | 55,709 |
| 50% | 50.1% | 46,090 | 46,140 |
| 40% | 41.0% | 36,872 | 37,812 |
| 30% | 29.7% | 27,654 | 27,374 |
| 20% | 20.0% | 18,436 | 18,401 |
| 10% | 9.7% | 9,218 | 8,962 |
| Active Idle | 0 | 0 | |
