SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) | SPECpower_ssj2008 = 3,008 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Apr 15, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Mar-2010 | Publication: | May 13, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

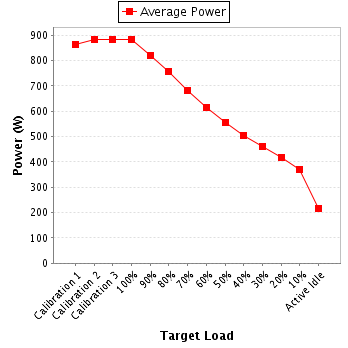

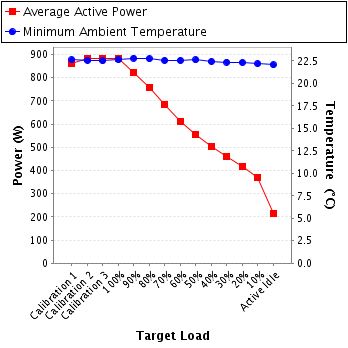

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 863 | 22.6 |
| Calibration 2 | 883 | 22.6 |
| Calibration 3 | 884 | 22.5 |
| 100% | 883 | 22.6 |
| 90% | 822 | 22.8 |
| 80% | 756 | 22.8 |
| 70% | 684 | 22.6 |
| 60% | 613 | 22.6 |
| 50% | 555 | 22.6 |
| 40% | 504 | 22.4 |
| 30% | 460 | 22.4 |
| 20% | 419 | 22.3 |
| 10% | 369 | 22.2 |
| Active Idle | 216 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705449 |
| Date of Calibration: | 10-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supplies |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 4.21 | 5.0 | 0.985 | 863 | 0.3% |
| Calibration 2 | 208 | 300.0 | 4.32 | 5.0 | 0.985 | 883 | 0.3% |
| Calibration 3 | 208 | 300.0 | 4.32 | 5.0 | 0.985 | 884 | 0.3% |
| 100% | 208 | 300.0 | 4.32 | 5.0 | 0.985 | 883 | 0.3% |
| 90% | 208 | 300.0 | 4.02 | 5.0 | 0.983 | 822 | 0.3% |
| 80% | 208 | 300.0 | 3.70 | 5.0 | 0.982 | 756 | 0.3% |
| 70% | 208 | 300.0 | 3.35 | 5.0 | 0.981 | 684 | 0.4% |
| 60% | 208 | 300.0 | 3.01 | 5.0 | 0.977 | 613 | 0.4% |
| 50% | 208 | 300.0 | 2.73 | 5.0 | 0.973 | 555 | 0.4% |
| 40% | 208 | 300.0 | 2.49 | 5.0 | 0.970 | 504 | 0.4% |
| 30% | 208 | 300.0 | 2.29 | 5.0 | 0.965 | 460 | 0.5% |
| 20% | 208 | 300.0 | 2.09 | 5.0 | 0.960 | 419 | 0.5% |
| 10% | 208 | 300.0 | 1.86 | 2.0 | 0.950 | 369 | 0.3% |
| Active Idle | 208 | 300.0 | 1.15 | 2.0 | 0.902 | 216 | 0.5% |
